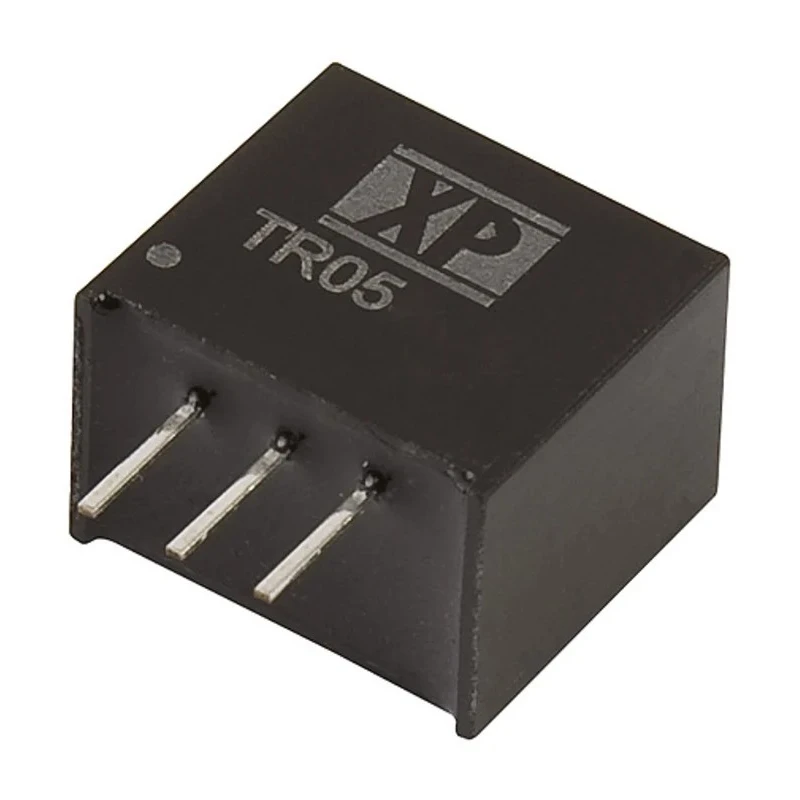

XP Power DC/DC Switching Regulator Through Hole 3.3V DC Output 28V Input 500mA 1.65W TR05S3V3

Free Delivery in India | Lowest Global Shipping Charges

XP Power DC/DC Switching Regulator Through Hole 3.3V DC Output 28V Input 500mA 1.65W TR05S3V3

Name: XP Power DC/DC Switching Regulator Through Hole 3.3V DC Output 28V Input 500mA 1.65W TR05S3V3
Brand: XP Power
SKU: 189776
Price: 6.86 USD
Availability: InStock



Category Switching Regulators Brand XP Power Condition New

Specifications

Country of Origin	Taiwan
Brand	XP Power
Power	1.65W
Efficiency	89%
Length	11.68mm
Model	TR05S3V3
Depth	10.15mm
Gross Weight	1.8g
Width	7.5mm
Mount Type	Through Hole
Series	TR
Output Current	500mA
Maximum Operating Temperature	85°C
Package Type	SIP
Load Regulation	±0.8 %
Minimum Operating Temperature	-40°C
MTBF	4mH
Number of outputs	1
Ripple and Noise	60mV Pk-Pk
Maximum Input Voltage	28V dc
Line Regulation	±0.5 %
Standards/Approvals	RoHS
Minimum Input Voltage	4.5V
Output Voltage 1	3.3V dc

Key Features

This switching regulator provides a power rating of 1.65 Watts ensuring efficient voltage conversion.
It features high efficiency up to 89% minimizing power loss during operation.
Designed in a 3-pin SIP (Single Inline Package) for easy through hole mounting on PCBs.
Operates with a wide input voltage range of 4.5V to 28V DC suitable for various applications.
Continuous short-circuit protection enhances device safety and reliability.
Wide operating temperature range from -40°C to 85°C supports industrial environments.
Low ripple and noise of 60mV peak-to-peak ensures stable output voltage.
Compact dimensions measuring 11.68mm length, 7.5mm width, and 10.15mm depth save PCB space.

Product Description

XP Power TR05S3V3 is a high-quality DC/DC switching regulator designed for precise voltage regulation in electronic and industrial applications. Featuring a 3.3V DC output voltage and 500mA output current, it supports efficient power conversion with a power rating of 1.65 Watts.

This device is housed in a standard 3-pin SIP through hole package, enabling straightforward PCB mounting. Its robust design includes continuous short-circuit protection, ensuring long-term reliability under demanding conditions.

With an input voltage range from 4.5V to a maximum of 28V DC, the TR05S3V3 is adaptable to various power supply configurations. It operates efficiently at up to 89% efficiency while maintaining low ripple and noise levels of 60mV peak-to-peak, which is critical for sensitive electronic circuits.

The regulator functions reliably across a wide temperature range from -40°C to 85°C, making it suitable for industrial, manufacturing, and laboratory environments. Its compact dimensions (11.68mm by 7.5mm by 10.15mm) support space-constrained designs.

This product complies with RoHS standards, reflecting environmentally responsible manufacturing. Provides regulated 3.3V output at 500mA current capacity. Industry standard through hole SIP package for easy PCB integration.

Continuous short-circuit protection for enhanced safety. Wide operating temperature range for industrial applications. High efficiency minimizes power loss and heat generation. Low output ripple and noise for stable circuit operation.

Wide input voltage range supports versatile power sources. Compact size allows use in limited space assemblies. RoHS compliant ensuring adherence to environmental standards.

This DC/DC Switching Regulator is well suited for use in power supplies, industrial electronic equipment, telecommunications, and embedded systems. Its robust design combined with high performance makes it an essential component for precise voltage regulation applications.
