XP Power DC/DC Switching Regulator Through Hole 5V DC Output Voltage 28V DC Input 2.5W Power TR05S05

Free Delivery in India | Lowest Global Shipping Charges

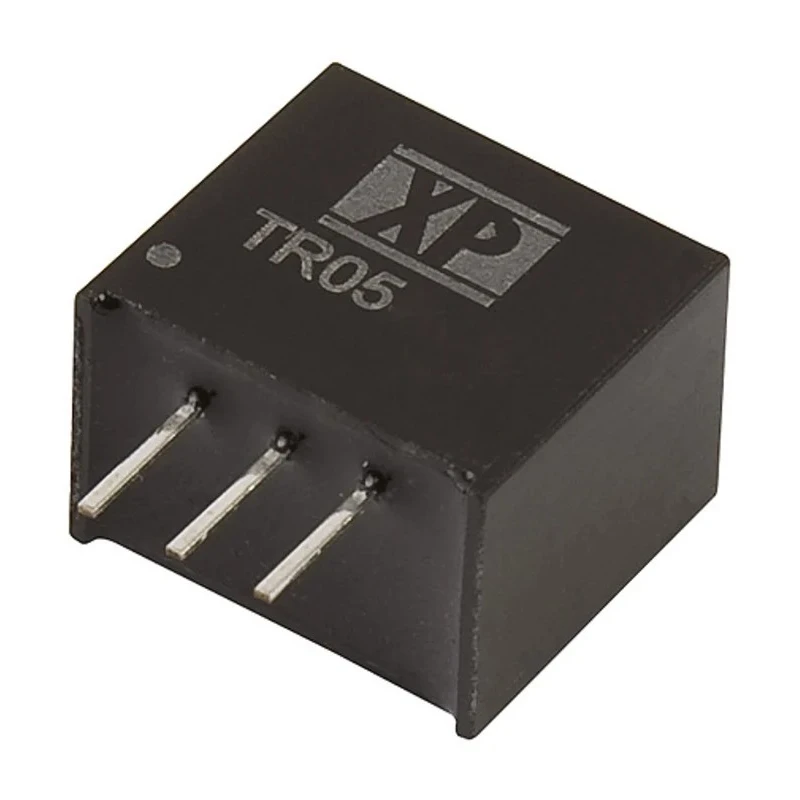

XP Power DC/DC Switching Regulator Through Hole 5V DC Output Voltage 28V DC Input 2.5W Power TR05S05

Name: XP Power DC/DC Switching Regulator Through Hole 5V DC Output Voltage 28V DC Input 2.5W Power TR05S05
Brand: XP Power
SKU: 189768
Price: 5.98 USD
Availability: InStock



Category Switching Regulators Brand XP Power Condition New

Specifications

Country of Origin	Taiwan
Brand	XP Power
Power	2.5W
Efficiency	92%
Length	11.68mm
Model	TR05S05
Depth	10.15mm
Gross Weight	1.8g
Width	7.5mm
Mount Type	Through Hole
Series	TR
Output Current	500mA
Maximum Operating Temperature	85°C
Package Type	SIP
Load Regulation	±0.8 %
Minimum Operating Temperature	-40°C
MTBF	4mH
Number of outputs	1
Ripple and Noise	60mV Pk-Pk
Maximum Input Voltage	28V dc
Line Regulation	±0.5 %
Standards/Approvals	RoHS
Minimum Input Voltage	7V
Output Voltage 1	5V dc

Key Features

Supports a maximum input voltage of 28V DC for versatile applications.
Delivers stable 5V DC output at 500mA current capacity.
High efficiency up to 92% ensures minimal power loss.
Through hole mount type facilitates secure PCB installation.
Operating temperature range from -40°C to 85°C for reliability.
Compact SIP package measuring 11.68mm length and 7.5mm width.
Includes continuous short-circuit protection for safety.
Low ripple and noise of 60mV peak to peak enhances signal integrity.

Product Description

XP Power TR05S05 is a high reliability DC/DC switching regulator designed for electronic components requiring a steady 5V DC output voltage from input voltages up to 28V DC. This through hole SIP package regulator delivers 2.5 watts of power at an output current of 500mA, making it suitable for a range of voltage converter applications in industrial and commercial electronics.

Featuring efficiency up to 92% and continuous short-circuit protection, the TR series ensures robust performance in demanding environments. Its operating temperature range from -40°C to 85°C supports use in harsh conditions. Compact dimensions of 11.68mm length, 7.5mm width, and 10.15mm depth enable dense circuit board layouts.

This switching regulator provides line regulation of ±0.5% and load regulation of ±0.8%, with low ripple and noise at 60mV peak to peak, ensuring clean and stable output suitable for sensitive electronic devices.

Applications include power supplies for industrial equipment, consumer electronics, instrumentation, and telecommunications. The device is pin compatible with LM78MXX linear regulators but offers greater efficiency through switching technology.

Maximum input voltage 28V DC supports various power supply designs. Output voltage stabilized at 5V DC for regulated power output needs. High efficiency operation reduces heat and power wastage. Through hole mounting ensures secure attachment to printed circuit boards.

Durable construction enables performance in wide temperature ranges. RoHS compliant manufacturing ensures environmental safety.

Choose the XP Power TR05S05 DC/DC Switching Regulator for reliable, efficient voltage conversion in industrial, laboratory, and commercial electronics applications. Browse further voltage converters and Switching Regulators on EnvMart.
