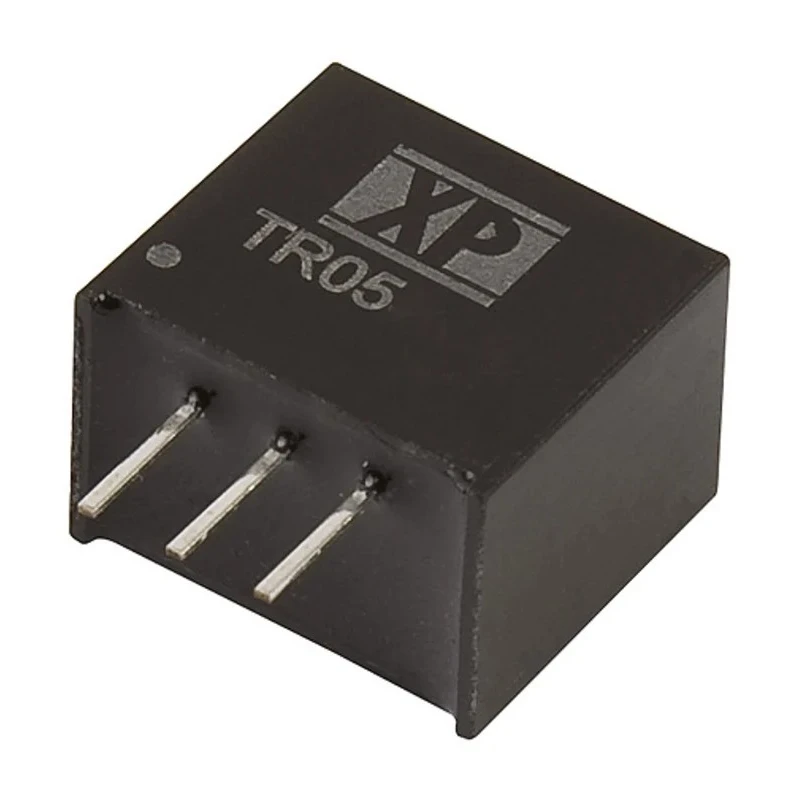

XP Power DC/DC Switching Regulator, Through Hole Mount, 5V DC Output Voltage, 28V DC Input Voltage, 500mA Output TR05S05

XP Power TR05S05 is a reliable DC/DC switching regulator designed for electronic components requiring efficient voltage conversion with a 5V DC output. This through hole mount device is housed in a SIP package that supports easy PCB insertion and soldering, ideal for various industrial and commercial applications.

The regulator supports a broad input voltage range from 7V DC to a maximum of 28V DC, allowing flexibility in different power supply scenarios. Its continuous short-circuit protection enhances operational safety, preventing damage under fault conditions.

Operating within a temperature range of -40°C to 85°C, the TR05S05 ensures robust performance even in harsh environments, suitable for applications in power supplies, instrumentation, industrial controls, and communication equipment.

With an efficiency rating of up to 92%, this unit minimizes power loss and heat generation. The low ripple and noise level of 60mV peak-to-peak ensures clean output voltage ideal for sensitive electronic circuits.

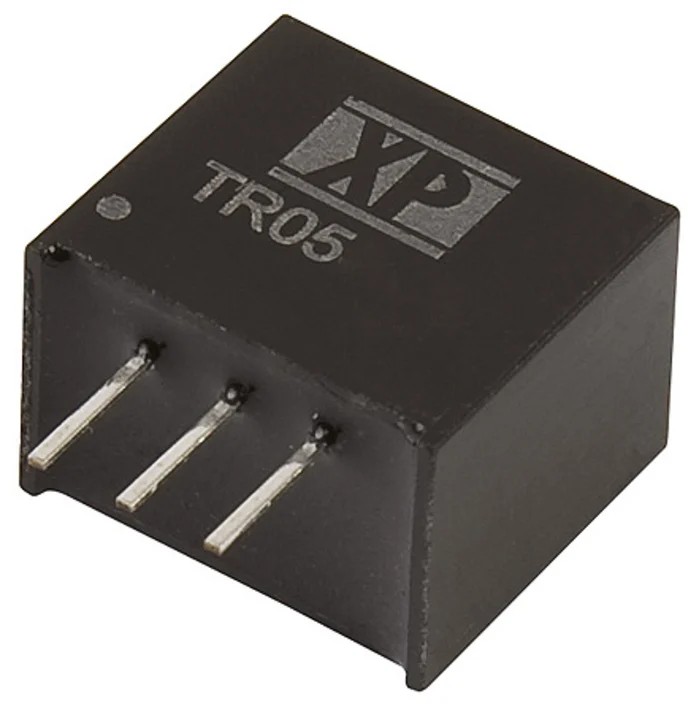

The SIP package measures 11.68mm in length, 7.5mm in width, and 10.15mm in depth, providing a compact solution with a weight of 1.8 grams. It features industry standard pin compatibility, easing integration with existing LM78MXX type regulators.

Provides efficient DC/DC voltage regulation with up to 92% efficiency. Features a wide input voltage range up to 28V DC and minimum input of 7V DC. Operates reliably between -40°C to 85°C ambient temperature. Includes continuous short-circuit protection for enhanced durability.

Compact SIP package with dimensions 11.68mm length, 7.5mm width, 10.15mm depth. Low ripple and noise of 60mV peak to peak ensures signal stability. Load regulation accuracy of ±0.8% and line regulation of ±0.5%. Industry standard pin compatible with LM78MXX regulators.

High mean time between failures (MTBF) rating of 4 million hours. Manufactured in Taiwan, Province Of China complying with RoHS standards.

This DC/DC switching regulator is ideal for use in industrial, laboratory, communication, and commercial power supply applications where stable and efficient voltage conversion is critical. Its robust design and protective features make it a dependable choice for engineers and technicians.
