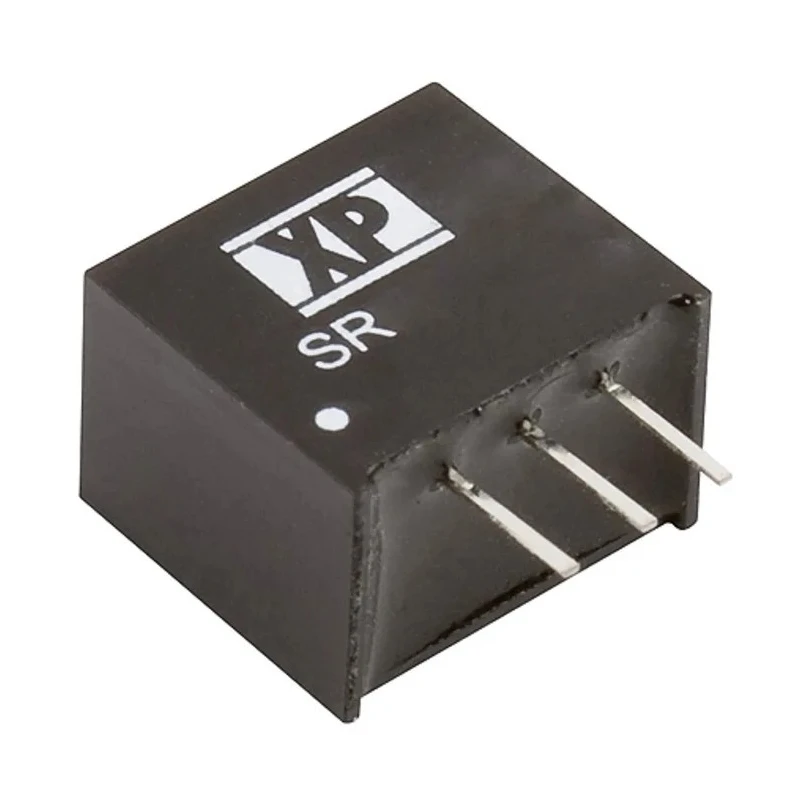

XP Power DC/DC Switching Regulator, Through Hole, 12V DC Output Voltage, 34V DC Maximum Input Voltage, 500mA Output SR05S12

XP Power SR05S12 DC/DC Switching Regulator is a highly reliable electronic component designed for precision voltage regulation in industrial and consumer electronics applications. It provides a fixed 12V DC output voltage from a variable input voltage supply up to 34V DC, with a maximum output current of 500mA, making it ideal for power management in compact circuits.

This device features a through-hole SIP package, facilitating easy integration into printed circuit boards. Its wide operating temperature range from -40°C to 85°C ensures stable performance across challenging environmental conditions, suitable for industrial, laboratory, and commercial electronics use.

The SR series includes continuous short circuit protection and maintains an impressive efficiency of 96%, reducing power losses and thermal buildup. It features a low ripple and noise of just 60mV peak-to-peak, ensuring clean power delivery to sensitive electronic components.

Its compact physical dimensions (11.68mm length, 7.5mm width, 10.15mm depth) and light weight (1.8g) enable space-saving designs without compromising performance. The regulator complies with RoHS standards, underscoring its environmental safety credentials.

Typical applications include power supply design for instrumentation, communications equipment, industrial control systems, and embedded devices where stable DC voltage conversion is critical. The high MTBF value indicates long-term reliability and durability in continuous operation scenarios.

Output voltage is tightly regulated at 12 volts DC. Delivers a maximum output current of 500 milliamps. Operates efficiently with up to 96% efficiency. Designed for through-hole PCB mounting in a SIP package. Wide input voltage range up to 34 volts DC maximum.

Supports operating temperatures from -40°C to 85°C. Features continuous short circuit protection for reliable operation. Compact dimensions: 11.68mm length, 7.5mm width, and 10.15mm depth. Low ripple and noise of 60 millivolts peak-to-peak.

High reliability with an MTBF rating of 4.5 million hours.

XP Power's SR05S12 is suitable for professionals designing power conversion circuits requiring dependable, efficient voltage regulation. Explore more power management components and Switching Regulators on EnvMart for your project needs.
