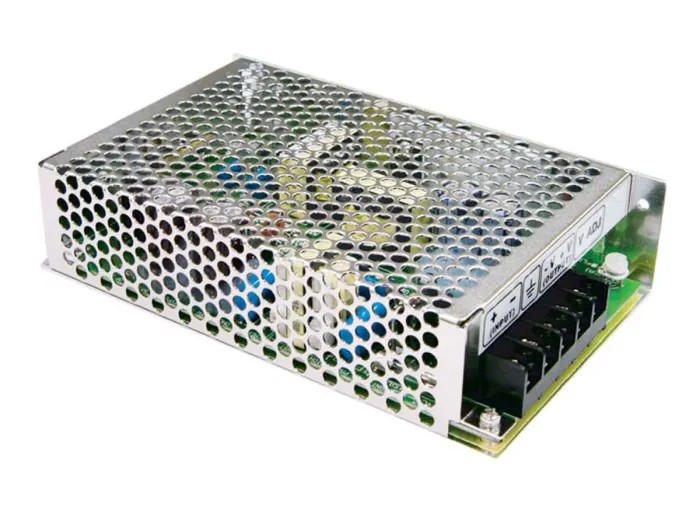

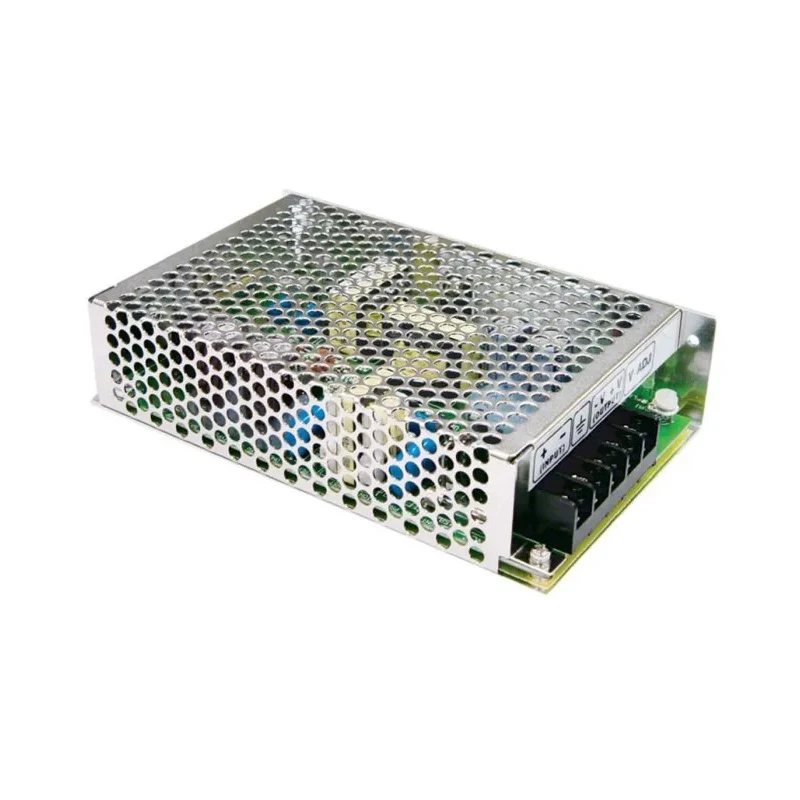

MEAN WELL Enclosed Regulated Isolated DC-DC Converter 24V DC Output, 72V DC Maximum Input, 2.1A Output Current SD-50C-24

MEAN WELL SD-50C-24 is an enclosed, regulated, isolated DC-DC converter designed for applications requiring reliable 24V DC output voltage from a wide input voltage range of 36V to 72V DC. It supports an output current of 2.1A and chassis mount installation, making it suitable for industrial, power supply, and control systems.

Constructed with high reliability and efficiency, this converter features an efficiency of 83%, reducing power loss and thermal stress. It offers an adjustable output voltage range of 23V to 30V, allowing for tailored voltage levels to suit diverse applications. The device is protected against short circuits, overload, and overvoltage conditions, enhancing system safety and durability.

The converter includes a 1.5kV AC isolation rating between input and output, providing electrical isolation required for noise reduction and safety compliance. It operates efficiently within a temperature range of -10°C to 60°C, accompanied by a robust MTBF of over 3 million hours, ensuring dependable long-term performance.

With compact dimensions of 159mm length, 97mm width, and 38mm depth, and a weight of 430g, this unit offers easy integration into chassis-mounted power supply installations. The product complies with EAC and EN standards, suitable for industrial and commercial electronic power conversion applications.

Supports nominal output voltage of 24V DC at 2.1A output current. Wide input voltage range between 36V and 72V DC. Chassis mount design for secure installation. High efficiency of 83% to minimize energy loss. Low ripple and noise output at 150mV peak-to-peak enhances signal quality.

Adjustable output voltage from 23V to 30V for flexible use cases. Short circuit, overload, and overvoltage protected for safety. 1.5kV AC isolation voltage for noise immunity and safety compliance. Operating temperature range from -10°C to 60°C permits broad industrial usage.

MTBF of 3,293,100 hours ensures reliable operation.

This MEAN WELL DC-DC Converter is ideal for industrial power supply systems, automation, and equipment that require isolated DC power with precise voltage regulation and high reliability. It is well-suited for applications including manufacturing machinery, HVAC controls, instrumentation, and commercial electronics.
