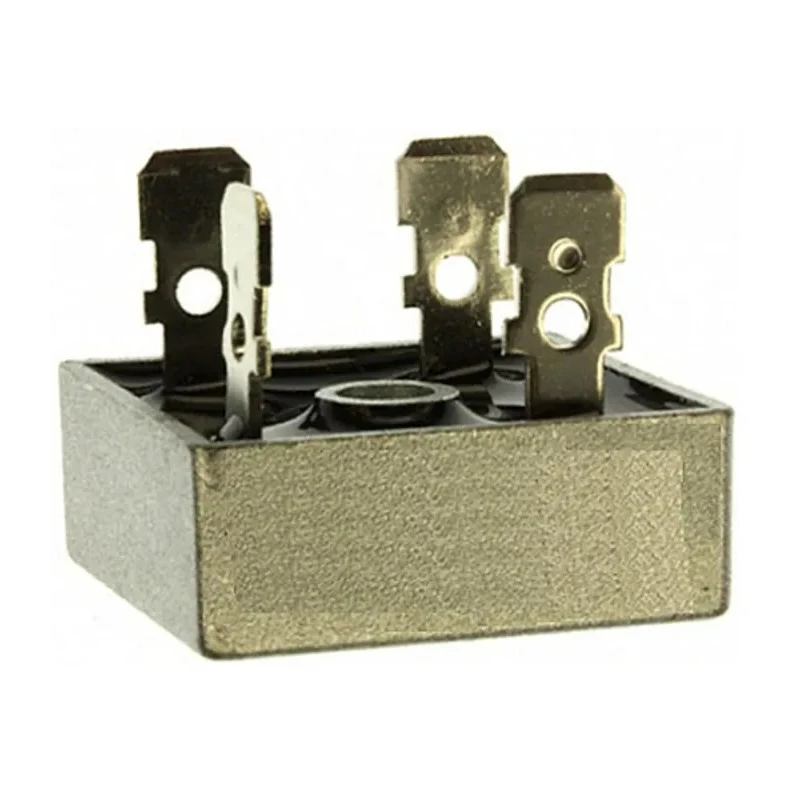

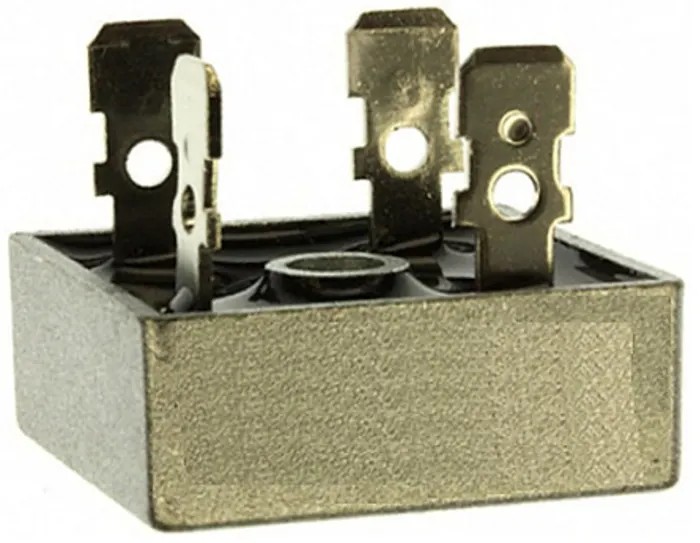

HY Electronic Corp Bridge Rectifier 600 V 400 A 4-Pin Single KBPC2506

HY Electronic Corp KBPC2506 Bridge Rectifier 600 V 400 A 4-Pin Single is a silicon bridge rectifier designed for AC to DC power conversion in a variety of electronic and electrical equipment. This device is built with a KBPC type package featuring through-hole mounting, making it suitable for printed circuit boards and discrete semiconductor applications.

The rectifier supports a peak reverse repetitive voltage (VRRM) of 600 V and a forward current (IF) of 25 A, meeting demands for medium power rectification. The device handles peak non-repetitive forward surge currents of up to 400 A, enabling it to withstand transient overloads safely. Designed for operation within -55°C to 150°C ambient temperatures, it assures reliable performance in industrial or commercial environments.

With four pins and a single configuration, the KBPC2506 provides straightforward installation and compatibility with various circuit designs. Its materials are U/L recognized, and the device includes a 0.25 inch solder FAST ON terminal setup for secure electrical contact. Low forward voltage drop (1.1 V) and minimal peak reverse leakage current (10 μA) contribute to efficient power handling and reduced heat generation.

The bridge rectifier incorporates an electrically isolated base rated to 2000 V, providing essential safety measures to protect equipment and operators. Its compact dimensions of 28.8 mm by 28.8 mm by 11.23 mm ensure it fits within limited spaces without compromising functionality.

This product is manufactured in China and is well-suited for industrial, manufacturing, laboratory, or electronic assembly applications requiring stable and efficient bridge rectifiers.

This bridge rectifier has a peak reverse repetitive voltage of 600 V ensuring high voltage tolerance. It supports a forward current of 25 A and peak surge current of up to 400 A for surge overloads. Operating temperature ranges from -55°C to 150°C allowing for robust performance in varied conditions.

The device features a single configuration with 4 pins suitable for circuit integration. Constructed with U/L recognized materials for safety and durability. Dimensions: length 28.8 mm, width 28.8 mm, and height 11.23 mm ensure compact installation.

Designed with 0.25 inch solder FAST ON terminals for efficient electrical connections. Peak forward voltage of 1.1 V and low peak reverse current of 10 μA optimize electrical efficiency. This model has an electrically isolated base rated at 2000 V providing enhanced safety and insulation.

Manufactured in China and intended for use in electronic power applications requiring bridge rectifiers. Explore more Bridge Rectifier options at EnvMart for your industrial and commercial electronics projects.
