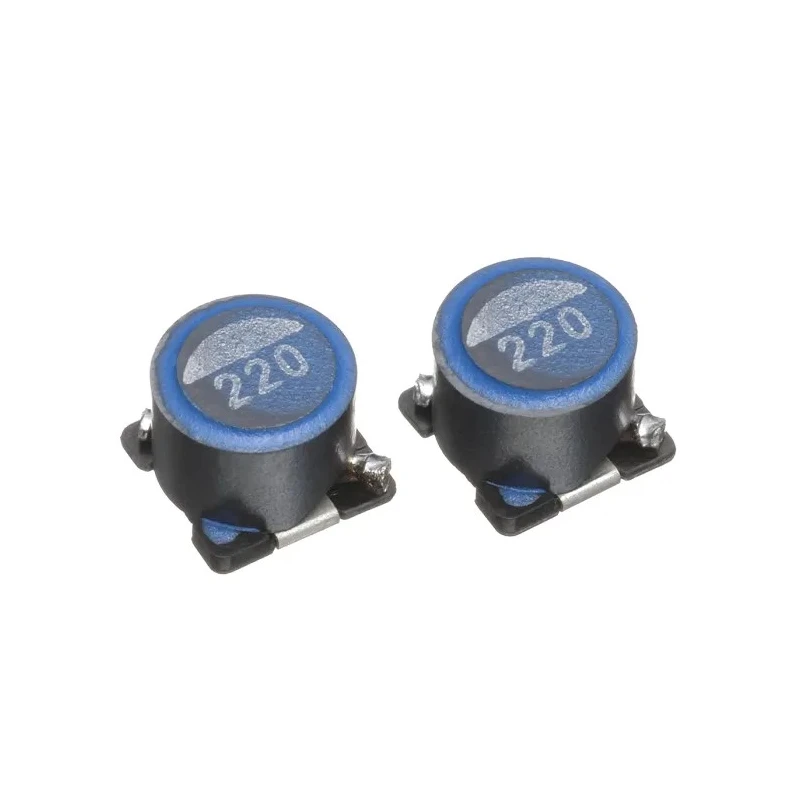

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 22 μH ±20% 1.34 A Idc SLF7045T-220MR90-PF
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 7mm |
| Brand | TDK |
| Height | 4.5mm |
| Length | 7mm |
| Model | SLF7045T-220MR90-PF |
| Depth | 7mm |
| Packaging | Tape & Reel |
| Series | SLF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 7045 |
| Maximum DC Current | 1.34A |
| Pin Count | 2 |
| Maximum DC Resistance | 0.061Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Inductor Construction | Wirewound |
Key Features
- Includes robust magnetic shielding for EMC reduction.
- Compact 7045 package size with dimensions 7mm x 7mm x 4.5mm (LxWxH).
- Constructed with ferrite core and wirewound inductor design for stability.
- Operates reliably in temperatures from -40°C to 105°C.
- Features solder termination style suitable for surface mount PCB assembly.
- Maximum DC resistance of 0.061 Ω ensures efficient performance.
- Compliant with RoHS environmental standards for safety and sustainability.
- Package supplied as tape & reel facilitating manufacturing efficiency.
Product Description
TDK SLF7045T-220MR90-PF is a shielded wirewound surface mount inductor designed with a ferrite core, delivering a nominal inductance of 22 μH with a tolerance of ±20%. It supports a maximum DC current of 1.34 A, making it suitable for various electronic applications requiring effective EMI suppression and stable inductance characteristics.
The inductor is housed in a 7045 package with dimensions of 7mm length, 7mm depth, and 4.5mm height, enabling low-profile placement on compact circuit boards. The wirewound construction combined with ferrite core material offers high magnetic stability and low core losses.
It features magnetic shielding to reduce electromagnetic interference and complies with RoHS standards to ensure environmentally friendly production. The operating temperature range spans from -40°C up to 105°C, allowing for durable performance in harsh conditions.
The termination style is solder, optimized for surface mount technology (SMT) assembly on printed circuit boards, and the product is supplied in tape and reel packaging for efficient automated insertion during manufacturing.
This TDK series SLF7045 inductor is widely used in electronic devices such as portable telephones, personal computers, hard disk drives, and other electronic equipment requiring high reliability and electromagnetic compatibility.
Includes robust magnetic shielding for EMC reduction. Compact 7045 package size with dimensions 7mm x 7mm x 4.5mm (LxWxH). Constructed with ferrite core and wirewound inductor design for stability. Operates reliably in temperatures from -40°C to 105°C.
Features solder termination style suitable for surface mount PCB assembly. Maximum DC resistance of 0.061 Ω ensures efficient performance. Compliant with RoHS environmental standards for safety and sustainability. Package supplied as tape & reel facilitating manufacturing efficiency.
Ideal for applications in portable telephones, computers, hard disk drives, and electronic equipment. Explore more Surface Mount Inductors and electronic components at EnvMart’s Electronics & Electricals category for reliable parts for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a nominal inductance of 22 μH with a tolerance of ±20%.
It supports a maximum DC current of 1.34 A.
The dimensions of the package are 7mm in length, 7mm in depth, and 4.5mm in height.
It operates reliably in temperatures ranging from -40°C to 105°C.
The maximum DC resistance is 0.061 Ω, ensuring efficient performance.
It is constructed with a ferrite core, which contributes to its stability and performance.
It features a solder termination style suitable for surface mount PCB assembly.
The inductor is supplied in tape and reel packaging, facilitating efficient automated insertion during manufacturing.
Yes, it is compliant with RoHS environmental standards for safety and sustainability.
This inductor is widely used in electronic devices such as portable telephones, personal computers, and hard disk drives.
The inductor has a pin count of 2.
It belongs to the SLF series of inductors.
