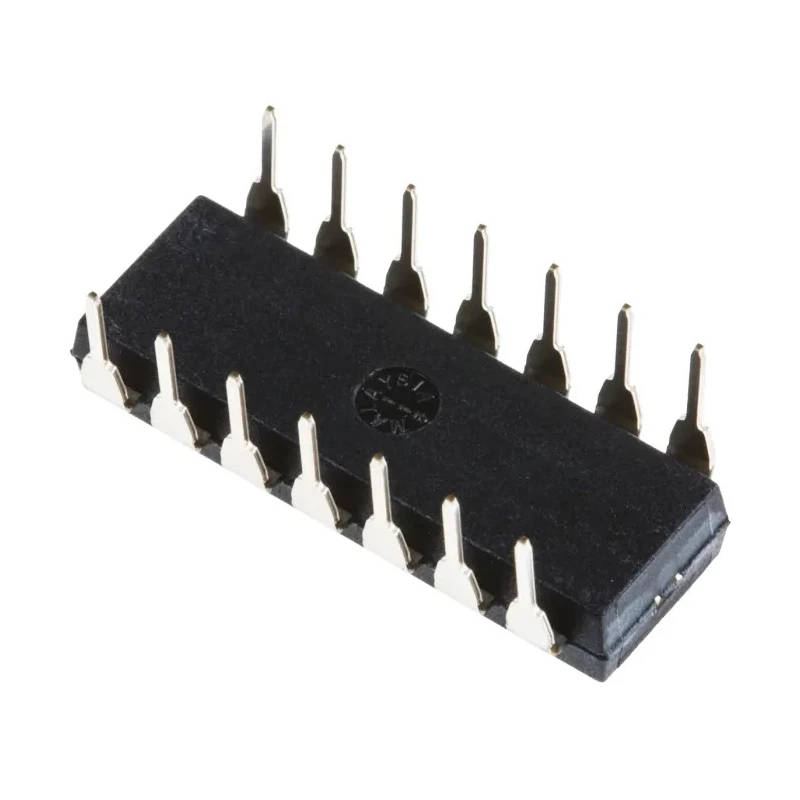

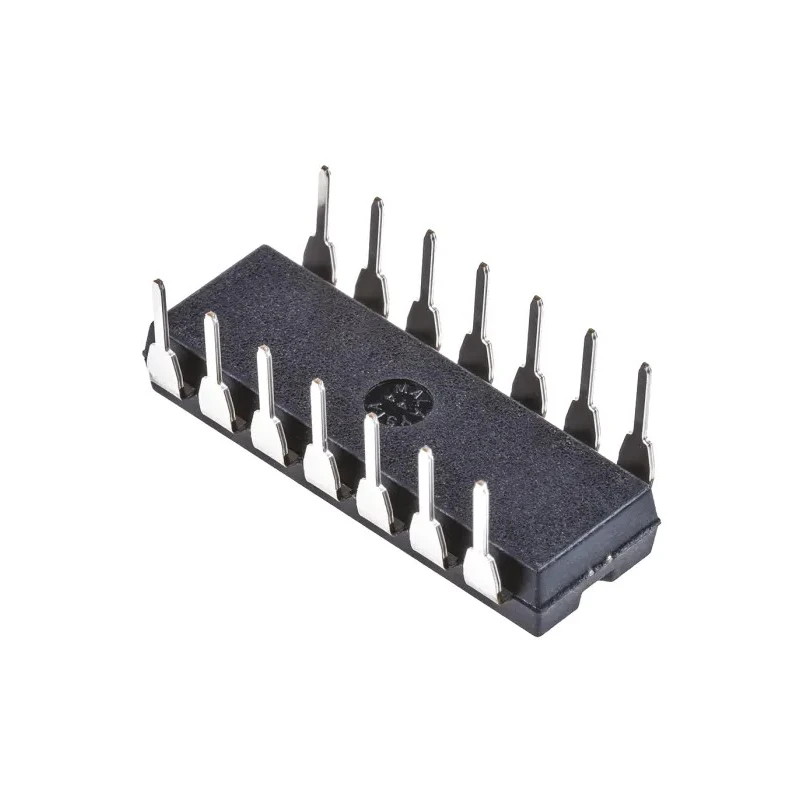

Texas Instruments Instrumentation Amplifier 2 mV Offset 1 MHz 14-Pin 6.5 mA PDIP PGA202KP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | PGA202KP |
| Mount Type | Through Hole |
| Series | PGA202 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Pin Count | 14 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 6V |
| Supply Current | 6.5mA |
| GBP - Gain Bandwidth Product | 1MHz |
| Vos - Input Offset Voltage | 2 mV |
| Slew Rate | 15V/μs |
| CMRR - Common Mode Rejection Ratio | 80dB |
Key Features
- Single channel instrumentation amplifier designed for precision signal processing.
- Operates with supply voltage range from 6 V to 18 V.
- Features 14-pin PDIP package suitable for through-hole mounting.
- Low supply current of 6.5 mA ensures efficient power consumption.
- Achieves common mode rejection ratio (CMRR) of 80 dB for noise reduction.
- Input offset voltage of 2 mV supports accurate signal amplification.
- Wide operating temperature range from 0°C to 70°C ensures reliability.
- Slew rate of 15 V/μs for fast signal response.
Product Description
Texas Instruments PGA202KP is a high performance, single channel instrumentation amplifier with a gain bandwidth product of 1 MHz. It is designed with a 14-pin PDIP package to support through-hole mounting applications requiring precise amplification of low-level signals. The device operates over a wide supply voltage range of 6 V to 18 V with a low supply current of 6.5 mA, making it suitable for power-sensitive industrial and electronic designs.
Featuring an input offset voltage of 2 mV and a common mode rejection ratio (CMRR) of 80 dB, the PGA202KP amplifier ensures accurate and stable signal processing in noisy environments. The slew rate of 15 V/μs enables fast and accurate response to signal changes.
This instrumentation amplifier is reliable over an operating temperature range of 0°C to 70°C, making it suitable for various industrial, laboratory, and electronic applications such as measurement instrumentation, data acquisition systems, and medical equipment.
Its programmable gain architecture allows the gain to be configured via hardware pins, enabling flexible use in precision amplification circuits and signal conditioning. Single channel instrumentation amplifier for precise low-level signal amplification.
Wide supply voltage from 6 V to 18 V with low power consumption. 14-pin PDIP package designed for through-hole mounting. High common mode rejection ratio (80 dB) minimizes noise interference. Fast slew rate of 15 V/μs for quick signal response.
Operating temperature range 0°C to 70°C for industrial reliability.
Choose Texas Instruments PGA202KP for accurate, low-noise, and programmable amplification in critical electronic and industrial signal processing systems. Explore EnvMart for a wide range of semiconductor components and Instrumentation Amplifiers from leading global brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PGA202KP has a gain bandwidth product of 1 MHz, allowing for precise signal amplification in various applications.
It operates within a supply voltage range of 6 V to 18 V, making it versatile for different circuit requirements.
The input offset voltage is 2 mV, which supports accurate signal amplification.
The common mode rejection ratio (CMRR) is 80 dB, which helps minimize noise interference in signal processing.
The slew rate is 15 V/μs, providing a fast response to signal changes.
This model has a height of 4.57 mm and a length of 19.3 mm, suitable for various mounting applications.
It is designed for through-hole mounting, which is common in many electronic applications.
The operating temperature range is from 0°C to 70°C, ensuring reliability in various environments.
The supply current is 6.5 mA, which contributes to its efficient power consumption.
This model features a single channel, designed for precise low-level signal amplification.
It comes in a 14-pin PDIP package, suitable for through-hole applications.
The PGA202KP is part of the PGA202 series, which includes various instrumentation amplifiers designed for precision applications.
