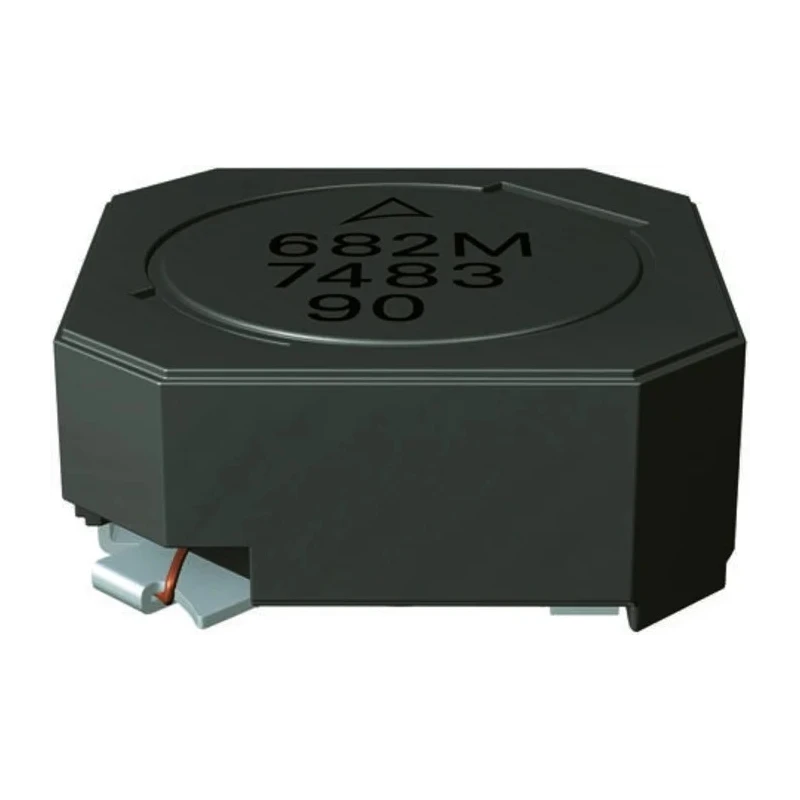

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 22 μH ±20% 2.25 A Idc B82464G4223M000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 4.8mm |
| Length | 10.4mm |
| Model | B82464G4223M000 |
| Depth | 10.4mm |
| Packaging | Tape & Reel |
| Series | B82462-G4 |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 2.25A |
| Pin Count | 2 |
| Maximum DC Resistance | 52mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 13MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Magnetically shielded wirewound construction enhances performance in compact PCB designs.
- Ferrite core ensures low DC resistance of 52 mΩ for efficient current handling.
- High maximum operating temperature of 150°C supports demanding applications.
- Packaging on tape and reel enables efficient automated assembly.
- Compliant with AEC-Q200 automotive standard for reliability.
- RoHS compliant with lead-free tinned solder termination style.

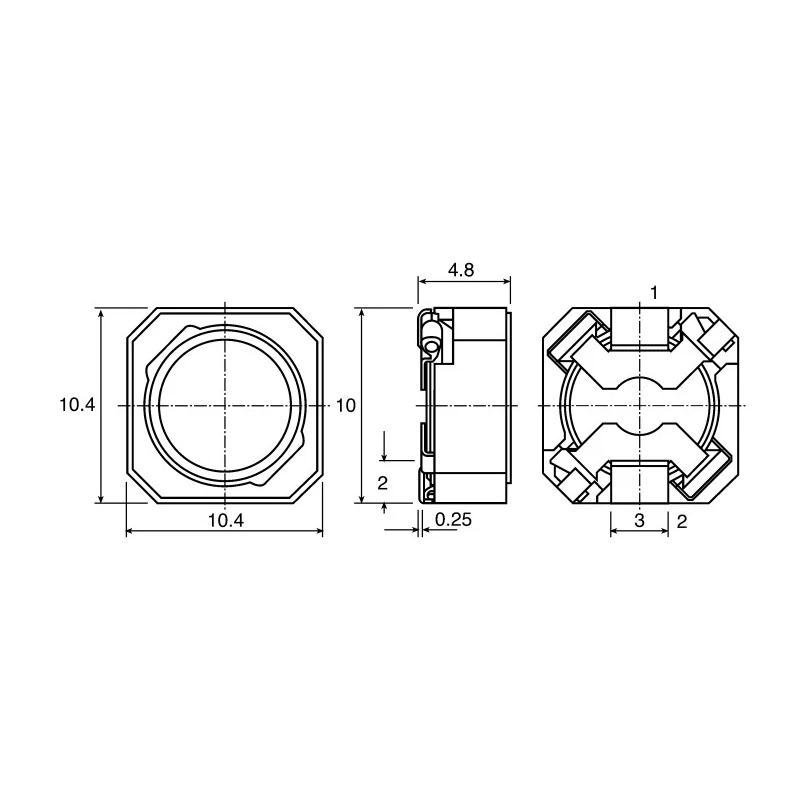

- Size dimensions include 10.4 mm length, 10.4 mm depth, and 4.8 mm height.
- Maximum self-resonant frequency is 13 MHz, suitable for power supply filtering.
Product Description
TDK B82464G4223M000 is a shielded wirewound surface mount inductor featuring a ferrite core, designed for high reliability and efficiency in electronic circuits. With an inductance value of 22 μH ±20% and a maximum DC current rating of 2.25 A, this inductor is optimized for power supply filter applications and automotive electronics that require robust magnetic shielding and thermal stability.
The magnetically shielded construction minimizes electromagnetic interference in densely populated PCB environments. The ferrite core contributes to low DC resistance of 52 mΩ, ensuring minimal power loss and heat generation during high current operation. It is manufactured to the AEC-Q200 standard, meeting stringent automotive-quality requirements.
The inductor is available on tape and reel packaging, compatible with mass automated pick-and-place equipment, enhancing production efficiency. Its physical dimensions of 10.4 mm length, 10.4 mm depth, and 4.8 mm height support compact PCB layouts.
The product operates effectively across a wide temperature range from -55°C to 150°C, suitable for challenging industrial and automotive environments. The maximum self-resonant frequency of 13 MHz guarantees stable performance in power regulation and filtering tasks.
Magnetically shielded wirewound design. Ferrite core for enhanced magnetic properties. Low DC resistance of 52 mΩ optimized for high current. Lead-free tinned solder termination style. AEC-Q200 automotive grade qualification.
Operating temperature range: -55°C to 150°C. Packaging on tape and reel for automated assembly. Suitable for power supply filter applications.
This TDK inductor is highly suited for industrial, automotive, power electronics, and manufacturing applications requiring reliable, shielded inductors with high current capability and temperature tolerance. Browse our electronics components category for related Surface Mount Inductors and passive components to support your engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this surface mount inductor is 22 μH ±20%.
This model has a maximum DC current rating of 2.25 A.
The maximum operating temperature for this inductor is 150°C.
The core material used in this inductor is ferrite.
The dimensions of this inductor are 10.4 mm in length, 10.4 mm in depth, and 4.8 mm in height.
The maximum self-resonant frequency of this inductor is 13 MHz.
This inductor is packaged on tape and reel, which is suitable for automated assembly processes.
This inductor complies with the AEC-Q200 automotive standard for reliability.
The DC resistance of this inductor is 52 mΩ.
The operating temperature range for this model is from -55°C to 150°C.
This inductor features a lead-free tinned solder termination style.
This inductor is suitable for power supply filtering applications and automotive electronics.
