TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 2.2μH ±20 % 2.55A Idc B82462G4222M000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 3mm |
| Length | 6.3mm |
| Model | B82462G4222M000 |
| Depth | 6.3mm |
| Packaging | Tape & Reel |
| Series | B82462-G4 |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 2.2μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 2.55A |
| Pin Count | 2 |
| Maximum DC Resistance | 25mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 75MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Magnetically shielded wire wound choke for minimal interference.
- Constructed with ferrite core material for high magnetic permeability.
- Surface mount device with solder termination style suitable for reflow soldering.
- Wide operating temperature range from -55°C to 150°C for diverse applications.
- Automotive standard AEC-Q200 compliant ensuring reliability in automotive use.
- Maximum DC resistance of 25mΩ for efficient power handling.
- Compact dimensions of 6.3mm length, 6.3mm depth, and 3mm height.
- Suitable for filtering power supplies in industrial and automotive electronics.
Product Description
TDK B82462G4222M000 is a shielded wirewound surface mount inductor incorporating a ferrite core, designed for various electronic applications requiring 2.2μH inductance with a tolerance of ±20% and a maximum DC current of 2.55A.
The inductor features a magnetically shielded wire wound construction which reduces electromagnetic interference, enhancing circuit performance. Its ferrite core material provides high magnetic permeability, making it suitable for power supply filtering and noise suppression in compact circuits.

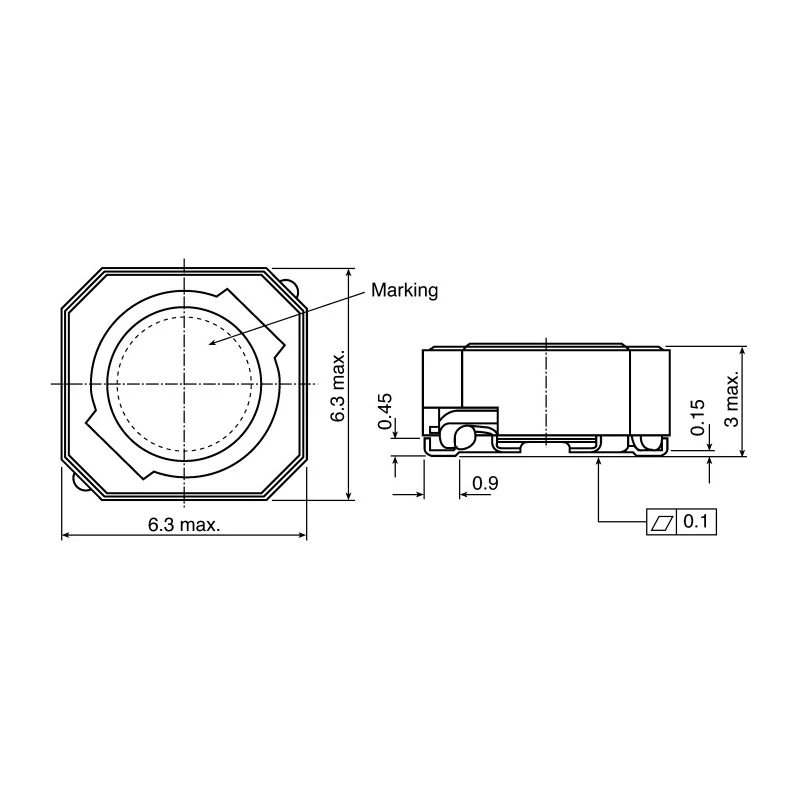

This SMT (Surface Mount Technology) component measures 6.3 mm in length and depth and 3 mm in height with two pins designed for solder termination. It is compatible with reflow soldering and packaged on tape and reel to optimize automated assembly processes.
The component adheres to automotive standard AEC-Q200, ensuring robustness and reliability for automotive and industrial applications. The device operates efficiently within a temperature range of -55°C to +150°C, making it suitable for harsh environments. The maximum DC resistance of 25mΩ supports effective current flow with minimal power loss.
Magnetically shielded wire wound choke for minimal interference. Ferrite core for high magnetic permeability and efficiency. Compact SMT size 6 x 6 mm suitable for high-density PCB designs. Wide operating temperature range from -55°C to +150°C.
Compliant with automotive standard AEC-Q200. Solder termination style compatible with reflow soldering processes. Maximum self-resonant frequency of 75MHz.
This TDK Surface Mount Inductor is ideal for use in filtering power supplies, automotive electronics, industrial electronic modules, and other manufacturing applications requiring compact, high-performance magnetic components.
Explore TDK inductors and similar electronic components on EnvMart for reliable industrial-grade parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 2.2μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 2.55A.
It has compact dimensions of 6.3mm in length, 6.3mm in depth, and 3mm in height.
The maximum operating temperature is 150°C, suitable for high-temperature applications.
Yes, it is compliant with the automotive standard AEC-Q200 and RoHS.
The inductor is constructed with a ferrite core material, which provides high magnetic permeability.
The maximum DC resistance is 25mΩ, allowing for efficient power handling.
It features a solder termination style that is compatible with reflow soldering processes.
The maximum self-resonant frequency is 75MHz, suitable for various electronic applications.
This model is packaged on tape and reel, optimizing it for automated assembly processes.
It is suitable for filtering power supplies in automotive electronics and industrial electronic modules.
This inductor features a wirewound construction, which enhances its performance in circuits.
