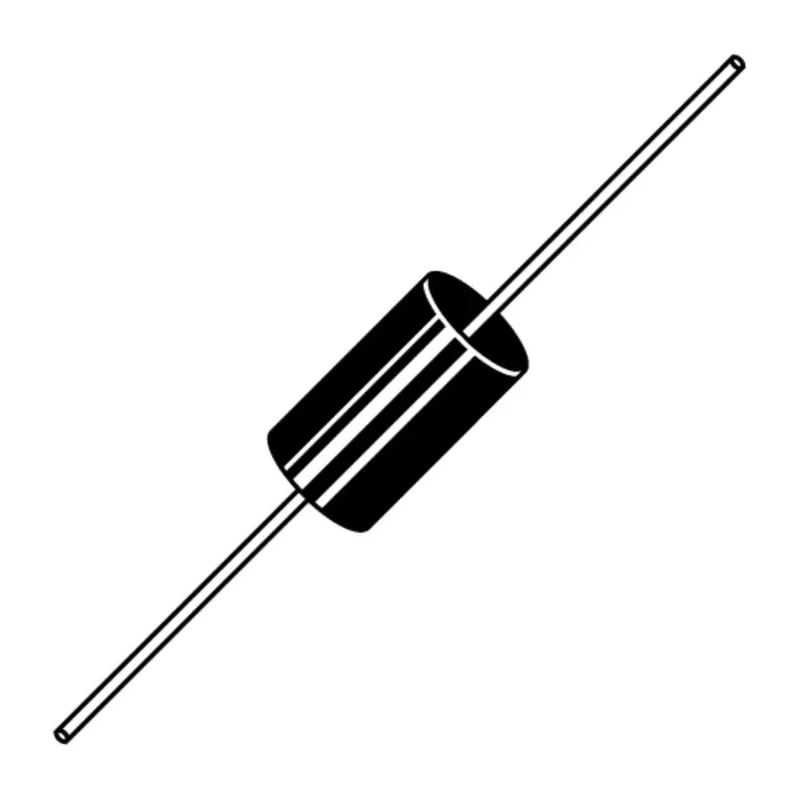

DiodesZetex 100 V 3 A Schottky Diode, Single, 2-Pin DO-201AD Package SB3100-T
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | DiodesZetex |
| Length | 9.5mm |
| Model | SB3100-T |
| Width | 4.8mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 790mV |
Key Features
- This diode operates with a maximum forward voltage drop of 790 mV ensuring low power loss.
- The device supports a peak reverse current of 20 mA for reliable switching performance.
- It is designed for operation in temperature ranges from -65°C up to 150°C, ensuring robustness in varied environments.
- The diode features a compact dimension with a length of 9.5 mm and diameter of 5.3 mm.
- It is a through-hole mounted component, suitable for standard PCB assemblies.
- The diode offers a high peak non-repetitive forward surge current rating of 100 A for transient tolerance.
- Standards compliance includes FBI approval indicating electrical safety certification.
- It is suitable for power and electronic management applications requiring efficient rectification.
Product Description
DiodesZetex SB3100-T is a high-performance Schottky barrier diode designed for efficient rectification in electronics applications. Featuring a maximum continuous forward current rating of 3 Amps and a peak reverse repetitive voltage of 100 Volts, this diode ensures reliable conduction and blocking capabilities in harsh electrical environments. Packaged in a through-hole DO-201AD form factor, the 2-pin device offers ease of use and reliable soldering on standard circuit boards.
The diode’s forward voltage drop of 790 mV significantly reduces power losses compared to silicon counterparts, improving overall circuit efficiency. The component supports a peak reverse current of 20 mA, minimizing leakage during off periods and ensuring signal integrity in switching roles.
Engineered to operate across a wide temperature range from -65°C to 150°C, the SB3100-T is suitable for industrial, automotive, and power supply applications requiring thermal reliability. Its robust peak surge current capability of 100 A protects against transient overcurrent events, making it ideal for protective circuit designs.
Compact in size, with a length of 9.5 mm and diameter of 5.3 mm, this diode fits numerous power rectification and signal conditioning needs. The FBI standardized approval underscores the quality and electrical safety adherence of this component.
This 2-pin Schottky diode is designed for through-hole mounting on printed circuit boards. It offers a single diode configuration suitable for discrete semiconductor applications. Package type DO-201AD ensures compatibility with legacy and industrial designs.
Low forward voltage drop enhances power efficiency in power management circuits. Wide operating temperature range supports demanding industrial and automotive environments. High surge current rating protects circuits from electrical stresses.
FBI approval certifies electrical safety compliance. Widely used in power supplies, rectifiers, and electronic component manufacturing. Explore the Schottky Diodes & Rectifiers category on EnvMart for high-quality components like the DiodesZetex SB3100-T for your electronic and industrial design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 3 Amps.
The peak reverse repetitive voltage for this model is 100 Volts.
The maximum forward voltage drop is 790 mV, which helps in reducing power losses.
This diode has a length of 9.5 mm, a diameter of 5.3 mm, and a width of 4.8 mm.
It operates within a temperature range from -65°C to 150°C.
This diode is designed for through-hole mounting on printed circuit boards.
The peak non-repetitive forward surge current rating is 100 A.
The SB3100-T has a pin count of 2.
The peak reverse current is rated at 20 mA.
This diode complies with FBI standards, indicating electrical safety certification.
It is suitable for power supplies, rectifiers, and electronic component manufacturing.
This model features a single diode configuration.
