| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | 744786012A |
| Depth | 0.8mm |
| Packaging | Tape & Reel |
| Series | WE-MK |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ceramic |
| Inductance | 1.2nH |
| Package/Case | 0603 |
| Maximum DC Current | 600mA |
| Pin Count | 2 |
| Maximum DC Resistance | 50mΩ |
| Inductance Tolerance | ±0.05 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 10GHz |
| Minimum Quality Factor | 8 |
| Inductor Construction | Multilayer |

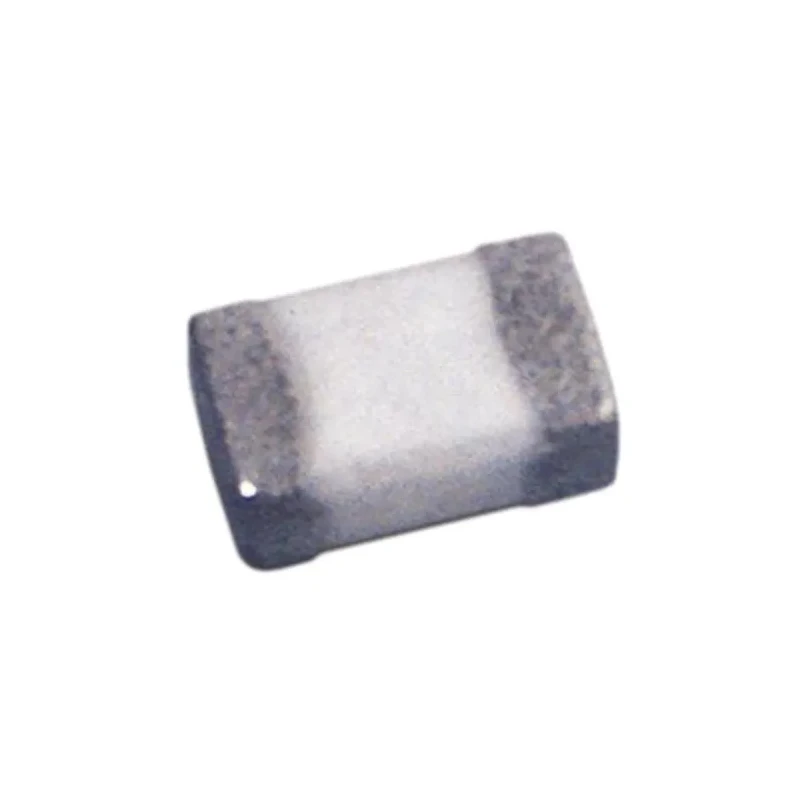

Wurth Elektronik 744786012A WE-MK 0603 series shielded multilayer ceramic core surface mount inductor delivers precision inductance of 1.2 nH with ±0.05% tolerance, designed for high frequency electronics such as tuners, transponders, HF amplifiers, pagers, oscillators, laptops, PCMCIA cards, Bluetooth, and wireless LAN applications.
The compact 0603 package with a length of 1.6 mm, height and depth of 0.8 mm each, supports a maximum DC current of 600 mA and has a low DC resistance of 50 mΩ ensuring minimal losses. The inductor features a multilayer construction on ceramic substrate with shielding for enhanced electromagnetic compatibility.
Operating temperature range from -55°C to 125°C makes it suitable for industrial and commercial use. Its high maximum self-resonant frequency of 10 GHz enables stable inductance at very high frequencies. Recommended soldering methods include reflow and wave soldering.
High precision inductance with ±0.05% tolerance ensures stable circuit performance. Compact 0603 surface mount size supports dense PCB integration. Ceramic core offers high frequency and temperature stability. Maximum DC current of 600 mA supports moderate current applications.
Low DC resistance enhances efficiency by reducing conduction losses. Wide operating temperature range for varied environmental conditions. Multilayer construction provides optimal inductance and quality factor. Shielded design reduces electromagnetic interference in sensitive circuits.
Packaged in tape & reel format facilitates automated production processes.
This Wurth Elektronik WE-MK series inductor is widely used in industrial electronics, telecommunications equipment, consumer devices, and commercial high frequency circuits. It provides a reliable solution for inductive components requiring accuracy, compactness, and high performance.
Explore more Surface Mount Inductors and related electronics components in the Wurth Elektronik catalog on EnvMart for your design and production needs.
