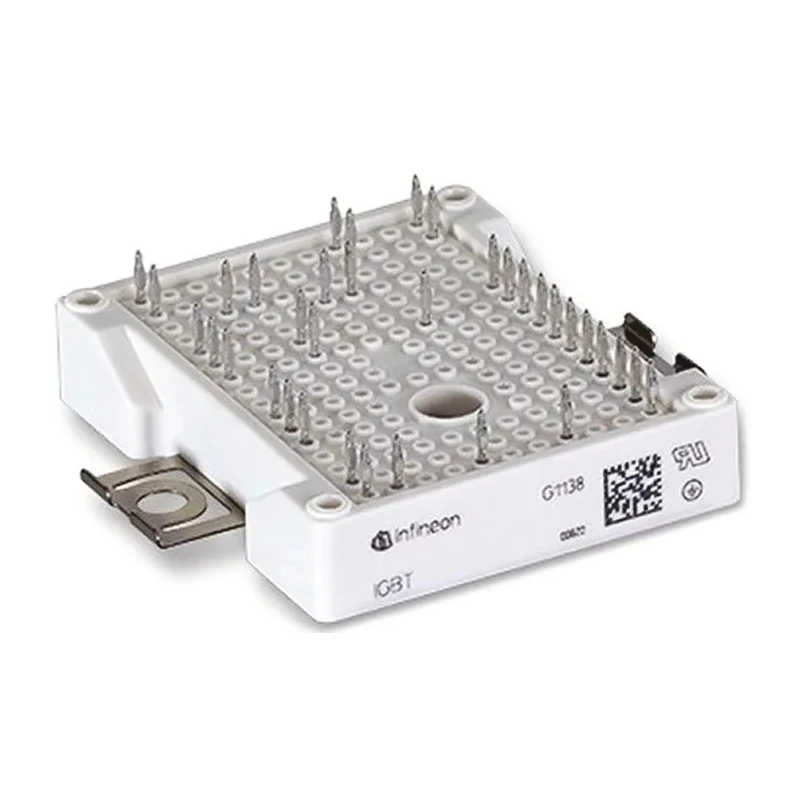

Infineon N-Channel IGBT Module 95 A 650 V 27-Pin EASY2B Clamp F3L75R07W2E3B11BOMA1

Name: Infineon N-Channel IGBT Module 95 A 650 V 27-Pin EASY2B Clamp F3L75R07W2E3B11BOMA1
Brand: Infineon
SKU: 134211
Price: 46.86 USD
Availability: InStock



Category IGBT Module Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	12mm
Length	56.7mm
Model	F3L75R07W2E3B11BOMA1
Width	48mm
Mount Type	Clamp
Maximum Operating Temperature	150°C
Package Type	EASY2B
Minimum Operating Temperature	-40°C
Pin Count	27
Maximum Continuous Collector Current Ic	95A
Maximum Collector Emitter Voltage Vceo	650V
Maximum Collector Emitter Saturation Voltage VceSAT	1.7V
Channel Type	N
Maximum Power Dissipation Pd	250W
Maximum Gate Emitter Voltage VGEO	20 V
Package styles include	62mm Modules, EasyPACK, EconoPACKTM2/EconoPACKTM3/EconoPACKTM4

Key Features

The module features a maximum power dissipation of 250 W for efficient thermal management.
It provides high switching speed operation up to 1 MHz for demanding industrial applications.
Operating temperature range extends from -40°C to a maximum of 150°C, suitable for harsh environments.
The clamp mount type ensures secure mechanical and electrical connections.
Maximum gate emitter voltage is rated at 20 V, protecting gate integrity.
Module dimensions are 56.7 mm length, 48 mm width, and 12 mm height for compact installations.
This module is ideal for industrial drives, inverters, and UPS systems requiring reliable power switching.
The N-channel technology and EASY2B package style ensure low switching losses and high efficiency.

Product Description

Infineon F3L75R07W2E3B11BOMA1 is a high-performance N-Channel IGBT Module delivering a maximum continuous collector current of 95 A and a collector emitter voltage of 650 V. Encapsulated in a 27-pin EASY2B clamp package, it is designed for efficient and reliable power semiconductor applications.

This IGBT module features a maximum power dissipation rating of 250 W, enabling effective thermal handling in industrial power modules. It supports switching speeds up to 1 MHz, making it suitable for applications requiring fast and efficient switching such as industrial drives, uninterruptible power supplies (UPS), and inverter systems.

The module operates reliably across a wide temperature range from -40°C up to 150°C, allowing usage in harsh operating environments. Its mount type is clamp, providing secure and stable installation while the package dimensions (56.7 mm length, 48 mm width, 12 mm height) ensure compact integration into electronic assemblies.

Featuring maximum gate emitter voltage rating of 20 V and a maximum saturation collector emitter voltage of 1.7 V, the device combines high efficiency with robust electrical performance. The EASY2B package style and N-channel configuration optimize switching losses and provide reliable operation at frequencies up to 60 kHz, desirable for industrial, commercial, construction, and agricultural vehicle power modules.

Infineon's IGBT modules, including PrimePACK, EconoPACK, and TRENCHSTOP technologies, are widely employed in applications ranging from soft and hard switching in inverters to industrial power drives. This module represents the cutting edge in power semiconductor solutions combining MOSFET gate-drive characteristics with bipolar transistor power capabilities.

The module supports switching frequencies up to 1 MHz for enhanced efficiency. Designed for industrial automation, power conversion, and motor drive applications. The clamp mount type provides mechanical stability and ease of installation.

N-channel technology offers robust performance and low loss switching. Temperature ratings allow reliable operation in extreme conditions. Compact footprint aids in integration into power electronic assemblies. Suitable for use in inverter, UPS, and industrial drive systems.
