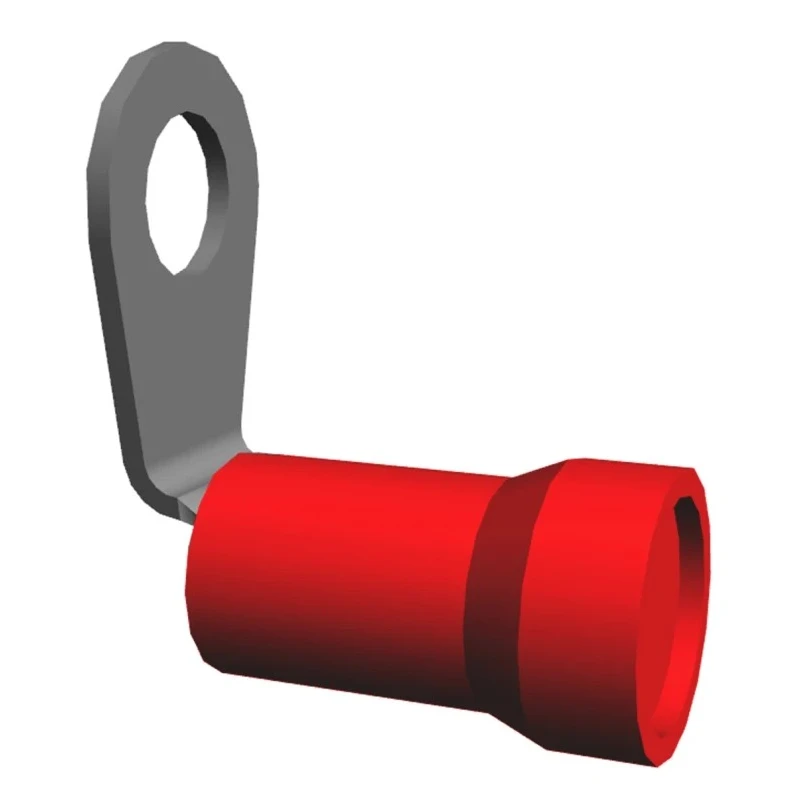

TE Connectivity PLASTI-GRIP Insulated Ring Terminal 10 Stud 8 AWG Wire Size Red 55654-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 1.02mm |
| Model | 55654-1 |
| Insulation | Insulated |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Polyvinyl Chloride |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 6.6mm² |
| Maximum Wire Size mm² | 10.5mm² |
| Maximum Wire Size AWG | 8AWG |
| Outer Ring Diameter | 10.95mm |
| Inner Ring Diameter | 5mm |
| Stud Size | 10 |
Key Features
- Constructed with high conductivity tin plated copper for excellent electrical performance.
- Features a polyvinyl chloride insulation sleeve rated to 94V-0 for high dielectric strength.
- Inner barrel serrated to maximize electrical contact and tensile strength after crimping.
- Funnel entry design enables easy insertion of stripped wire.
- Suitable for wire sizes from 8 AWG with stud size 10 and color red for identification.
- Designed to operate up to a maximum temperature of 105°C.
- Outer ring diameter measures 10.95 mm while inner ring diameter is 5 mm.
- Thickness of terminal plate is 1.02 mm, ensuring robustness in use.
Product Description
TE Connectivity 55654-1 PLASTI-GRIP Insulated Ring Terminal is designed for securely terminating and connecting 8 AWG wires with high reliability in electrical and electronic applications. The terminal features a tin plated copper contact for superior conductivity and corrosion resistance. Its polyvinyl chloride insulation sleeve provides excellent electrical insulation with a flame-retardant rating of 94V-0.
The ring terminal's inner barrel is serrated to enhance mechanical grip on the conductor, improving tensile strength and electrical contact after crimping. The funneled wire entry allows for easy insertion of stripped wires, reducing installation time and potential wiring errors. This red terminal suits wire sizes of 8 AWG and stud size 10, making it ideal for various industrial, automotive, and electronic wiring applications.
Measuring 10.95 mm outer ring diameter, 5 mm inner ring diameter, and 1.02 mm thickness, this terminal is built for durability and reliability in harsh environments. It supports operation up to 105°C maximum temperature, ensuring performance under typical electrical load conditions.
Constructed from high conductivity copper with tin plating for corrosion resistance and electrical efficiency. Insulated with a 94V-0 rated polyvinyl chloride sleeve to ensure electrical safety. Serrated barrel enhances mechanical grip and electrical contact after crimping.
Funnel entry simplifies wire insertion for efficient installation. Suitable for 8 AWG wire sizes with 10 stud size, color-coded red for easy identification. Maximum operating temperature of 105°C for reliable performance.
Dimensions provide sturdy and secure wire connections in demanding applications.
This TE Connectivity PLASTI-GRIP Ring Terminal is well-suited for electrical wiring tasks in industrial plants, automotive systems, HVAC installations, and manufacturing setups where reliable wire termination is critical. Its high-quality materials and thoughtful design ensure long service life and electrical safety compliance.
Explore a broad range of electrical connectors and terminals in the Electronics & Electricals category at EnvMart for complete wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this terminal is 105°C.
This terminal is suitable for wire sizes from 8 AWG, which corresponds to a minimum wire size of 6.6 mm² and a maximum wire size of 10.5 mm².
The outer ring diameter measures 10.95 mm, while the inner ring diameter is 5 mm.
The contact material of this terminal is copper, which is tin plated for enhanced conductivity and corrosion resistance.
It features a polyvinyl chloride insulation sleeve that is rated to 94V-0 for high dielectric strength and flame-retardant properties.
The thickness of the terminal plate is 1.02 mm.
The stud size for this terminal is 10.
The terminal has a funnel entry design that enables easy insertion of stripped wire, reducing installation time and potential errors.
This terminal is suitable for various industrial, automotive, and electronic wiring applications where reliable wire termination is critical.
This terminal belongs to the PLASTI-GRIP series by TE Connectivity.
The country of origin for this terminal is India.
The inner barrel is serrated to maximize electrical contact and tensile strength after crimping, improving the mechanical grip on the conductor.
