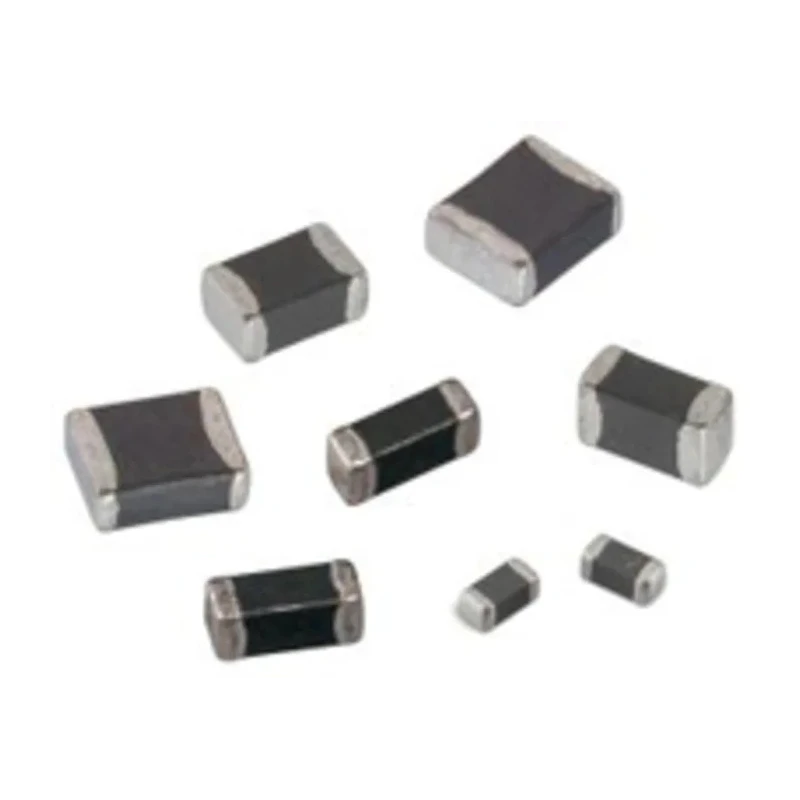

Wurth Elektronik WE-PMI 0805 Unshielded Multilayer Surface Mount Inductor with Ferrite Core 470 nH ±20% 74479773147
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 0.5mm |
| Operating Temperature Range | -40°C to +125°C |
| Length | 2mm |
| Depth | 1.25mm |
| Packaging | Tape & Reel |
| Series | WE-PMI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 470nH |
| Standards/Approvals | REACH, RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 1.4A |
| Pin Count | 2 |
| Maximum DC Resistance | 100mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 150MHz |
| Minimum Quality Factor | 10 |
| Inductor Construction | Multilayer |
Key Features
- Multilayer construction offers improved performance and compact size.
- Ferrite core enhances magnetic properties and reduces losses.
- Operating temperature range from -40°C to +125°C ensures durability in harsh environments.
- Maximum DC current of 1.4 A supports high current circuits.
- Maximum DC resistance of 100 milliohms minimizes power dissipation.
- Unshielded design suitable for applications where magnetic interference is minimal.
- Package size 0805 for standard surface mount technology compatibility.
- Maximum self-resonant frequency of 150 MHz enables use in high-frequency circuits.
Product Description
Wurth Elektronik 74479773147 WE-PMI 0805 Unshielded Multilayer Surface Mount Inductor with a Ferrite Core and 470 nH inductance ±20% offers a compact and efficient solution for power electronics and signal filtering.
This component is constructed using multilayer technology ensuring consistent inductance and low DC resistance, suitable for circuits requiring up to 1.4 A current.
The ferrite core provides excellent magnetic permeability and stability over the operating temperature range of -40°C to +125°C, making it ideal for automotive, industrial, and consumer electronics applications.
Its unshielded design is appropriate where electromagnetic interference is not critical, and it fits standard 0805 packages for surface mount soldering.
The inductor operates up to a self-resonant frequency of 150 MHz with a minimum quality factor of 10, ensuring effective performance in high-frequency DC/DC converters, portable devices such as PDAs and digital cameras, and other compact electronic circuits.
Multilayer construction improves signal integrity and reduces size. Ferrite core enhances magnetic efficiency and minimizes losses. Wide operating temperature range from -40°C up to 125°C supports diverse environments. Rated for maximum DC current of 1.4 A for robust circuit operation.
Low maximum DC resistance of 100 milliohms reduces heat generation. Unshielded format reduces manufacturing complexity and cost. Standard 0805 package ensures compatibility with existing manufacturing lines. Complies with RoHS and REACH environmental standards.
Ideal for use in industrial electronics, telecommunications equipment, power supply circuits, portable electronic devices, and automotive applications where size, reliability, and efficiency are critical.
Explore the wide range of Wurth Elektronik passive components at EnvMart for dependable electronic design solutions.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 470 nH with a tolerance of ±20%.
It is rated for a maximum DC current of 1.4 A, making it suitable for high current circuits.
The operating temperature range is from -40°C to +125°C, allowing it to function in various environments.
This model has a length of 2 mm, a depth of 1.25 mm, and a height of 0.5 mm.
It features a ferrite core, which enhances its magnetic properties and reduces losses.
The maximum DC resistance is 100 milliohms, which helps minimize power dissipation.
The maximum self-resonant frequency is 150 MHz, making it suitable for high-frequency applications.
It is packaged in tape and reel format, which is standard for surface mount components.
It complies with REACH and RoHS environmental standards.
The termination style is surface mount, compatible with standard soldering processes.
It is suitable for use in power supply circuits, telecommunications equipment, and portable electronic devices.
The minimum quality factor is 10, ensuring effective performance in various applications.
