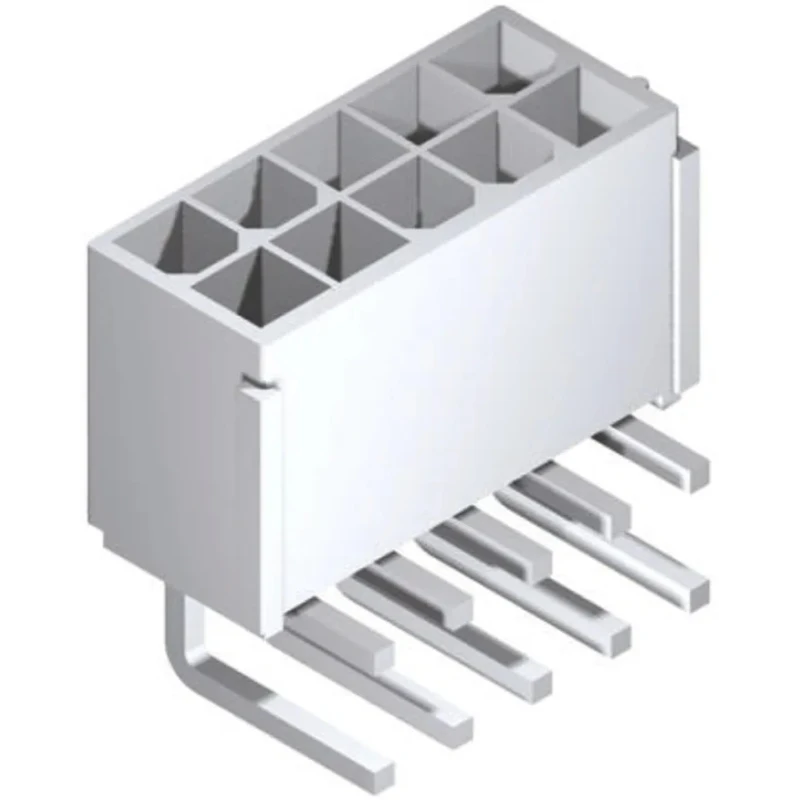

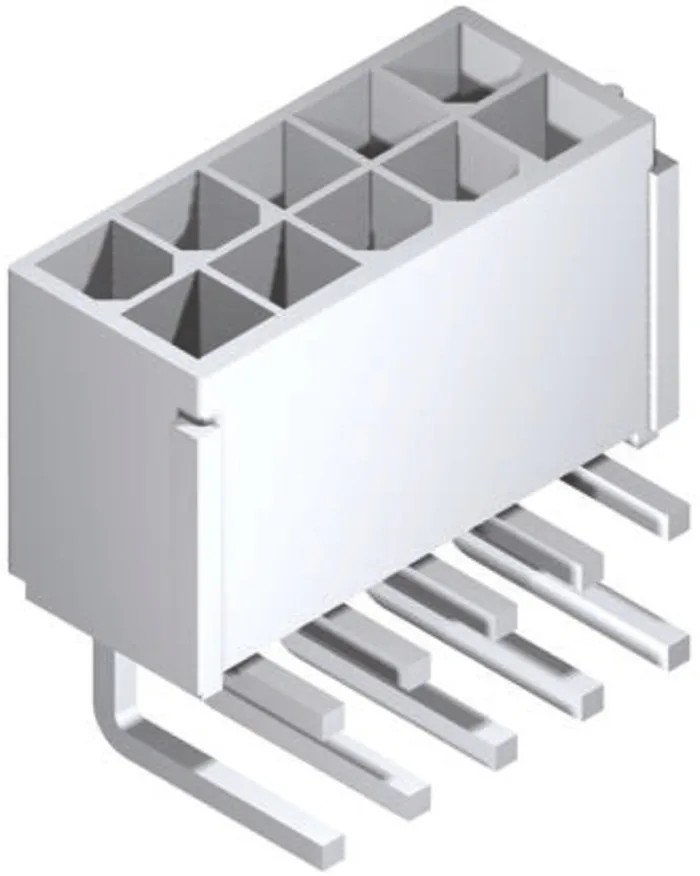

Molex Mini-Fit Jr Series Right Angle Through Hole PCB Header 8 Contacts 4.2 mm Pitch Shrouded 87427-0802
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 7A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Fit Jr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.3mm |
Key Features
- Mini-Fit Jr series connector features a 2-row right angle design for compact PCB mounting.
- Shrouded housing made of durable nylon enhances connector protection.
- 8 brass contacts plated with tin ensure strong conductivity and reliable connections.
- Rated for 7A current and 600V voltage for moderate power applications.
- Terminated via solder with 3.3 mm tail pin length for secure mounting.
- Operates effectively within temperature range of -40°C to 105°C.
- Designed to mate with 5557 series receptacle housings for versatility.
- Manufactured in India ensuring quality and compliance.
Product Description
Molex 87427-0802 Mini-Fit Jr Series Right Angle Through Hole PCB Header is a high-quality electronic connector designed for efficient wire-to-board connections in industrial and commercial applications. This shrouded 2-row header features 8 male brass contacts with tin plating, providing excellent electrical performance and durability.
With a pitch of 4.2 mm, the connector is engineered for compatibility with standard PCB layouts requiring right angle through-hole mounting. It supports a current rating of 7A and a voltage rating of 600V, suitable for a wide range of electronics applications including power supplies, industrial controls, and communication equipment.
The nylon housing material contributes to the connector's robustness and resistance to environmental factors. Operating temperature ranges from -40°C to 105°C ensuring reliable functionality in a variety of conditions. The solder termination type with 3.3 mm tail pin length allows secure PCB attachment and efficient manufacturing.
The Molex Mini-Fit Jr Series 87427-0802 mates with 5557 series receptacle housings, providing scalable and flexible connector solutions. Manufactured in India, this connector conforms to industry standards and is ideal for electronics, industrial, and manufacturing sectors requiring robust PCB Headers.
Two-row right angle header with 8 contacts for space-saving PCB integration. Durable nylon shrouded housing for protection and reliable operation. High conductivity due to brass contacts with tin plating. Supports 7A current and 600V voltage for industrial use.
Wide operational temperature range from -40°C to 105°C. Solder termination with 3.3 mm tail pin length facilitates strong PCB mounting. Compatible with 5557 series receptacle housings for flexible system design. Manufactured in India ensuring quality and performance reliability.
This Molex PCB Header is ideal for industrial, electronics manufacturing, communication equipment, and power supply applications where reliable electrical connections and durability are critical. Explore related Molex connectors and components for comprehensive system integration at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 7A and a voltage rating of 600V, making it suitable for moderate power applications.
The pitch of this connector is 4.2 mm, designed for compatibility with standard PCB layouts.
It operates effectively within a temperature range of -40°C to 105°C, ensuring reliable functionality in various conditions.
This unit features a solder termination type with a tail pin length of 3.3 mm for secure PCB attachment.
The Molex Mini-Fit Jr series header has 8 male brass contacts, providing strong conductivity and reliable connections.
The housing is made of durable nylon, which enhances connector protection and robustness.
This connector is designed for a wire-to-board connection system, suitable for various electronic applications.
Yes, it is designed to mate with 5557 series receptacle housings, providing versatility in system design.
The connector features a right angle orientation, allowing for compact PCB mounting.
This model is manufactured in India, ensuring quality and compliance with industry standards.
The contacts are plated with tin, which ensures strong conductivity and reliable electrical performance.
This unit features a 2-row design, which aids in space-saving integration on PCBs.
