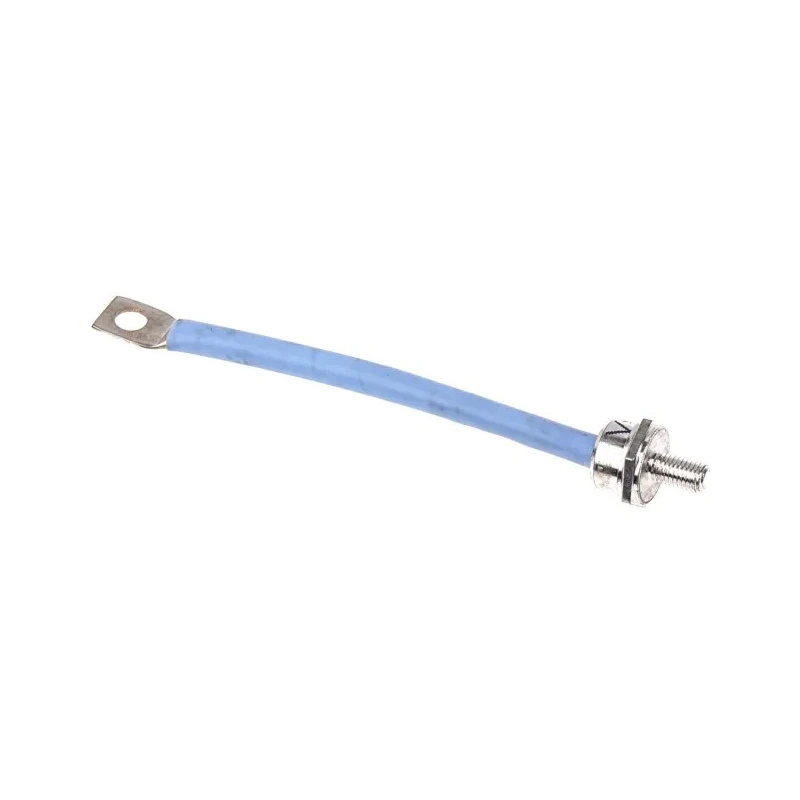

Vishay Standard Recovery Power Diode 1200 V 70 A Screw Mount DO-203AB VS-72HF120
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 17.4mm |
| Brand | Vishay |
| Height | 17.4mm |
| Length | 36.5mm |
| Model | VS-72HF120 |
| Mount Type | Screw |
| Maximum Operating Temperature | 180°C |
| Package Type | DO-203AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 70A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Stud Cathode |
| Rectifier Type | Recovery |
| Peak Reverse Current Ir | 9μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.1kA |
| Maximum Forward Voltage Vf | 1.35V |
| Peak Reverse Recovery Time trr | 500ns |
Key Features
- Standard recovery rectifier suitable for over 40 A applications.
- Maximum continuous forward current of 70 A ensures robust performance.
- Peak reverse repetitive voltage rating of 1200 V for reliable operation.
- Stud cathode diode configuration for effective heat dissipation.
- Low maximum forward voltage of 1.35 V reduces power loss.
- Operating temperature range from -65°C to 180°C supports harsh environments.
- Fast peak reverse recovery time of 500 ns improves switching efficiency.
- Compact dimensions of 36.5 mm length and 17.4 mm diameter and height.
Product Description
Vishay VS-72HF120 is a high-efficiency standard recovery power diode rated for 1200 V peak reverse voltage and 70 A maximum continuous forward current. Packaged in a 2-pin DO-203AB screw mount configuration, this diode features a stud cathode design that enhances heat dissipation and reliability in demanding semiconductor applications.
Designed for a broad range of industrial, power electronics, and manufacturing uses, it supports operating temperatures from -65°C to 180°C and offers a fast peak reverse recovery time of 500 ns to optimize switching performance. The diode’s maximum forward voltage of 1.35 V helps reduce conduction losses in power circuits.
The compact form factor, with dimensions of 36.5 mm length and 17.4 mm diameter and height, enables easy integration into power rectification and conversion setups. This standard recovery rectifier facilitates efficient, reliable current handling exceeding 40 A.
Critical features include a peak non-repetitive forward surge current of 1.1 kA and a low peak reverse current of 9 μA, ensuring capability for transient conditions and low leakage respectively.
Standard recovery rectifier for reliable power conversion. Robust 70 A continuous forward current capacity. High 1200 V peak reverse repetitive voltage rating. Widely used in industrial and manufacturing power modules. Stable operation across wide temperature extremes.
Fast switching enhances efficiency in converters. Compact and rugged DO-203AB package design. Low forward voltage minimizes power dissipation. Suitable for harsh electrical environments. Explore the Vishay brand and the wider range of semiconductor products at EnvMart for dependable industrial electronic components.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-72HF120 is 70 A, ensuring robust performance in various applications.
This model has a peak reverse repetitive voltage rating of 1200 V, making it suitable for reliable operation in high-voltage applications.
The operating temperature range for the VS-72HF120 is from -65°C to 180°C, allowing it to function effectively in harsh environments.
The maximum forward voltage drop for this model is 1.35 V, which helps reduce power loss during operation.
The VS-72HF120 features a stud cathode configuration, which enhances heat dissipation and reliability in demanding applications.
This model has a fast peak reverse recovery time of 500 ns, which improves switching efficiency in power circuits.
The dimensions of this diode are 36.5 mm in length and 17.4 mm in diameter and height, allowing for easy integration into various setups.
The diode is packaged in a DO-203AB configuration, which is a screw mount type for secure installation.
The peak non-repetitive forward surge current rating for this model is 1.1 kA, ensuring capability for transient conditions.
The peak reverse current for the VS-72HF120 is 9 μA, indicating low leakage during operation.
The VS-72HF120 is manufactured in India, contributing to its availability in the market.
This model is a standard recovery rectifier, suitable for efficient power conversion in various applications.
