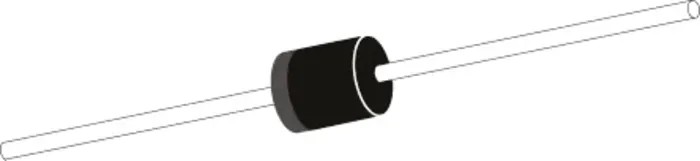

Vishay 1-Element Uni-Directional TVS Diode, 5000 W, 2-Pin P600 5KP64A-E3/54
Specifications
| Country of Origin | Taiwan |
|---|---|
| Diameter | 9.1mm |
| Brand | Vishay |
| Height | 9.1mm |
| Length | 9.1mm |
| Model | 5KP64A-E3/54 |
| Width | 9.1mm |
| Mount Type | Through Hole |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | P600 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 103V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 71.1V |
| Maximum Reverse Stand-off Voltage Vwm | 64V |
| Peak Pulse Power Dissipation Pppm | 5000W |
| Test Current It | 5mA |
| Maximum Peak Pulse Current Ippm | 48.5A |
| Maximum Reverse Leakage Current | 2μA |
Key Features
- Single diode configuration ensuring reliable transient voltage suppression.
- Uni-directional type suitable for protecting sensitive electronic components.
- Maximum peak pulse power dissipation of 5000 W for high-energy transient events.
- Through hole mount type with compact 9.1 mm P600 package dimensions.
- Wide operating temperature range from -55°C to 175°C for diverse environments.
- Fast response time and excellent clamping capability to limit voltage spikes.
- Automotive AEC-Q101 qualified for high reliability in automotive applications.
- Low maximum reverse leakage current of 2 μA to minimize power loss.
Product Description
Vishay 5KP64A-E3/54 is a 1-element uni-directional Transient Voltage Suppressor (TVS) diode equipped with a through-hole 2-pin P600 package. Designed to provide protection against voltage transients in sensitive electronic circuits, this diode offers a peak pulse power dissipation rating of 5000 W, making it suitable for industrial, automotive, and consumer electronics applications.
This TVS diode features a minimum breakdown voltage of 71.1 V and a maximum reverse stand-off voltage of 64 V, ensuring robust protection during voltage spikes. Its fast response time and low incremental surge resistance facilitate quick and effective suppression of transient voltages, preserving the integrity of connected devices.
The P600 glass passivated junction package with 9.1 mm dimensions (height, length, diameter, and width) offers easy integration into through-hole designs. The diode sustains operating temperatures from -55°C up to 175°C, enabling use in harsh environmental and automotive systems complying with AEC-Q101 standards.
Key features include low maximum reverse leakage current of 2 μA, solid ESD protection capabilities, and compliance with automotive industry qualifications, making it ideal for use in industrial automation, manufacturing equipment, power supply protection, and other demanding electrical and electronic environments.
Single diode configuration ensuring reliable transient voltage suppression. Uni-directional type suitable for protecting sensitive electronic components. Maximum peak pulse power dissipation of 5000 W for high-energy transient events.
Through hole mount type with compact 9.1 mm P600 package dimensions. Wide operating temperature range from -55°C to 175°C for diverse environments. Fast response time and excellent clamping capability to limit voltage spikes.
Automotive AEC-Q101 qualified for high reliability in automotive applications. Low maximum reverse leakage current of 2 μA to minimize power loss.
This Vishay TVS diode 5KP64A-E3/54 is an essential component for transient voltage suppression in electronics manufacturing, automotive circuits, power management systems, and protection of semiconductors and discrete devices. Its robust design and compliance make it suitable for use in industrial, automotive, and other high reliability applications.
Explore EnvMart’s comprehensive range of semiconductor components and TVS Diode solutions for your next electronic design to ensure optimal surge protection and device longevity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak pulse power dissipation of this model is 5000 W, making it suitable for high-energy transient events.
It operates within a wide temperature range from -55°C to 175°C, allowing for use in various environments.
The minimum breakdown voltage for this diode is 71.1 V, ensuring effective protection against voltage spikes.
The maximum reverse stand-off voltage is 64 V, which helps to protect sensitive components from overvoltage conditions.
This model features a through-hole mount type, which facilitates easy integration into circuit boards.
The clamping voltage (VC) for this diode is 103 V, providing effective voltage spike suppression.
The maximum reverse leakage current is 2 μA, which helps minimize power loss during operation.
The 5KP64A-E3/54 is a single diode configuration, providing reliable transient voltage suppression.
It is qualified according to the AEC-Q101 automotive standard, ensuring high reliability in automotive applications.
This diode comes in a P600 package type, with compact dimensions of 9.1 mm in height, length, and width.
The maximum peak pulse current is 48.5 A, allowing it to handle significant transient events effectively.
This TVS diode is suitable for use in industrial automation, automotive circuits, power supply protection, and other demanding electrical environments.
