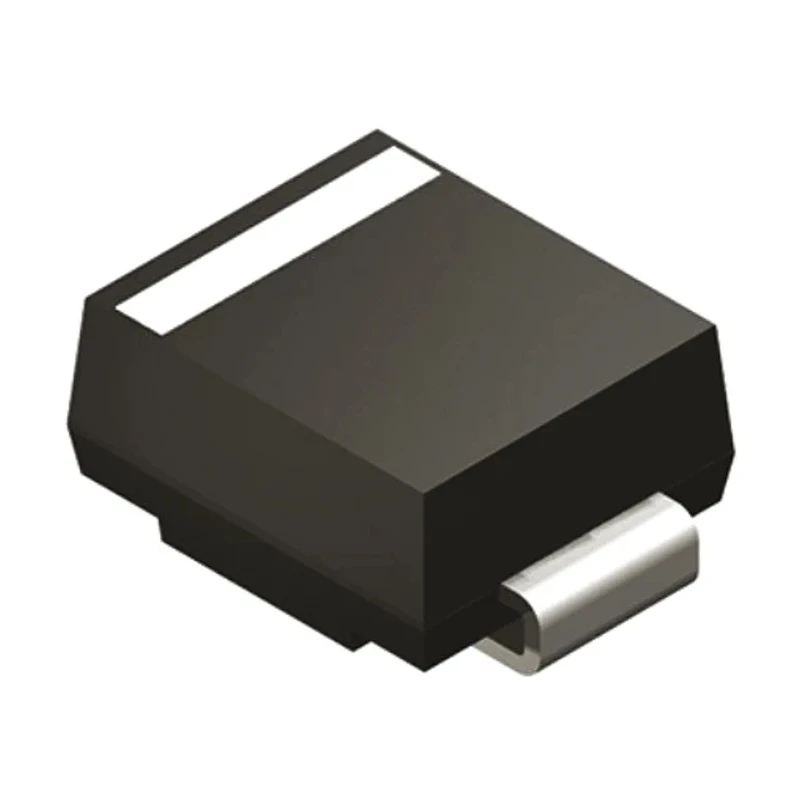

Vishay 1-Element Uni-Directional TVS Diode 600 W, 2-Pin DO-214 P6SMB75A-E3/52

Vishay P6SMB75A-E3/52 1-Element Uni-Directional TVS Diode offers robust transient voltage suppression with a peak pulse power dissipation of 600 W in a compact 2-pin DO-214 surface mount package. This diode is designed primarily for protection against voltage surges in electronic circuits.

The device features a minimum breakdown voltage of 71.3 V and a maximum reverse stand-off voltage of 64 V, providing effective clamping at a voltage of 103 V. Its construction supports operation across a wide temperature range from -65°C to 150°C, making it suitable for industrial, automotive, and consumer electronics environments where reliability under thermal stress is essential.

With a low reverse leakage current of 1 μA and a test current of 1 mA, this TVS diode minimizes standby power dissipation, contributing to energy-efficient circuit protection. The maximum peak pulse current rating of 5.8 A and ESD protection capabilities safeguard sensitive semiconductor devices from transient voltage spikes.

This product complies with the automotive standard AEC-Q101, ensuring its reliability and performance in automotive electronic applications requiring stringent qualification.

The small form factor featuring dimensions 4.57 mm length, 3.94 mm width, and 2.24 mm height supports high-density PCB layouts and efficient space utilization. The single element per chip design simplifies circuit integration.

For designers and engineers demanding reliable overvoltage protection in compact surface mount form factors, the Vishay P6SMB75A-E3/52 TVS diode is an ideal choice, balancing performance, durability, and compactness.

Explore more advanced semiconductor components and protective devices in the TVS Diode category at EnvMart for comprehensive electronic solutions. Designed for transient voltage suppression and overvoltage protection. Minimum breakdown voltage of 71.3 V ensures effective clamping of voltage surges.

Compact surface mount DO-214 package with dimensions 4.57 mm length, 3.94 mm width, and 2.24 mm height. Operates within temperature range from -65°C to 150°C, suitable for harsh environments. ESD protection capability with peak pulse current of 5.8 A.

Low maximum reverse leakage current of 1 μA minimizes power loss. Automotive standard compliant to AEC-Q101 ensuring reliability in automotive electronics. Manufactured in China with brand Vishay guarantees high quality semiconductor component.
