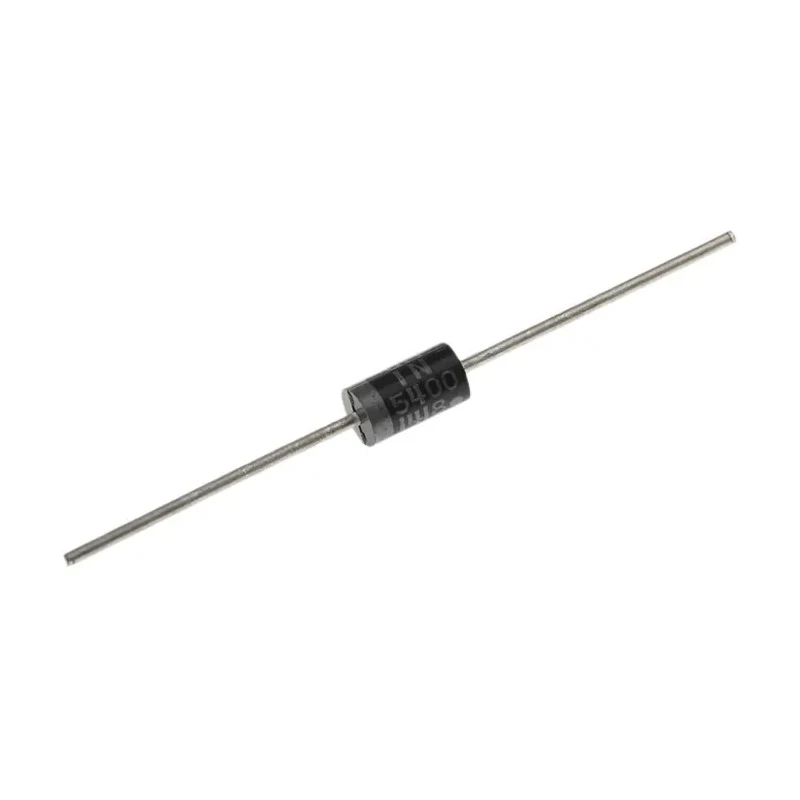

onsemi Silicon Junction Switching Diode, Single, 3 A Forward Current, 50 V Reverse Voltage, 2-Pin DO-201AD Package 1N5400G

Name: onsemi Silicon Junction Switching Diode, Single, 3 A Forward Current, 50 V Reverse Voltage, 2-Pin DO-201AD Package 1N5400G
Brand: onsemi
SKU: 131033
Price: 0.25 USD
Availability: InStock



Category Switching Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Diameter	5.3mm
Brand	onsemi
Height	9.5mm
Length	9.5mm
Model	1N5400G
Width	5.3mm
Mount Type	Through Hole
Maximum Operating Temperature	150°C
Package Type	DO-201AD
Sub Type	Silicon Junction
Minimum Operating Temperature	-65°C
Pin Count	2
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Maximum Forward Voltage Vf	1V
Maximum Forward Current If	3A
Maximum Peak Reverse Repetitive Voltage Vrrm	50V

Key Features

Features a DO-201AD through-hole package with 2 pins for easy PCB mounting.
Supports maximum repetitive peak reverse voltage of 50 V for robust operation.
Maximum forward voltage drop is 1 V ensuring efficient conduction.
Operates reliably within a temperature range of -65°C to 150°C.
Designed for peak non-repetitive forward surge current up to 200 A to handle transient load conditions.
Compact dimensions with length and height of 9.5 mm, diameter and width of 5.3 mm.
Ideal for industrial, electronic, and power applications requiring durable rectifier diodes.

Product Description

onsemi 1N5400G silicon junction switching diode is a single-diode device designed to handle up to 3 A continuous forward current with a peak repetitive reverse voltage of 50 V. Packaged in a robust DO-201AD through-hole configuration, it is suitable for mounting on printed circuit boards in electronic, industrial, and power supply applications.

Its maximum forward voltage of 1 V ensures efficient performance while minimizing power loss in rectification circuits. The diode can operate reliably within a broad temperature range from -65°C to +150°C, providing durability in demanding environments.

The device supports a peak non-repetitive forward surge current of 200 A, allowing it to tolerate sudden current spikes typical in switching and rectifier circuits. Its compact form factor with dimensions of 9.5 mm length and height, and 5.3 mm diameter and width, enables its use in densely packed electronic assemblies.

This onsemi diode is especially suited for industrial electronics, power supplies, and general-purpose rectification needs, providing consistent switching and protection functionalities with high reliability and long service life.

DO-201AD package, 2-pin through-hole mounting. Maximum forward current: 3 A. Peak reverse repetitive voltage: 50 V. Surge current rating: 200 A peak. Operating temperature range: -65°C to 150°C. Compact dimensions, suitable for automated assembly.

The onsemi 1N5400G switching diode enhances electronic circuit designs requiring efficient, robust rectification components. Explore more semiconductor and diode components in our Electronics & Electricals category at EnvMart.
