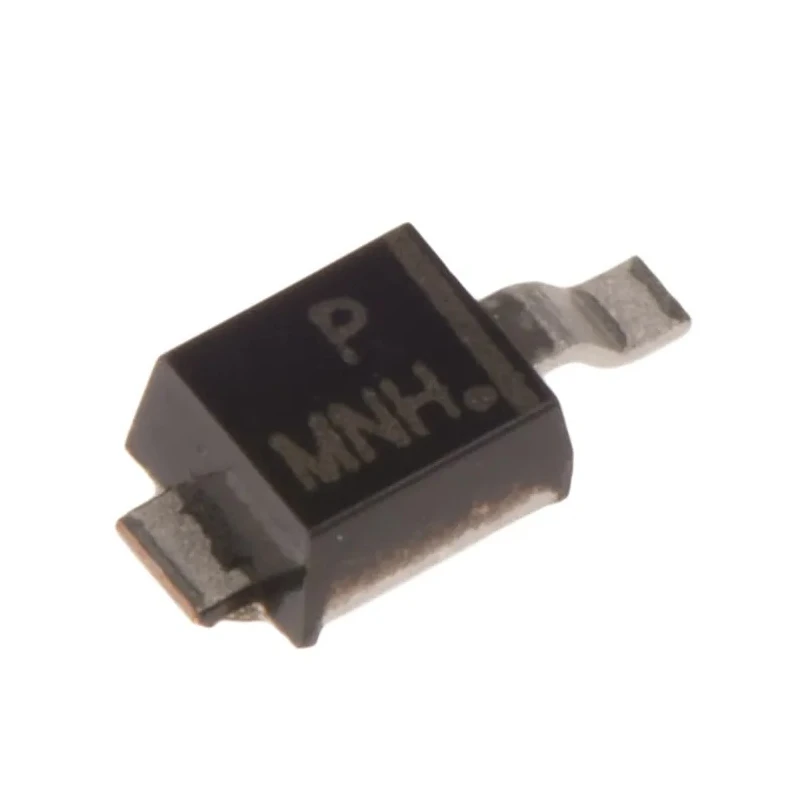

onsemi 1-Element Uni-Directional LED Shunt Protector 1.56 W Surface Mount POWERMITE 2-Pin NUD4700SNT1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.15mm |
| Length | 2.05mm |
| Model | NUD4700SNT1G |
| Width | 2.18mm |
| Mount Type | Surface |
| Series | NUD4700 |
| Maximum Operating Temperature | 150°C |
| Package Type | POWERMITE |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 5.5V |
| Peak Pulse Power Dissipation Pppm | 1.56W |
| Test Current It | 1A |
| Maximum Reverse Leakage Current | 250μA |
Key Features
- Designed as a single diode configuration for uni-directional protection.
- Minimum breakdown voltage of 5.5 V for reliable operation.
- Surface mount package type POWERMITE with compact dimensions.
- Operates within temperature range of -40°C to 150°C.
- Maximum reverse leakage current of 250 μA enhancing efficiency.
- Compliant with Automotive Standard AEC-Q101.
- Ideal for lighting applications requiring high reliability.
- Features a height of 1.15 mm, length of 2.05 mm, and width of 2.18 mm.
Product Description
onsemi NUD4700SNT1G is a 1-Element Uni-Directional LED Shunt Protector with a peak pulse power dissipation rating of 1.56 W, designed to ensure continuity in LED strings by bypassing current when an LED fails. This device is surface mounted in a POWERMITE 2-pin package, making it compact and suitable for high-density electronics applications.
The shunt protector operates reliably in a wide temperature range from -40°C to 150°C and features a minimum breakdown voltage of 5.5 V. It maintains a low maximum reverse leakage current of 250 μA, enhancing efficiency and durability in lighting circuits.
Featuring compliance with the Automotive Standard AEC-Q101, it is ideal for automotive and other lighting applications requiring high reliability and transient voltage suppression.
With dimensions of 1.15 mm height, 2.05 mm length, and 2.18 mm width, the device is suitable for compact PCB layouts. It offers a test current rating of 1 A and contains a single element per chip, ensuring dedicated protection.
This product is critical for industrial LED lighting, automotive electronics, manufacturing, and various electronics assembly processes requiring robust LED protection. Single diode configuration optimized for uni-directional LED shunt protection.
Compact surface mount POWERMITE package suitable for automated assembly. High reliability ensured by compliance with AEC-Q101 automotive standard. Wide operating temperature range supports demanding industrial environments.
Low leakage current improves circuit efficiency and longevity. 1.56 W peak pulse power dissipation protects against transient surges. Ensures continuous circuit operation by bypassing failed LEDs. Optimized dimensions for space-constrained PCB applications.
Tested for robustness with 1 A test current rating. Single element design enables reliable LED string protection. Explore a wide selection of semiconductors and LED protection devices in EnvMart for all your industrial and electronic manufacturing needs.
Explore more products in our Discrete Semiconductor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation rating of this model is 1.56 W, which helps protect against transient surges in LED applications.
The minimum breakdown voltage for this device is 5.5 V, ensuring reliable operation in LED circuits.
This model can operate at a maximum temperature of 150°C, making it suitable for demanding environments.
The maximum reverse leakage current is 250 μA, which enhances the efficiency of the circuit.
The dimensions of the POWERMITE package are 1.15 mm in height, 2.05 mm in length, and 2.18 mm in width, making it compact for PCB layouts.
The test current rating for this device is 1 A, ensuring it can handle typical operational conditions.
This model features a single diode configuration optimized for uni-directional protection.
Yes, it is compliant with the Automotive Standard AEC-Q101, ensuring high reliability for automotive applications.
The operating temperature range for the NUD4700SNT1G is from -40°C to 150°C, suitable for various environments.
This device uses a surface mount type, specifically in a POWERMITE package, suitable for automated assembly.
There is one element per chip in the NUD4700SNT1G, ensuring dedicated protection for LED strings.
This LED shunt protector is ideal for automotive and industrial LED lighting applications requiring high reliability and transient voltage suppression.
