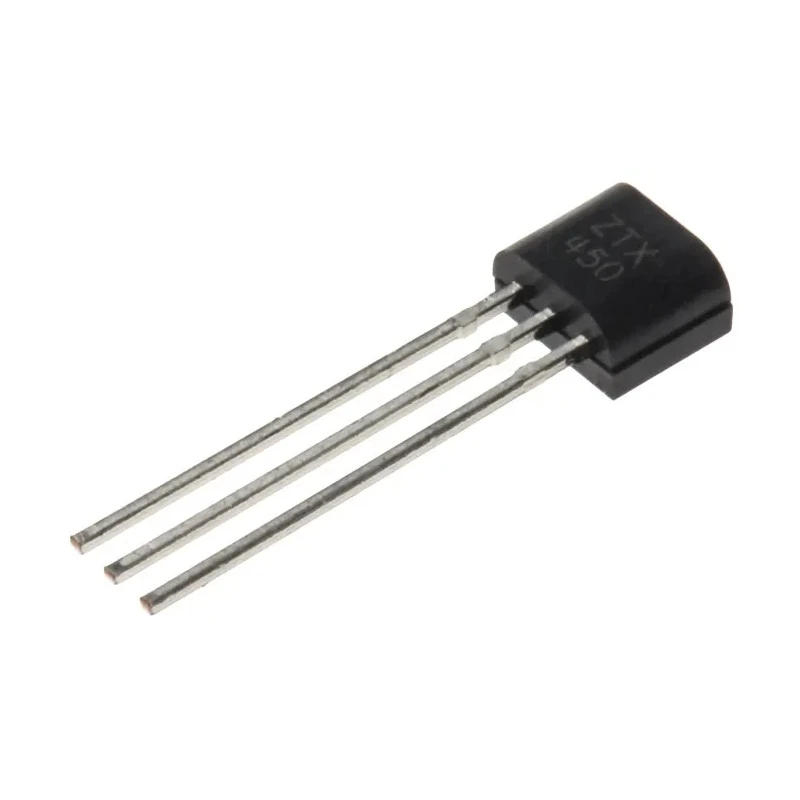

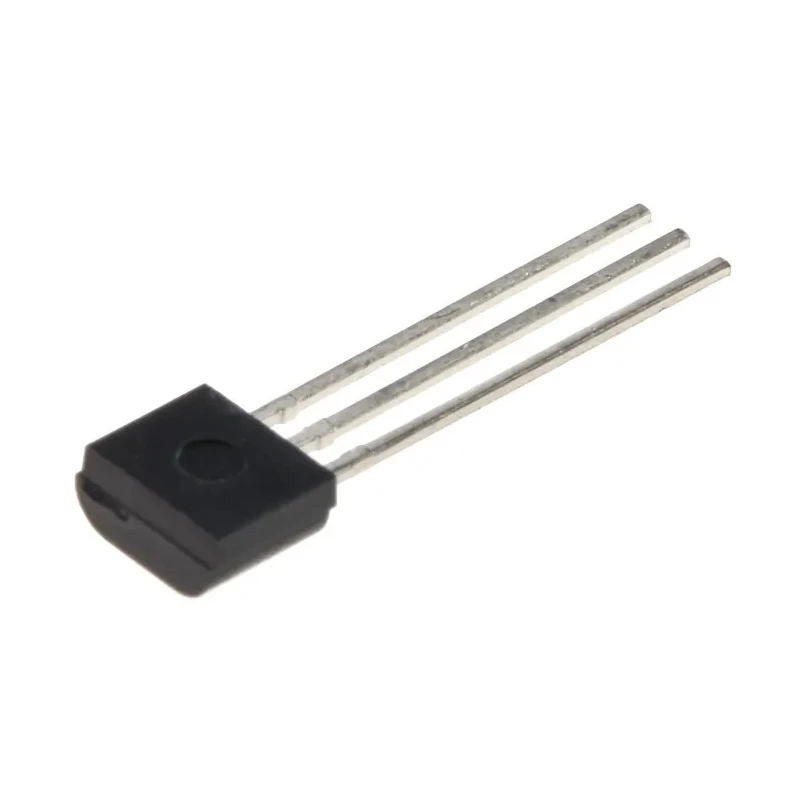

DiodesZetex General Purpose NPN Transistor 1 A Collector Current 45 V E-Line Through Hole ZTX450

DiodesZetex ZTX450 is a robust general purpose NPN transistor designed for discrete semiconductor applications requiring reliable switching and amplification. It supports a maximum collector current of 1A and a collector-emitter voltage of 45V, making it suitable for various industrial and electronic circuits.

The device comes in a 3-pin E-Line package type, which facilitates through hole mounting on PCBs. Its single transistor configuration with NPN polarity supports versatile design uses in power electronics and signal amplification.

The ZTX450 transistor offers a maximum power dissipation of 1 watt, ensuring effective thermal performance under load. It operates efficiently over a wide temperature range from -55°C to 200°C, accommodating harsh industrial environments and maintaining stable operation.

With a minimum DC current gain (hFE) of 10 and a transition frequency of 150 MHz, this transistor is effective in high-frequency switching and amplification tasks. Its maximum collector-base voltage (VCBO) is 60 V, and the maximum emitter-base voltage (VEBO) is 5 V, providing robust electrical endurance.

This transistor is suitable for use in electronics manufacturing, power connector assemblies, and semiconductor discrete component applications in sectors including industrial automation, HVAC systems, telecommunications, and instrumentation.

Package includes one ZTX450 transistor in E-Line, ready for through hole PCB mounting. Explore more semiconductor and transistor products at EnvMart for your industrial and electronic component needs.
