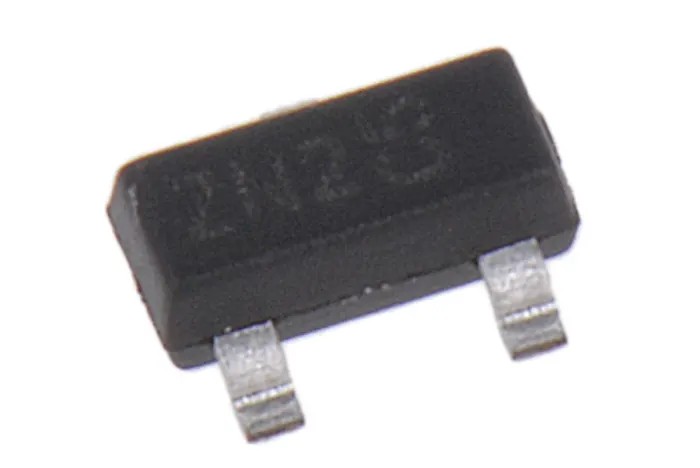

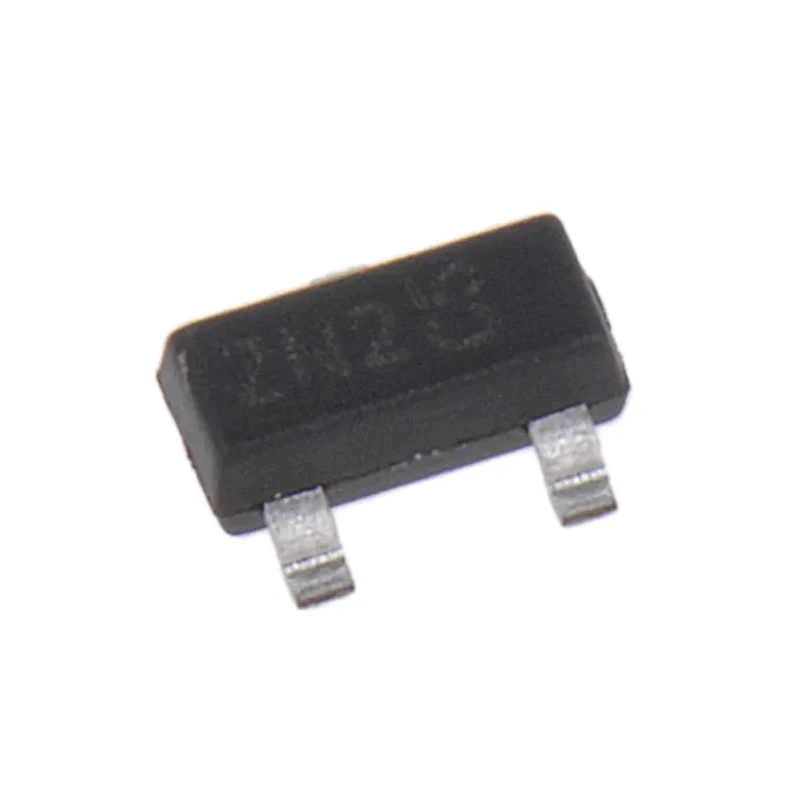

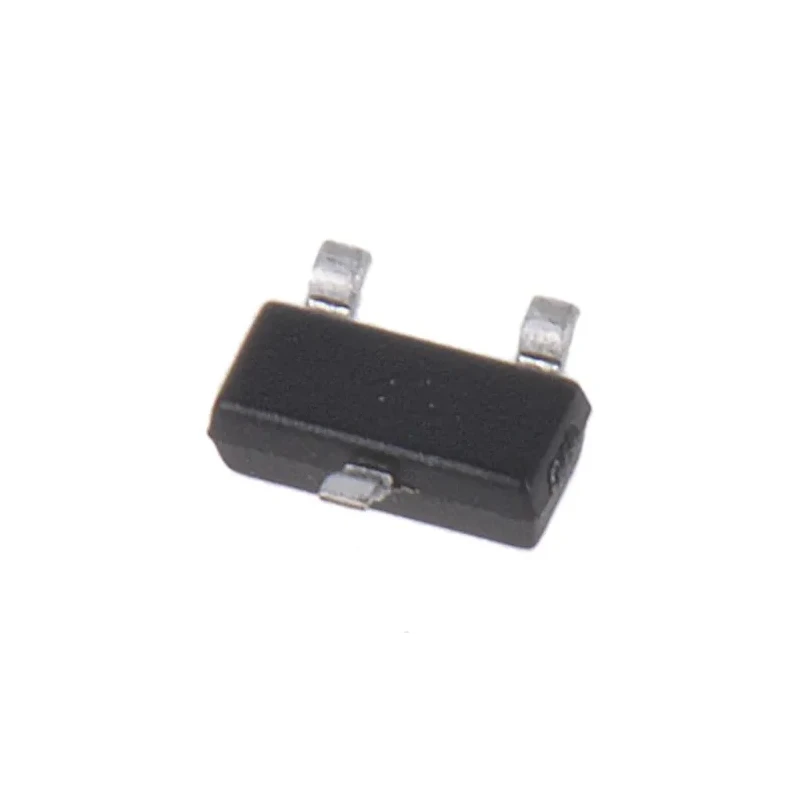

DiodesZetex Transistor NPN 2 A, 40 V, 3-Pin SOT-23 Surface Mount DSS4240T-7

DiodesZetex DSS4240T-7 is a general-purpose NPN bipolar junction transistor designed for reliable operation in electronic circuits requiring up to 2 Amperes collector current and 40 Volts collector-emitter voltage. This transistor comes in a compact 3-pin SOT-23 surface mount package, making it ideal for modern PCBs where space saving is critical.

It offers a minimum DC current gain (hFE) of 150 and a maximum power dissipation of 600 milliwatts, suited for low power amplification and switching tasks in industrial, automotive, and consumer electronic applications. Its wide operating temperature range from -55°C to 150°C enables reliable performance in harsh environments.

The device features a high transition frequency of 100 MHz, suitable for high-frequency signal processing and switching circuits. Compliance with automotive standard AEC-Q101 ensures quality suitable for automotive and industrial uses. The small device size (3 mm length, 2.5 mm width, 1.1 mm height) supports compact circuit designs.

Maximum DC collector current of 2 Amperes ensures efficient current handling. Collector-Emitter voltage rated at 40 Volts for robust operation in circuits. Surface mount package type SOT-23 with 3-pin configuration for compact PCB designs.

Minimum DC current gain (hFE) of 150 provides reliable amplification. Maximum power dissipation is 600 milliwatts, suitable for low power applications. Wide operating temperature range from -55°C to 150°C enhances durability.

Maximum transition frequency of 100 MHz supports high-frequency switching. Automotive standard AEC-Q101 compliance ensures quality and reliability. Compact device dimensions: length 3 mm, width 2.5 mm, height 1.1 mm. Polarity is NPN, suitable for a variety of electronic applications.

This transistor is widely used in electronic manufacturing, automotive electronics, communication equipment, and industrial control systems. The compact SOT-23 package allows for automated surface mounting, contributing to enhanced production efficiency and reliability.
