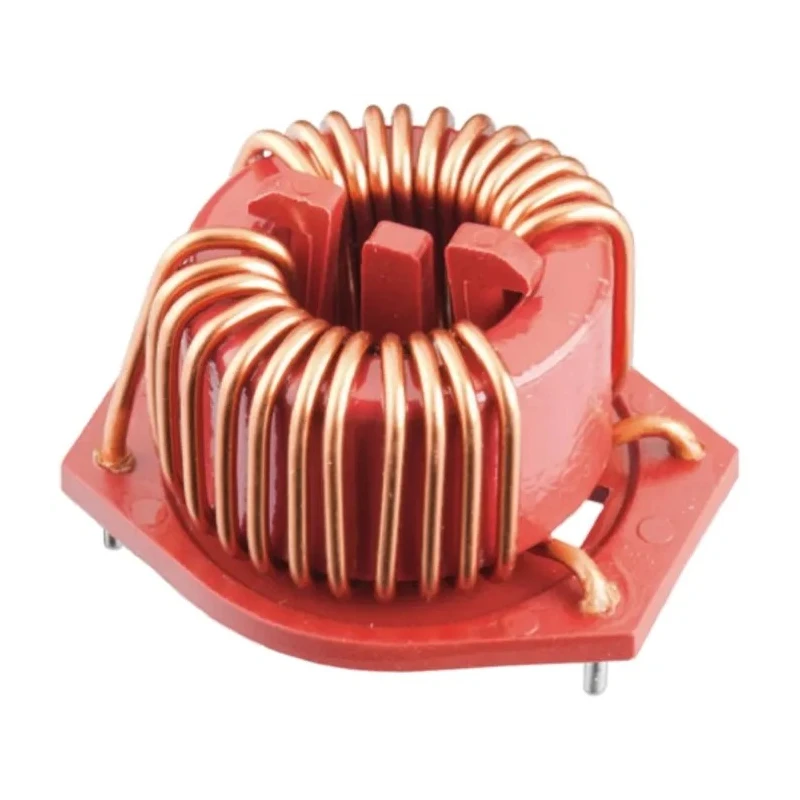

Wurth Elektronik Surface Mount Common Mode Choke WE-CMBH 3.3 mH Moulded ±30% 5 A 744834433
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | -40°C to +125°C |
| Height | 22mm |
| Length | 32.5mm |
| Depth | 28mm |
| Packaging | Tray |
| Series | WE-CMBH |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 3.3mH |
| Standards/Approvals | RoHS, REACH, IEC 61249-2-21 |
| Package/Case | L |
| Maximum DC Current | 5A |
| Pin Count | 4 |
| Maximum DC Resistance | 37mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Moulded |
Key Features
- Compact moulded design with low capacitance winding style for broadband screening.
- Operating temperature range from -40°C to +125°C.
- Surface mount termination for easy PCB assembly.
- Inductance tolerance of ±30% ensuring consistent performance.
- Four-pin configuration with a length of 32.5 mm and height of 22 mm.
- Manufactured with a ferrite core material for effective noise suppression.
- Compliance with RoHS, REACH, and IEC 61249-2-21 standards.
- Packaged in trays suitable for production efficiency.
Product Description
Wurth Elektronik 744834433 Surface Mount Common Mode Choke offers reliable common mode noise suppression with a ferrite core and moulded construction. It has an inductance of 3.3 mH and is designed to handle a maximum DC current of 5 A, making it suitable for power electronic circuits, power line filters, and radio interference suppression in motors.
The choke features a low capacitance winding style for broadband screening, enabling efficient operation across a range of frequencies. Its compact size with dimensions of 32.5 mm length, 22 mm height, and 28 mm depth ensures it fits well in surface mount applications.
Designed to operate between -40°C and +125°C, this component provides robust performance in demanding industrial environments. The four-pin surface mount style facilitates ease of assembly and integration into PCBs.
The WE-CMBH series meets stringent industry standards including RoHS, REACH, and IEC 61249-2-21, verifying its compliance with environmental and safety regulations. The chassis is moulded for mechanical stability, and the ferrite core enhances its magnetic and electrical characteristics.
Compact moulded design with low capacitance winding style for broadband screening. Operating temperature range from -40°C to +125°C. Surface mount termination for easy PCB assembly. Inductance tolerance of ±30% ensuring consistent performance.
Four-pin configuration with dimensions 32.5 mm x 22 mm x 28 mm. Manufactured with ferrite core material for effective noise suppression. Certified compliant with RoHS, REACH, and IEC 61249-2-21 standards. Ideal for power electronics, power line filters, and motor noise suppression.
This component is packaged in trays and ready for insertion into machinery, improving production efficiency. It suits applications in industrial electronics, automotive power lines, manufacturing equipment, and HVAC motor noise filtering.
Explore more electronic components and Surface Mount Inductors on EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 3.3 mH, providing effective noise suppression in various applications.
The maximum DC current rating for this choke is 5 A, making it suitable for power electronic circuits.
It has a length of 32.5 mm, a height of 22 mm, and a depth of 28 mm, which facilitates its integration into surface mount applications.
The operating temperature range for this model is from -40°C to +125°C, allowing it to perform in demanding environments.
It is manufactured with a ferrite core material, which enhances its magnetic and electrical characteristics for effective noise suppression.
The inductance tolerance for this unit is ±30%, ensuring consistent performance across various applications.
This choke complies with RoHS, REACH, and IEC 61249-2-21 standards, verifying its adherence to environmental and safety regulations.
It is packaged in trays, which enhances production efficiency and facilitates easy handling during assembly.
This model features a surface mount termination style, allowing for easy assembly onto PCBs.
It is suitable for power electronics, power line filters, and motor noise suppression, among other industrial applications.
This component has a four-pin configuration, which aids in its integration into electronic circuits.
The maximum DC resistance for this inductor is 37 mΩ, contributing to its efficiency in power applications.
