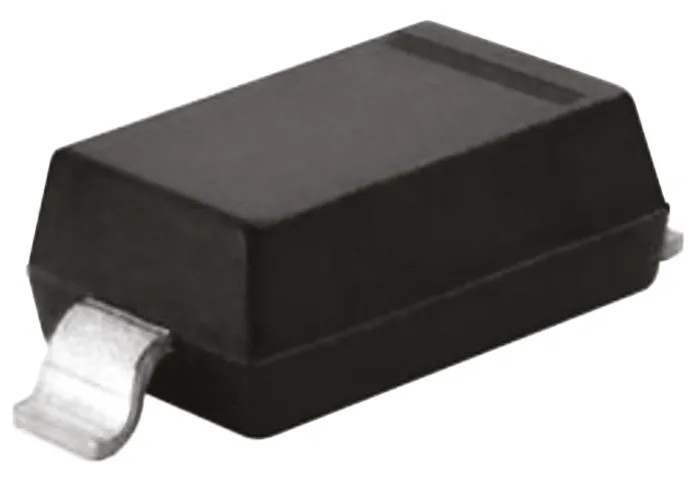

DiodesZetex Silicon Junction Single 400 mA 2-Pin Surface Mount Switching Diode SOD-123 Package BAV21W-7-F

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex Silicon Junction Single 400 mA 2-Pin Surface Mount Switching Diode SOD-123 Package BAV21W-7-F

Name: DiodesZetex Silicon Junction Single 400 mA 2-Pin Surface Mount Switching Diode SOD-123 Package BAV21W-7-F
Brand: DiodesZetex
SKU: 129098
Price: 0.04 USD
Availability: InStock



Category Switching Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	1.7mm
Length	3.85mm
Model	BAV21W-7-F
Width	1.35mm
Mount Type	Surface
Series	BAV21W
Maximum Operating Temperature	150°C
Package Type	SOD-123
Sub Type	Silicon Junction
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Power Dissipation Pd	250mW
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	2.5A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	50ns
Maximum Forward Current If	400mA
Maximum Peak Reverse Repetitive Voltage Vrrm	250V

Key Features

Compact SOD-123 surface mount package suitable for automated PCB assembly.
Maximum forward current rating is 400 mA ensuring reliable low current switching.
Low peak forward voltage of 1.25 V for efficient operation.
Wide operating temperature range from -65°C to 150°C for versatile applications.
Fast peak reverse recovery time of 50 nanoseconds ideal for high-speed switching circuits.
Maximum power dissipation of 250 mW supports moderate power electronic uses.
Pin count of 2 with a single diode junction configuration.
Peak non-repetitive forward surge current up to 2.5 A for transient conditions.

Product Description

DiodesZetex BAV21W-7-F is a silicon junction single switching diode designed for surface mount applications. It supports a maximum forward current of 400 mA and has a peak reverse repetitive voltage of 250 V. Housed in a compact SOD-123 package, this diode is optimized for automated PCB assembly lines and small form factor electronics applications. The device offers a low forward voltage drop of 1.25 V combined with a fast recovery time of 50 ns, making it suitable for switching and protection in industrial electronics, power supplies, and automotive circuits.

This diode operates reliably across a wide temperature range from -65°C up to 150°C, enabling use in harsh environments. Its peak non-repetitive forward surge current rating of 2.5 A provides robustness against transient surges. The compact physical dimensions of 3.85 mm length, 1.35 mm width, and 1.7 mm height permit high-density PCB layouts.

Typical use cases include electronic switching, signal or power rectification, and protection circuits in industrial equipment, consumer electronics, automotive electronics, and HVAC systems. The BAV21W series diode is known for consistent performance and reliability in demanding semiconductor applications.

Compact SOD-123 package helps integrate easily into surface mount device PCBs. High switching speed with 50 ns peak reverse recovery time enables efficient circuit response. Wide operating temperature supports reliability in rugged and industrial environments.

Forward voltage of 1.25 V reduces power losses in switching circuits. Peak surge and power dissipation ratings provide protection against electrical transient spikes.

Set includes one BAV21W-7-F diode in SOD-123 format supplied as tape packaging ready for automated insertion into manufacturing lines. Designed and manufactured in China, this component meets industry standard reliability for semiconductor discrete Switching Diodes.

Discover more semiconductor and discrete diode components for your industrial or laboratory electronics projects at EnvMart, your trusted source for high-quality electronic components and power semiconductors.
