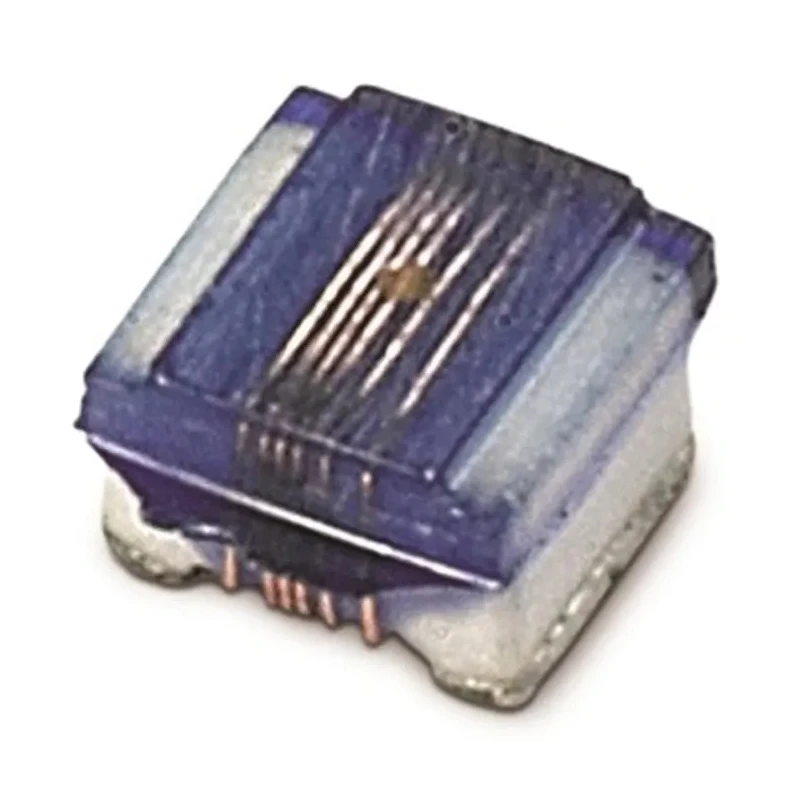

Wurth Elektronik Wirewound Surface Mount Inductor 0.39 μH ±5% 290 mA 0805C Ceramic Core WE-KI 744760239C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.28mm |
| Length | 2.28mm |
| Model | 744760239C |
| Depth | 1.7mm |
| Packaging | Tape & Reel |
| Series | WE-KI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 0.39μH |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B, IEC 61249-2-21 |
| Package/Case | 0805C |
| Maximum DC Current | 290mA |
| Pin Count | 2 |
| Maximum DC Resistance | 2.1Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 560MHz |
| Minimum Quality Factor | 35 |
| Inductor Construction | Wirewound |
Key Features
- This 0805C package inductor has a ceramic core for high thermal stability.
- It operates reliably from -40°C to 125°C.
- The construction is wirewound, offering a minimum quality factor of 35.
- Surface mount termination style ensures easy PCB assembly.
- The maximum DC resistance is 2.1 Ω supporting efficient current flow.
- Suitable for high frequency applications up to 560 MHz self-resonant frequency.
- RoHS and REACH compliant with JEDEC JS709B and IEC 61249-2-21 approvals.
- Ideal for wireless LAN, Bluetooth, and RF transceiver communication circuits.
Product Description
Wurth Elektronik 744760239C Wirewound Surface Mount Inductor is a high-performance 0.39 μH inductor featuring a ceramic core designed for high frequency applications. This inductor operates efficiently with a tight ±5% inductance tolerance and supports a maximum DC current of 290 mA. Its compact 0805C surface mount package measuring 2.28 mm length, 1.28 mm height, and 1.7 mm depth allows for space-saving on PCBs.
The wirewound construction ensures durability and reliable performance with a minimum quality factor of 35, enhancing signal integrity in RF circuits. The component sustains operating temperatures from -40°C to 125°C, suited for demanding environmental conditions. With a maximum DC resistance of 2.1 Ω, it delivers stable current flow with minimal losses.
Compliant with major industry standards including RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21, this unshielded inductor fits well in wireless LAN, Bluetooth, and other communication RF transceiver applications. The recommended soldering process is reflow soldering for best assembly results.
This 0805C package inductor has a ceramic core for high thermal stability. It operates reliably from -40°C to 125°C. The construction is wirewound, offering a minimum quality factor of 35. Surface mount termination style ensures easy PCB assembly.
The maximum DC resistance is 2.1 Ω supporting efficient current flow. Suitable for high frequency applications up to 560 MHz self-resonant frequency. RoHS and REACH compliant with JEDEC JS709B and IEC 61249-2-21 approvals.
Ideal for wireless LAN, Bluetooth, and RF transceiver communication circuits.
This inductor is manufactured in China and part of the WE-KI series from Wurth Elektronik. Its technical capabilities and compliance make it a suitable choice for industrial, manufacturing, telecommunications, and electronics design projects. Browse the full Wurth Elektronik surface mount inductor range on EnvMart for compatible components and accessories.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 0.39 μH with a tolerance of ±5%.
This model supports a maximum DC current of 290 mA.
The dimensions of the 0805C package are 2.28 mm in length, 1.28 mm in height, and 1.7 mm in depth.
The maximum DC resistance is 2.1 Ω, which supports efficient current flow.
This inductor has a maximum self-resonant frequency of 560 MHz, making it suitable for high frequency applications.
The inductor features a ceramic core and is constructed using wirewound technology.
It operates reliably within a temperature range of -40°C to 125°C.
This model utilizes a surface mount termination style, facilitating easy PCB assembly.
It is compliant with RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 standards.
This inductor is ideal for applications in wireless LAN, Bluetooth, and RF transceiver communication circuits.
The inductor is packaged in tape and reel format for convenient handling and assembly.
The minimum quality factor of this inductor is 35, enhancing signal integrity in RF circuits.
