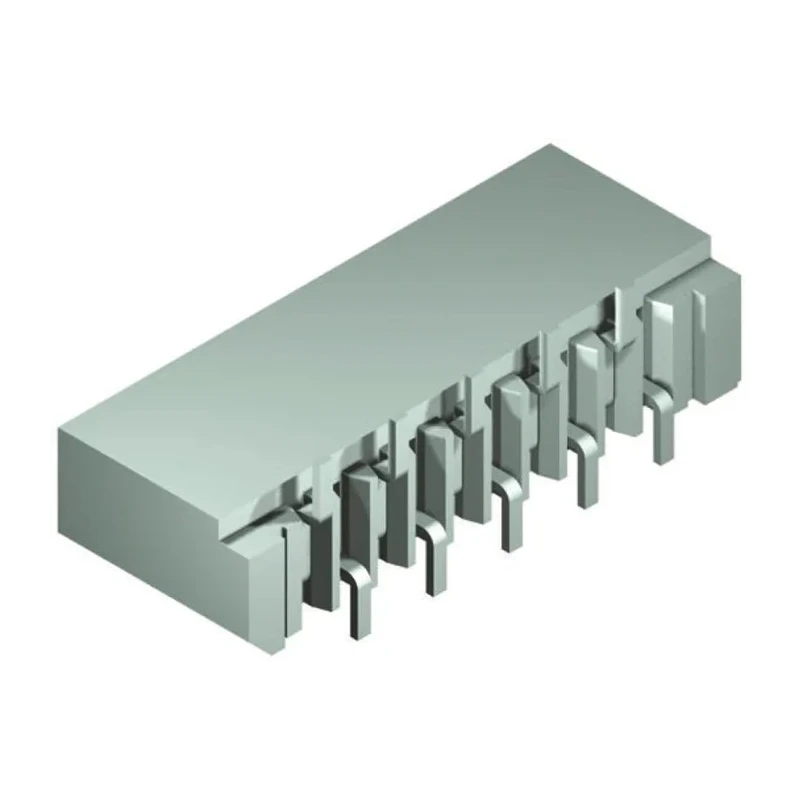

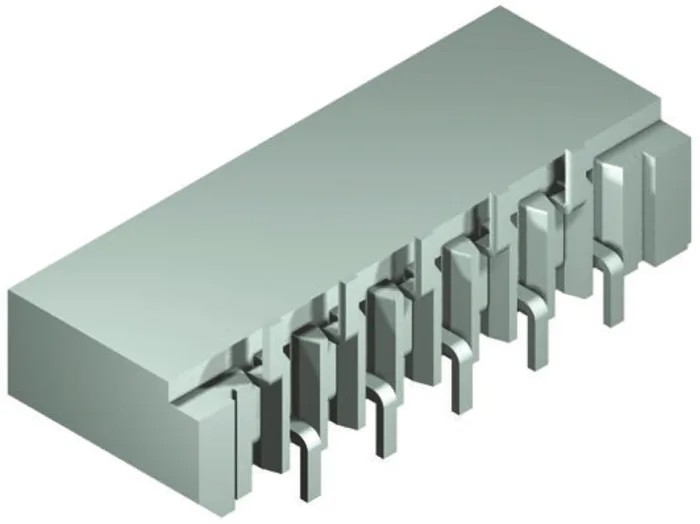

Molex 1 mm Pitch 20 Way Straight Female FPC Connector, Solder Termination, Non-ZIF, Surface Mount, Phosphor 52808-2071

Molex 52808-2071 is a high-quality 1 mm pitch 20 way straight female FPC connector with solder termination designed for surface mount technology (SMT). This connector belongs to the 52808 series featuring non-ZIF insertion force and a single row contact structure. It utilizes phosphor bronze contact material plated with tin over nickel, ensuring excellent electrical conductivity and corrosion resistance.

The thermoplastic housing is chamfered on one corner to guarantee correct orientation of the flexible printed circuit (FPC) cable during assembly. The connector contacts move slightly with the cable motion, providing a secure contact retention force and maintaining consistent electrical contact even with repeated flexing.

This FPC connector is rated for a maximum current of 500 mA and voltage up to 125 V. Operating temperature ranges from -20°C to 80°C, making it suitable for varied industrial and commercial environments. The locking mechanism incorporated into the design offers additional retention security during operation.

Its compact footprint and staggered contact design simplify PCB soldering, improving manufacturing efficiency. The connector is widely used across automotive navigation and audio systems, digital cameras, home security devices, tablets, notebook PCs, medical patient monitors, GPS units, smartphones, and other mobile communication equipment.

Manufactured in Malaysia, the Molex 52808-2071 connector meets exacting quality standards required for demanding applications requiring reliable high-density interconnection for signal and data transmission.

The connector features phosphor bronze contacts with tin over nickel plating for reliable conductivity. It supports a current rating of 500 mA and voltage rating of 125 V. The housing is made of thermoplastic material with a chamfered design for correct orientation.

Non-ZIF insertion force offers secure contact retention for FPC cables. The connector includes a locking mechanism ensuring stable connection during use. Suitable for temperatures from -20°C to 80°C, accommodating various operating environments.

It has a single row with 20 female contacts spaced at a 1 mm pitch. This compact FPC Connector is widely used in automotive, consumer electronics, medical devices, and mobile communications. Its staggered contact design facilitates easy soldering to PCBs for efficient assembly.

Manufactured in Malaysia, it ensures high quality and compliance for industrial applications. Explore the extensive range of electronic components including connectors at EnvMart for your industrial, commercial, and technological project requirements.
