TDK Film Capacitor 10 nF 500V AC 1.6 kV DC Through Hole 2-Pin 22.5mm Lead Pitch B32653A1103K289

Free Delivery in India | Lowest Global Shipping Charges

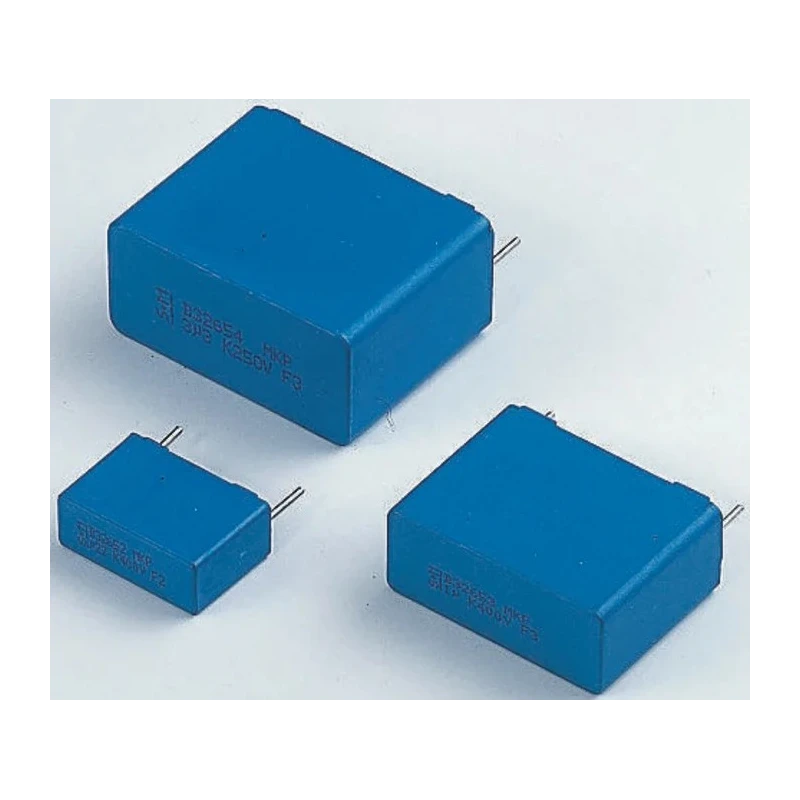

TDK Film Capacitor 10 nF 500V AC 1.6 kV DC Through Hole 2-Pin 22.5mm Lead Pitch B32653A1103K289



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	15mm
Length	26.5mm
Model	B32653A1103K289
Width	6mm
Mount Type	Through Hole
Series	B32653
Maximum Operating Temperature	100°C
Capacitance	10nF
Standards/Approvals	UL, RoHS
Pin Count	2
Rated AC Voltage	500V ac
Rated DC Voltage	1.6kV dc
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D

Key Features

This capacitor features a lead pitch of 22.5 mm and lead diameter of 0.8 mm.
It is designed with wound capacitor technology and plastic casing compliant with UL 94 V-0 standards.
The product operates reliably at temperatures up to 100°C.
Suitable for applications such as TV S-correction, TV flyback, and electronic ballast circuits.
It offers high pulse strength and contact reliability in a compact form factor.
The dimensions of the capacitor are 26.5 mm length, 15 mm height, and 6 mm width.
Meets automotive standard AEC-Q200 Rev D and complies with UL and RoHS directives.

Product Description

TDK B32653A1103K289 film capacitor is a high-quality passive electronic component designed for through-hole mounting with 2 leads. It provides a capacitance value of 10 nF and is rated for 500V alternating current (AC) and 1.6 kV direct current (DC), making it suitable for demanding electrical environments.

This capacitor uses wound capacitor technology with an internal series connection to support voltage ratings above 1250 V DC. The casing is made of flame retardant plastic (UL 94 V-0), sealed with epoxy resin for durability and safety against electrical arcing and mechanical stresses.

With a lead pitch of 22.5 mm and a lead diameter of 0.8 mm, the component is easy to install on printed circuit boards designed for through-hole components. It operates reliably in temperatures up to 100°C, meeting the automotive-grade standard AEC-Q200 Rev D, thus ensuring consistent performance in industrial and automotive applications.

Typical industrial and commercial uses include TV signal correction circuits, TV flyback transformers, electronic ballast circuits, and other general-purpose electronic assemblies requiring stable capacitance at high voltage peaks and pulses.

10 nF capacitance with 500V AC and 1.6kV DC ratings. Dimensions: 26.5 mm length x 15 mm height x 6 mm width. Lead pitch: 22.5 mm, lead diameter: 0.8 mm. Plastic UL94 V-0 flame retardant case with epoxy seal. High pulse strength and contact reliability.

Automotive standard: AEC-Q200 Rev D compliance. Meets UL and RoHS approval standards.

This film capacitor is suited for use in electronic components manufacturing, testing equipment, automotive electronics, HVAC controls, power supply circuits, and other industrial electronic assemblies.

Explore the Electronics Components > Film Capacitor category for more high-quality capacitors and electronic components on EnvMart.
