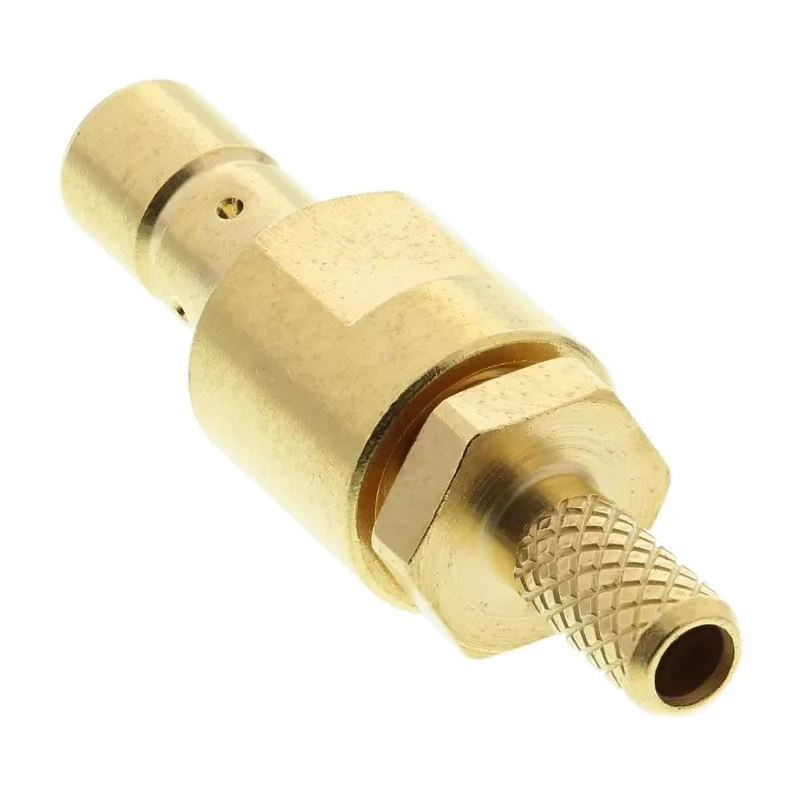

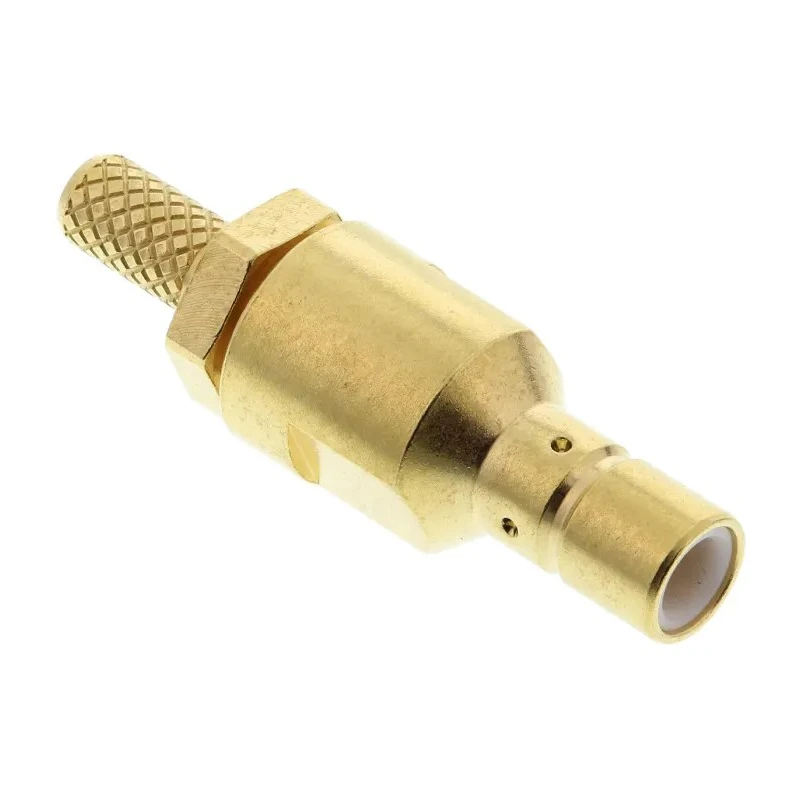

Radiall Standard Series Coaxial Connector Cable Female SMB, 50 Ω, Straight Body Crimp R114239000W
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | Radiall |
| Orientation | Straight |
| Model | R114239000W |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | Standard |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG179, RG187, RG188, RG-316 |
| Minimum Operating Temperature | -65°C |
| Polarity | Reverse |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMB |
| Body Plating | Gold |
| IMS, Jack Panel Mount SMB Connector, 50Ω, Solder Termination, Straight BodyBrand | IMS |
| IMS SMB Series Coaxial Connector Cable Male SMB, 50 Ω, Straight Body CrimpBrand | IMS |
Key Features
- This coaxial connector features a female SMB connector type with 50 ohm impedance.
- It has a straight body orientation and uses crimp termination for secure cable attachment.
- Compatible with RG179, RG187, RG188, and RG-316 cable types.
- The connector body is gold plated for enhanced durability and corrosion resistance.
- Operating temperature ranges from -65°C to a maximum of 165°C.
- Constructed with brass contact material and gold over nickel contact plating to ensure excellent conductivity.
- Includes a bulkhead mount type for robust installation options.
- Complies with MIL-C-39012 standard for sub-miniature connectors with snap-on coupling.
Product Description
Radiall R114239000W is a Standard Series Coaxial Connector Cable with a female SMB connector designed for high-frequency applications up to 4 GHz. Its 50 Ω impedance ensures signal integrity for RF connectors requiring precision and reliability.
This product features a straight body design with crimp termination type, supporting RG179, RG187, RG188, and RG-316 coaxial cables. The connector body is plated with gold, enhancing durability and corrosion resistance, while the contact material is brass plated with gold over nickel for superior electrical performance.
It supports a wide operating temperature range from -65°C to 165°C, making it suitable for diverse industrial, laboratory, and telecommunications environments.
The bulkhead mounting capability facilitates robust mechanical installation. This connector type complies with MIL-C-39012 standards and offers reverse polarity with female contact to meet specific signal requirements.
This coaxial connector features a female SMB connector type with 50 ohm impedance. It has a straight body orientation and uses crimp termination for secure cable attachment. Compatible with RG179, RG187, RG188, and RG-316 cable types.
The connector body is gold plated for enhanced durability and corrosion resistance. Operating temperature ranges from -65°C to a maximum of 165°C. Constructed with brass contact material and gold over nickel contact plating to ensure excellent conductivity.
Includes a bulkhead mount type for robust installation options. Complies with MIL-C-39012 standard for sub-miniature connectors with snap-on coupling. The connector polarity is reverse with female contact gender.
This Coaxial Connector cable is suitable for use in electronics manufacturing, telecommunications, laboratory equipment, and other high-frequency RF applications requiring reliable connection performance.
Explore more connectors and related components from Radiall and other leading manufacturers at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an operating frequency of up to 4 GHz, ensuring effective signal integrity for high-frequency applications.
It is compatible with RG179, RG187, RG188, and RG-316 coaxial cable types, allowing for versatile connectivity options.
The connector has an impedance of 50 Ω, which is standard for RF applications requiring reliable signal transmission.
The operating temperature range is from -65°C to a maximum of 165°C, making it suitable for various industrial and laboratory environments.
This unit features crimp termination, providing a secure and reliable connection for the attached cable.
The contact material is brass, and it is plated with gold over nickel to enhance conductivity and corrosion resistance.
Yes, it includes a bulkhead mount type, allowing for robust installation in various applications.
This model features reverse polarity with a female contact gender, which is important for certain signal requirements.
It complies with the MIL-C-39012 standard for sub-miniature connectors, ensuring it meets specific performance criteria.
The connector has a straight body orientation, which is typical for many coaxial applications.
This model is classified as a standard size, making it suitable for a range of applications in electronics and telecommunications.
The country of origin for this product is India, indicating where it was produced.
