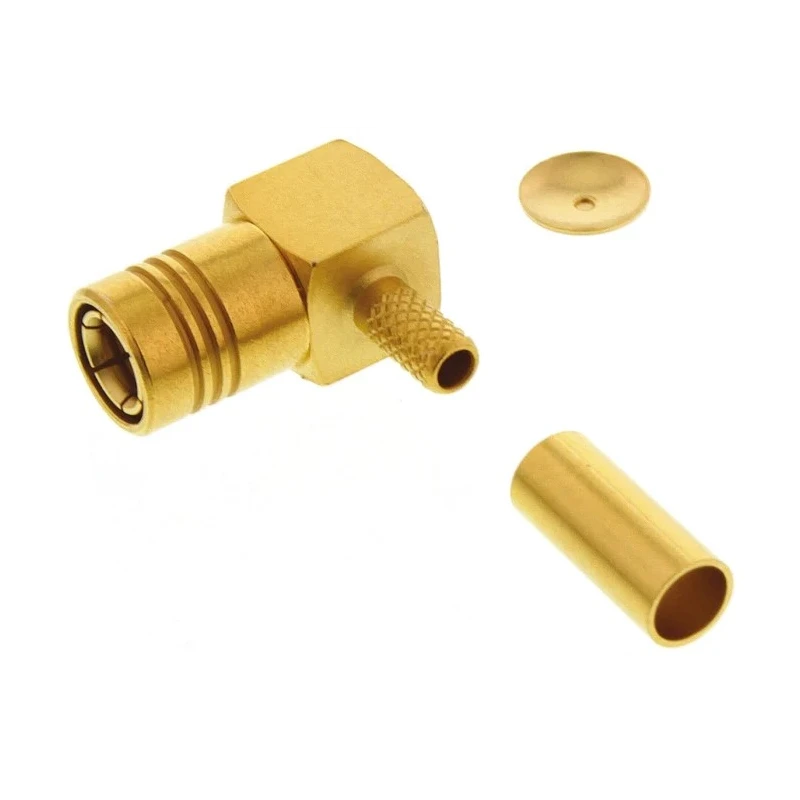

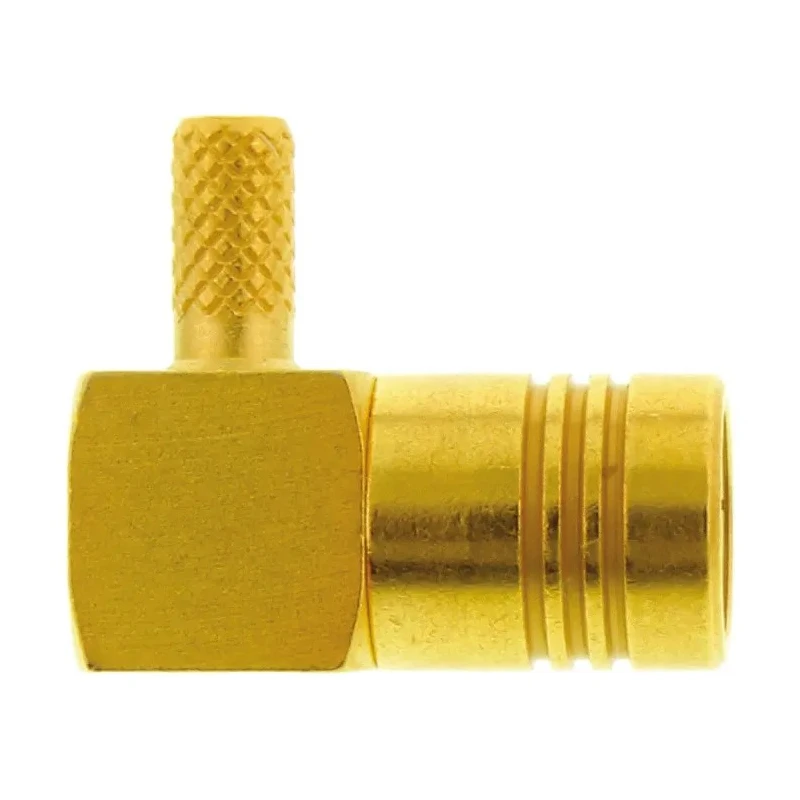

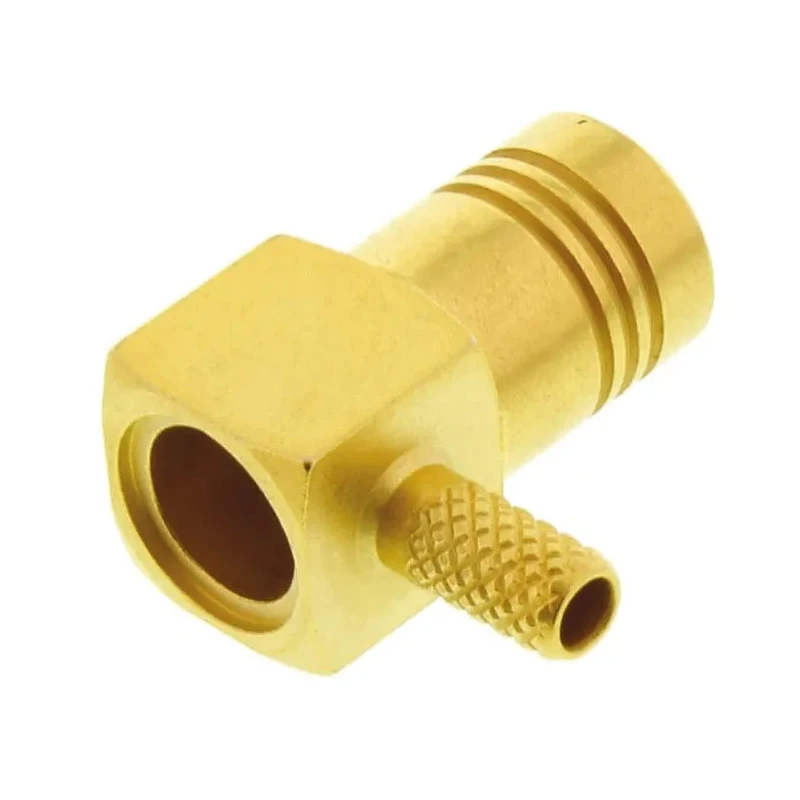

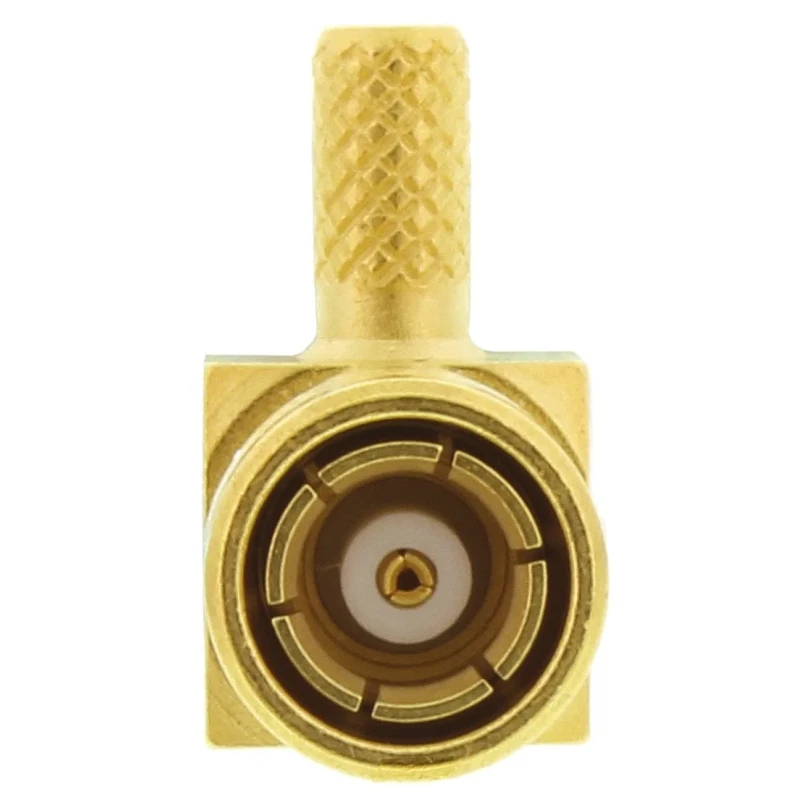

Radiall SMB Series Coaxial Connector Cable Male SMB 50 Ω Right Angle Body Crimp R114186000W
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | Radiall |
| Orientation | Right Angle |
| Model | R114186000W |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | SMB |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG179, RG187, RG188, RG-316 |
| Minimum Operating Temperature | -65°C |
| Polarity | Reverse |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMB |
| Body Plating | Gold |
| SMB CRIMP ELB PLGBrand | TE Connectivity |
Key Features
- Coaxial connector type is SMB with a standard size for reliable signal transmission.
- Right angle orientation offers space-saving cable routing solutions.
- Compatible with RG179, RG187, RG188, and RG-316 cable types.
- Gold plated body and contacts ensure superior corrosion resistance and signal integrity.
- Operating frequency up to 4 GHz supports high-frequency applications.
- Temperature range from -65°C to 165°C for harsh environment usage.
- Crimp termination type for secure and durable cable connection.
- Contact material is beryllium copper with gold plating over nickel for enhanced conductivity.
Product Description
Radiall R114186000W SMB Series Coaxial Connector Cable Male SMB with 50 Ω impedance and right angle body crimp termination is designed for reliable and high-quality RF coaxial connections. The connector features a gold plated body and contacts that provide excellent corrosion resistance and consistent electrical performance over extended use.
This SMB coaxial connector supports operating frequencies up to 4 GHz, making it suitable for a wide range of electronic component applications including telecommunications, laboratory testing, and industrial systems requiring precise signal transmission.
The connector is compatible with various cable types such as RG179, RG187, RG188, and RG-316, enabling flexible integration into existing harnesses or custom cable assemblies. With a temperature operating range from -65°C to 165°C, it is capable of performing reliably in diverse and challenging environmental conditions.
The crimp termination ensures a secure mechanical and electrical connection, while the right angle body design assists in space-constrained applications offering better cable routing and management.
Standard SMB coaxial connector type for robust performance. Right angle orientation for efficient cable management. Gold plated beryllium copper contacts and body for durability and conductivity. Supports high-frequency signals up to 4 GHz for communication systems.
Wide operating temperature window from -65°C to 165°C. Compatible with common RG-type coaxial cables. Bulkhead mounting option for secure panel installation. Crimp termination for reliable and lasting cable connections. Ideal for industrial, laboratory, telecommunication, and electronic manufacturing applications.
Explore our full range of Coaxial Connectors and electronic components at EnvMart to find the ideal solutions for your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this connector is 4 GHz, making it suitable for high-frequency applications.
This model is compatible with RG179, RG187, RG188, and RG-316 cable types, allowing for flexible integration into existing systems.
The connector operates within a temperature range of -65°C to 165°C, enabling reliable performance in harsh environments.
This connector features a crimp termination type, ensuring a secure and durable cable connection.
The contacts are made of beryllium copper and are plated with gold over nickel, which enhances conductivity and corrosion resistance.
The orientation of this connector is right angle, which helps in space-saving cable routing solutions.
This model has an impedance rating of 50 Ω, which is standard for many RF applications.
The body of this connector is plated with gold, providing excellent corrosion resistance and signal integrity.
Yes, this connector offers a bulkhead mounting option for secure panel installation.
The contact gender of this connector is male, which is standard for many coaxial applications.
This connector belongs to the SMB series, known for its reliable performance in RF applications.
The country of origin for this connector is India.
