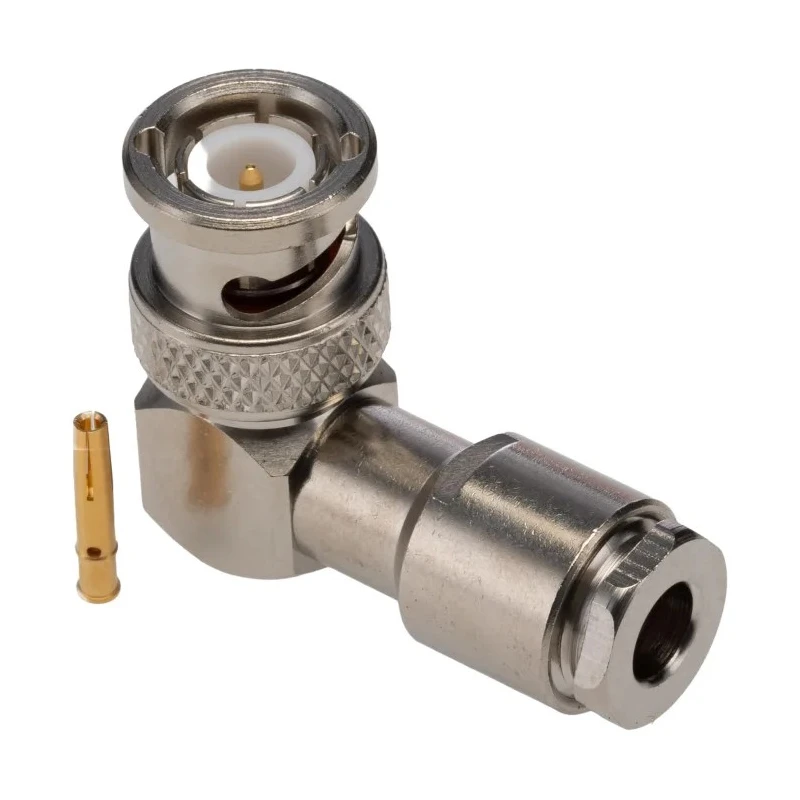

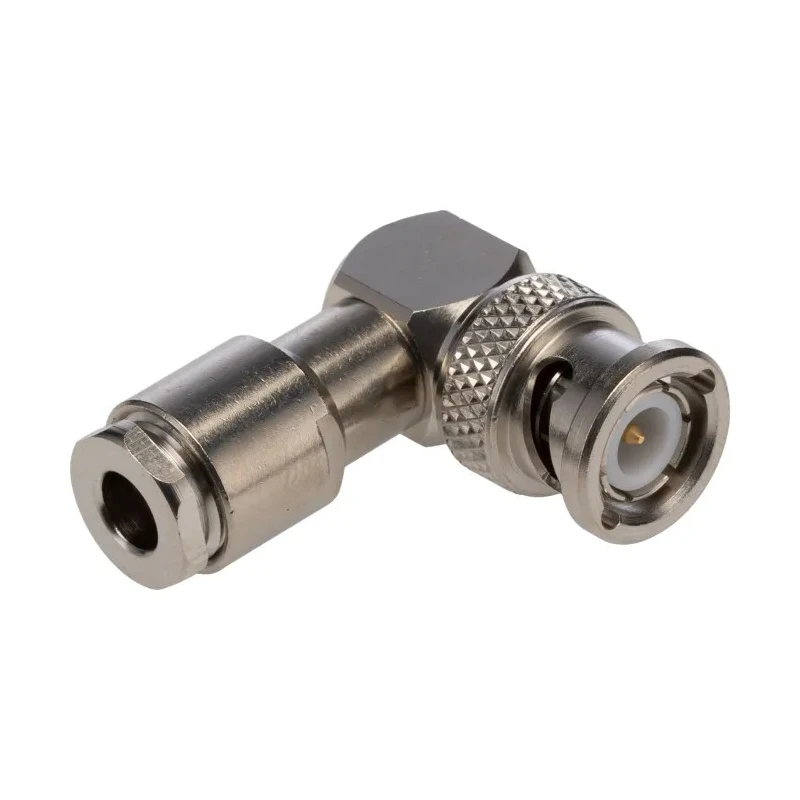

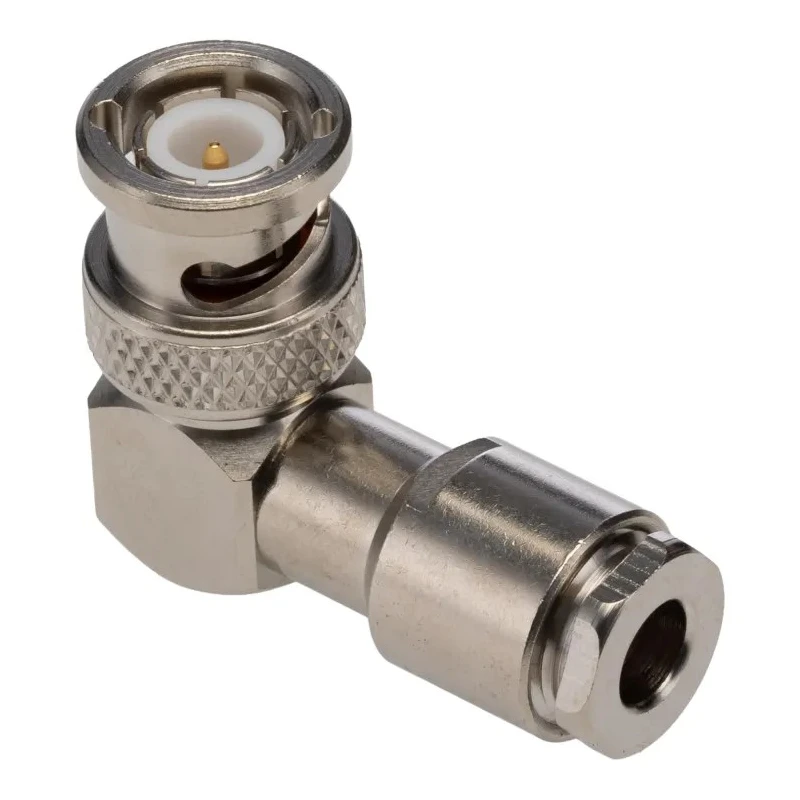

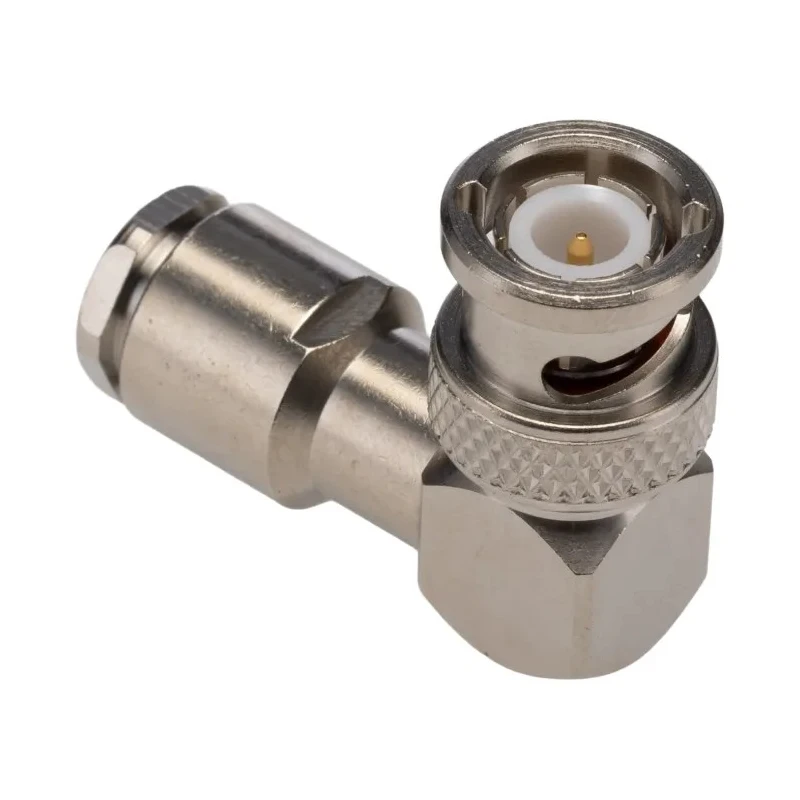

Radiall BNC Series Coaxial Connector Cable Male BNC 50 Ω Right Angle Body Clamp R141156000

Radiall R141156000 BNC Series Coaxial Connector Cable Male 50 Ω Right Angle Body Clamp is engineered for demanding RF coaxial cable applications requiring reliable signal transmission up to 4GHz frequency. It features a robust 90° right angle brass body with nickel plating that offers protection against corrosion and mechanical wear in industrial, laboratory, and communication equipment setups.

This clamp termination type is optimized for use with RG58 and RG142 cables, securing the cable firmly to maintain stable electrical contact and mechanical integrity. The gold-plated brass male contact enhances signal quality by reducing connectivity resistance and oxidation risks.

Designed to endure a wide operating temperature range from -65°C to 165°C, this connector is suitable for harsh environmental conditions including outdoor and industrial settings. The 50Ω impedance matches common RF cable systems ensuring minimal signal reflection and loss, essential for high-frequency transmission in testing, measurement, and broadcasting equipment.

The standard size and normal polarity characteristics make the connector versatile for use within commercial BNC series connector ranges. Its nickel plating and gold contact plating provide extended durability and performance consistency in repetitive connect/disconnect scenarios.

Applications range from telecommunications, aerospace, and defense industries to laboratory instrumentation requiring precise coaxial cabling solutions. Radiall's proven manufacturing quality assures dependable performance in high-reliability applications.

Constructed with brass body and gold-plated brass center contacts for enhanced conductivity and corrosion resistance. Right angle clamp plug design enables compact installation and effective cable management. Operates up to 4GHz, supporting high-frequency RF applications.

Compatible with RG58 and RG142 cables, secured via clamp termination. Nickel-plated body provides mechanical durability and corrosion protection. Wide operating temperature range of -65°C to 165°C suits industrial environments.

Normal polarity ensures compatibility with standard BNC systems. 50Ω impedance maintains signal integrity with minimal losses.

This Radiall coaxial connector is ideal for electronics assembly, telecommunications infrastructure, testing laboratories, manufacturing, and other industrial applications demanding high-quality coaxial cable connectors.
