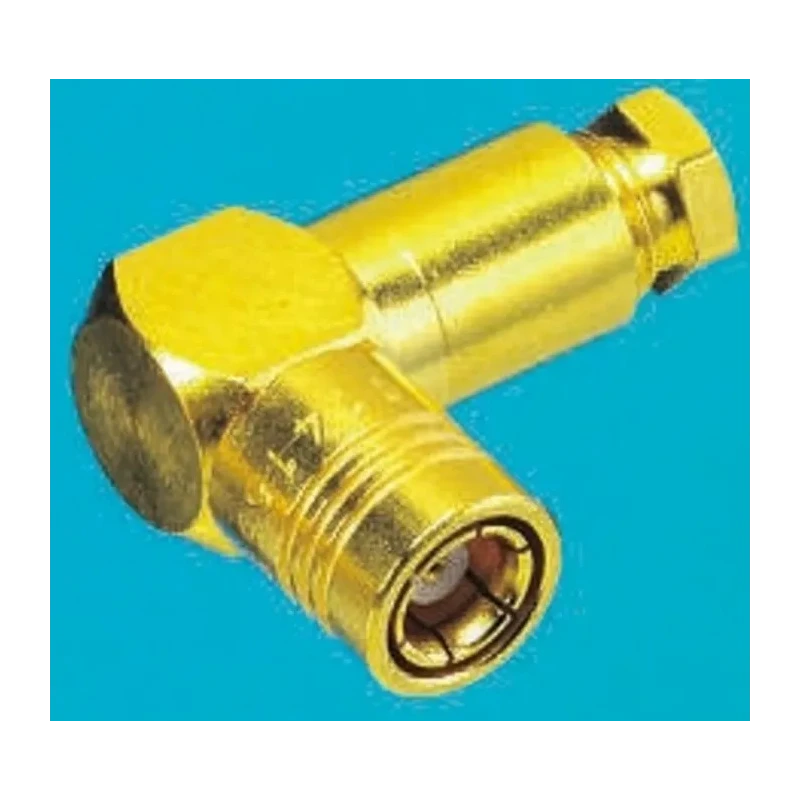

Radiall SMB Series Coaxial Connector Cable Male SMB, 50 Ω, Right Angle Body Clamp R114163000W

Radiall R114163000W SMB Series Coaxial Connector Cable Male SMB, 50 Ω, Right Angle Body Clamp is a sub-miniature RF coaxial cable connector designed for precision and reliability in high-frequency communications.

The connector features a 50 ohm impedance critical to maintaining signal integrity across RF transmission lines. Its right angle body is ideal for installations with limited space, allowing for efficient cable routing without bending or stress.

Constructed with a gold plated nickel body and gold over nickel contact plating, this clamp termination connector assures excellent corrosion resistance and superior electrical conductivity. The contact is made from beryllium copper, offering high mechanical strength and reliable performance under varied operating conditions.

This connector supports cable types such as RG178 and RG196, ensuring versatility in assembly applications. With an operating frequency up to 4 GHz and temperature tolerance from -55°C to 100°C, it performs well in demanding industrial, telecommunications, and laboratory environments.

The SMB series connectors conform to MIL-C-39012 standards featuring a snap-on coupling mechanism that guarantees secure, quick connections and disconnections. This product is suitable for professional RF signal transmission use cases including industrial, commercial, and laboratory electronic testing equipment.

50 ohm impedance ensures signal integrity for RF applications. Right angle orientation optimizes space usage in cable assemblies. Gold plated body and contact plating provide corrosion resistance and reliable conductivity.

Suitable for RG178 and RG196 cable types with clamp termination. Operating frequency up to 4 GHz supports a wide range of communication equipment. Temperature operating range from -55°C to 100°C for varied environmental conditions.

Male connector gender with standard polarity for versatile compatibility. Bulkhead mounting type provides secure cable attachment. Contact material constructed from beryllium copper for optimum mechanical and electrical properties.

Complies with MIL-C-39012 standard for sub-miniature connectors with snap-on coupling.
