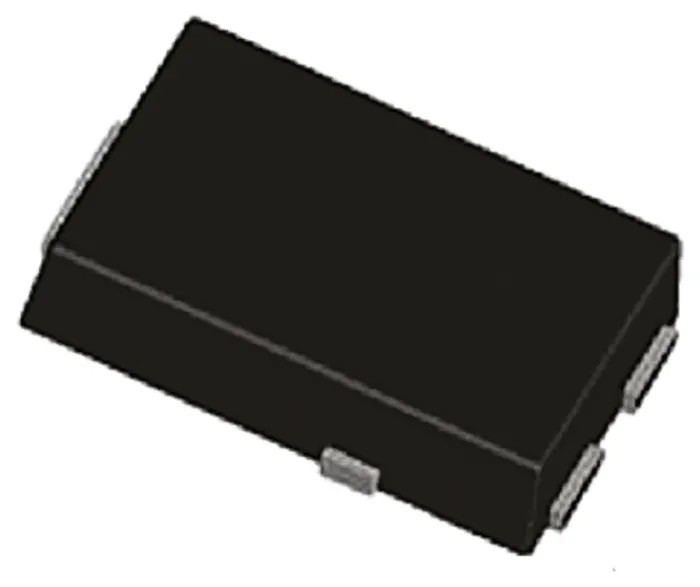

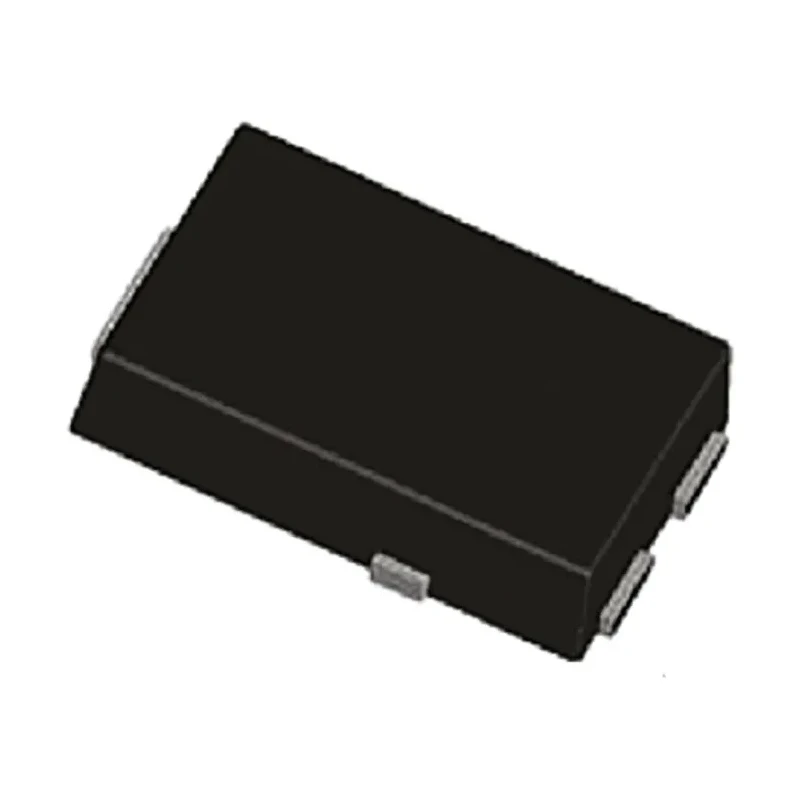

Vishay 90 V 10 A Schottky Diode Surface Mount TO-277 3-Pin SS10PH9-M3/86A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 4.35mm |
| Model | SS10PH9-M3/86A |
| Width | 6.15mm |
| Mount Type | Surface |
| Series | SS10PH9 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 90V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 0.88V |
Key Features
- The diode has a maximum continuous forward current of 10 A.
- It features a peak reverse repetitive voltage rating of 90 V.
- The device has a low maximum forward voltage of 0.88 V.
- It is designed with a fast switching action and very low reverse recovery time.
- The diode operates reliably within a temperature range from -55°C to 175°C.
- It has a three-pin configuration suitable for efficient circuit designs.
- Peak non-repetitive forward surge current capability is up to 200 A.
- Physical dimensions include length 4.35 mm, width 6.15 mm, and height 1.2 mm.
Product Description
Vishay SS10PH9-M3/86A Schottky Diode is a robust semiconductor component designed for power electronics applications requiring fast switching and low power loss. It is housed in a TO-277 package and intended for surface mount installations with three pins.
This diode delivers a maximum continuous forward current of 10 A and withstands peak reverse repetitive voltages up to 90 V, making it suitable for demanding power rectification tasks. Its maximum forward voltage of 0.88 V ensures efficient operation with minimal power dissipation.
The diode’s fast switching capability and very low reverse recovery time provide advantages in high-frequency circuits and switching power supplies. It can operate reliably across a broad temperature range from -55°C to 175°C, suitable for industrial, automotive, and commercial electronic systems.
Key physical dimensions of the device are 4.35 mm in length, 6.15 mm width, and 1.2 mm height, enabling integration within compact electronic assemblies. The peak non-repetitive forward surge current of 200 A strengthens its durability against transient conditions.
The diode supports high performance in power supply rectification and protection. It ensures fast switching for efficient energy conversion and signal control. The low forward voltage reduces heat generation and enhances energy efficiency.
Broad operating temperature range suits various industrial and automotive environments. Compact TO-277 surface mount package facilitates board space optimization. Robust surge current capacity adds resilience in transient-heavy circuits.
This Schottky diode is ideal for use in power supplies, DC-DC converters, freewheeling diodes, and protection circuits in industrial automation, telecommunications, and consumer electronics.
Explore more Schottky diodes and rectifiers in the Semiconductor category on EnvMart for quality and reliable electronic components.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 10 A.
This model has a peak reverse repetitive voltage rating of 90 V.
The physical dimensions of the diode are 4.35 mm in length, 6.15 mm in width, and 1.2 mm in height.
The maximum forward voltage of this diode is 0.88 V.
It operates reliably within a temperature range from -55°C to 175°C.
The peak non-repetitive forward surge current capability is up to 200 A.
This diode features a three-pin configuration.
The package type for this model is TO-277, suitable for surface mount installations.
This Schottky diode is suitable for power supplies, DC-DC converters, freewheeling diodes, and protection circuits in various electronic systems.
The peak reverse current is rated at 10 μA.
This diode belongs to the SS10PH9 series.
This model is a Schottky rectifier.
