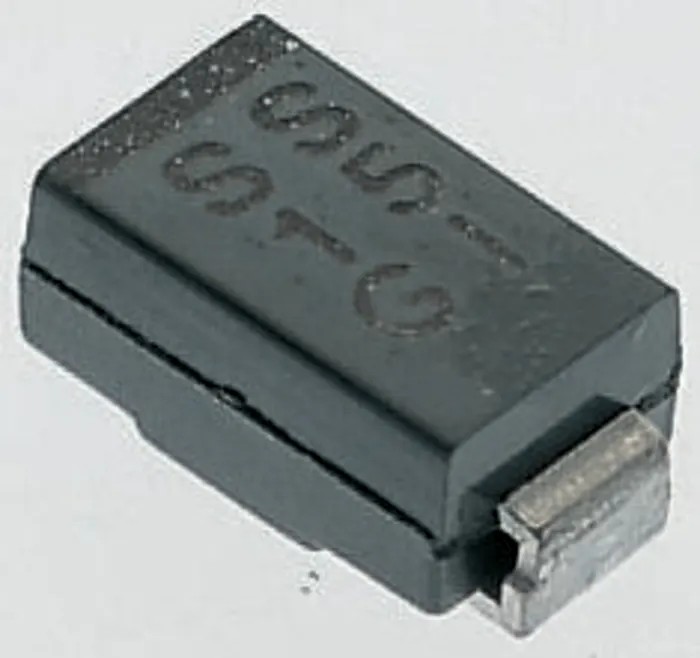

Vishay 1-Element Bi-Directional TVS Diode 400W 2-Pin Surface Mount DO-214 SMAJ12CA-E3/61
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.09mm |
| Length | 4.5mm |
| Model | SMAJ12CA-E3/61 |
| Width | 2.79mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 19.9V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 13.3V |
| Maximum Reverse Stand-off Voltage Vwm | 12V |
| Peak Pulse Power Dissipation Pppm | 400W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 20.1A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Designed for transient voltage suppression in electronic circuits.
- Bi-directional configuration for versatile polarity protection.
- Minimum breakdown voltage of 13.3 V and maximum reverse stand-off voltage of 12 V.
- Clamping voltage typically 19.9 V for effective voltage spike clamping.
- Wide operating temperature range from -55°C to 150°C ensures reliable performance.
- Compliant with AEC-Q101 automotive standard for high reliability.
- Low maximum reverse leakage current of 1μA minimizes power loss.
- Supports a maximum peak pulse current of 20.1 A for robust protection.
Product Description
Vishay SMAJ12CA-E3/61 is a 1-element bi-directional Transient Voltage Suppressor (TVS) diode designed for reliable surge protection in electronic circuits. It dissipates peak pulse power of 400 Watts with a compact 2-pin DO-214 surface mount package which is well-suited for automated assembly processes. This diode offers bi-directional operation, providing symmetrical protection against positive and negative voltage transients.
The device features a minimum breakdown voltage (Vbr) of 13.3 V and a maximum reverse stand-off voltage (Vwm) of 12 V, ensuring effective suppression of voltage spikes. Its clamping voltage of 19.9 V limits transient voltages to safe levels during surge events. It is capable of handling a maximum peak pulse current (Ippm) of 20.1 A, providing robust protection for sensitive electronics.
Engineered for wide temperature operation from -55°C to +150°C, this TVS diode maintains consistent performance in harsh industrial, automotive, and commercial environments. The product complies with AEC-Q101 automotive standards assuring high reliability for vehicle electronics applications.
With precise dimensions of length 4.5 mm, width 2.79 mm, and height 2.09 mm, this surface-mount package fits compact PCBs. It exhibits a very low maximum reverse leakage current of 1 μA, minimizing power wastage and improving efficiency.
Typical use cases include protective circuits in industrial control systems, automotive electronics, communication equipment, consumer devices, and power supply lines. This component helps mitigate damage caused by electrostatic discharge (ESD) and voltage transients which can compromise device operation.
Designed for transient voltage suppression in electronic circuits. Bi-directional configuration for symmetrical protection against voltage spikes. Compact surface-mount DO-214 package ideal for automated PCB assembly. Wide operating temperature range from -55°C to 150°C for industrial and automotive applications.
Compliant with automotive industry AEC-Q101 standard ensuring high reliability. High peak pulse power dissipation of 400 Watts supports robust surge handling. Low reverse leakage current of 1μA minimizes energy loss. Suitable for diverse industrial, automotive, and commercial circuit protection.
Compact dimensions suitable for space-constrained PCB layouts. Explore more Vishay semiconductor components and TVS Diode options on EnvMart for your electronic protection needs.
