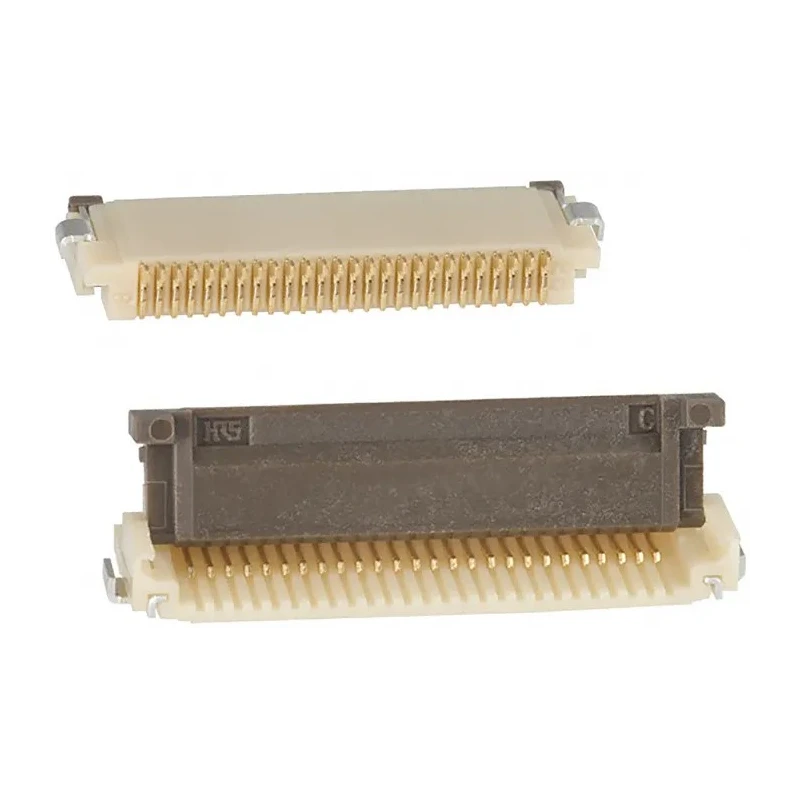

Hirose FH12 0.5 mm Pitch 26 Way Right Angle Female FPC Connector, Solder

Hirose FH12A-26S-0.5SH(55) is a high-quality 26 way right angle female FPC connector with a fine 0.5 mm pitch designed specifically for solder termination applications. It belongs to the FH12 series known for their zero insertion force (ZIF) design using a one-touch rotating actuator mechanism. This actuator not only simplifies assembly by reducing mechanical stress but also provides a tactile click confirming secure mating of the cable and connector.

The connector features phosphor bronze contacts plated with gold to ensure low contact resistance and excellent corrosion resistance. The contact position is on the top side, and it has a right-angle orientation facilitating flexible PCB layout and space-saving installation on printed circuit boards. The connector housing is made of polyamide material, providing excellent insulation and thermal stability capable of withstanding operating temperatures ranging from -40°C up to 70°C.

The FH12 series connectors occupy less PCB space compared to slide-lock versions while delivering a reliable locking mechanism to prevent accidental disconnects. Rated at 50V AC voltage and 500mA current, this connector is suitable for a broad array of industrial and consumer electronic applications, including mobile phones, GPS units, notebook computers, data terminals, LCD televisions, digital and video cameras, and other small handheld devices requiring reliable flexible printed circuit connections.

Manufactured in Japan, the product complies with RoHS regulations which assures restriction of hazardous substances. Its design leads to reduced assembly time and improved durability in high-density electronic assemblies.

Features a one-touch rotating ZIF actuator enabling easy and secure connection. Gold-plated phosphor bronze contacts ensure excellent conductivity and corrosion resistance. Polyamide housing material provides durable insulation and temperature resistance.

Right-angle orientation with top contact position optimizes PCB space usage. Supports operating temperatures from -40°C to 70°C for reliable performance in diverse environments. Locking mechanism prevents disconnections in dynamic or vibration-prone applications.

Compatible with a wide range of electronic devices including mobile and handheld units. Complies with RoHS standards ensuring environmental safety. Manufactured in Japan guaranteeing quality and precision engineering. Explore more FPC Connector solutions and components at EnvMart for enhanced connectivity in your electronic assembly needs.
