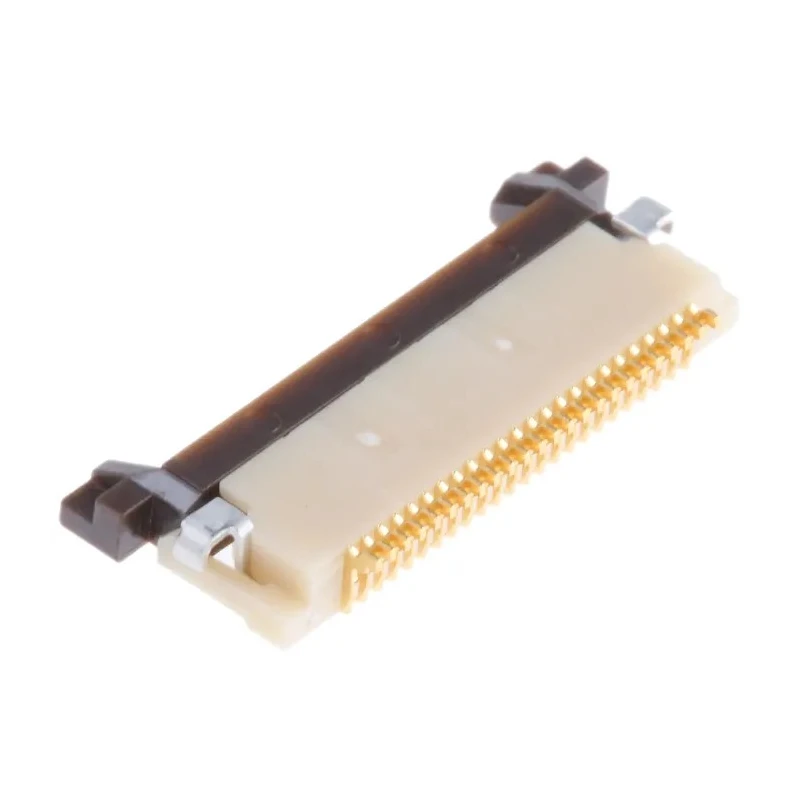

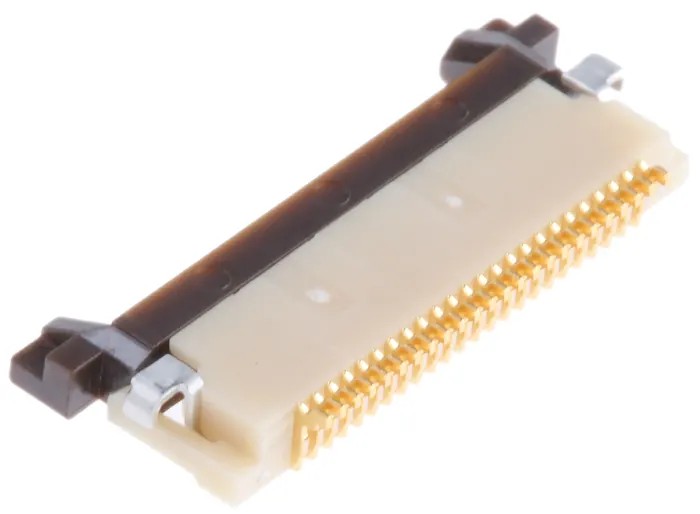

Hirose FH12 0.5 mm Pitch 24 Way Right Angle Female FPC Connector, Solder
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50V ac |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 500mA |
| Model | FH12 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | FH12 |
| Termination Type | Solder |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Top |
Key Features
- Features a 0.5 mm pitch and 24 contacts for high-density connections.
- Utilizes phosphor bronze contacts plated with gold for optimal conductivity and corrosion resistance.
- Right angle orientation with top contact position for efficient PCB space usage.
- Equipped with a one-touch rotating zero insertion force (ZIF) actuator for easy mating and secure locking.
- Supports up to 500mA current and 50V AC voltage, suitable for low power applications.
- Termination type is solder, ensuring a reliable and durable connection.
- Compatible with various small electronic devices like mobile phones, GPS, notebook PCs, and cameras.
- Constructed with polyamide housing material, rated for operating temperatures from -40°C to 70°C.
Product Description
Hirose FH12A-24S-0.5SH(55) is a 0.5 mm pitch FPC Connector featuring 24 contacts arranged in a single row. This right angle female connector is designed for surface mount soldering applications, delivering reliable performance in compact electronic assemblies.
The connector incorporates phosphor bronze contacts plated with gold, providing excellent electrical conductivity and resistance to corrosion. Its one-touch rotating zero insertion force (ZIF) actuator mechanism allows effortless mating with a tactile click feedback confirming secure connection, minimizing risk of damage to flexible printed circuits.
Its space-saving right angle orientation with top contact positioning supports high-density mounting on printed circuit boards (PCB). Rated for 500mA current and 50V AC voltage, this connector is suitable for low power electronic equipment including mobile phones, GPS devices, notebook computers, data terminals, LCD TVs, and digital cameras.
Constructed from durable polyamide housing, this connector operates reliably within a temperature range from -40°C to 70°C. The product is manufactured in Japan, guaranteeing high quality and precision engineering required for sensitive electronic applications.
Features a 0.5 mm pitch and 24 contacts for high-density connections. Gold-plated phosphor bronze contacts ensure excellent conductivity. Right angle female orientation with top contact position for efficient PCB layout.
Zero insertion force (ZIF) rotating actuator for easy and secure mating. Supports up to 500mA current and 50V AC voltage. Solder termination for solid and durable connections. Polyamide housing material provides mechanical reliability and thermal stability.
Operating temperature range from -40°C to 70°C suits diverse environments. Manufactured in Japan with rigorous quality standards.
This Hirose FH12 series connector is widely used in industrial, consumer electronics, and communications sectors for flexible printed circuit connections requiring reliable performance and compact design. Browse more electronic component solutions at EnvMart for your professional instrumentation and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector features a 0.5 mm pitch and has 24 contacts arranged in a single row.
It supports a maximum current of 500mA and a voltage rating of 50V AC, making it suitable for low power applications.
The termination type is solder, ensuring a solid and durable connection.
The contacts are made of phosphor bronze and are plated with gold for optimal conductivity and corrosion resistance.
It operates reliably within a temperature range from -40°C to 70°C.
This model has a right angle orientation with the top contact position, allowing for efficient PCB space usage.
It features a one-touch rotating ZIF actuator that allows for easy mating and provides tactile feedback to confirm a secure connection.
The housing is constructed from polyamide, which provides mechanical reliability and thermal stability.
It is compatible with various small electronic devices such as mobile phones, GPS devices, notebook PCs, and cameras.
This connector is designed for surface mount soldering applications.
The connector has female contacts, making it a female connector type.
It is manufactured in Japan, ensuring high quality and precision engineering.
