Vishay 15 V 500 mW Single Zener Diode Through Hole 2-Pin SOD-27 BZX55C15-TAP

Free Delivery in India | Lowest Global Shipping Charges

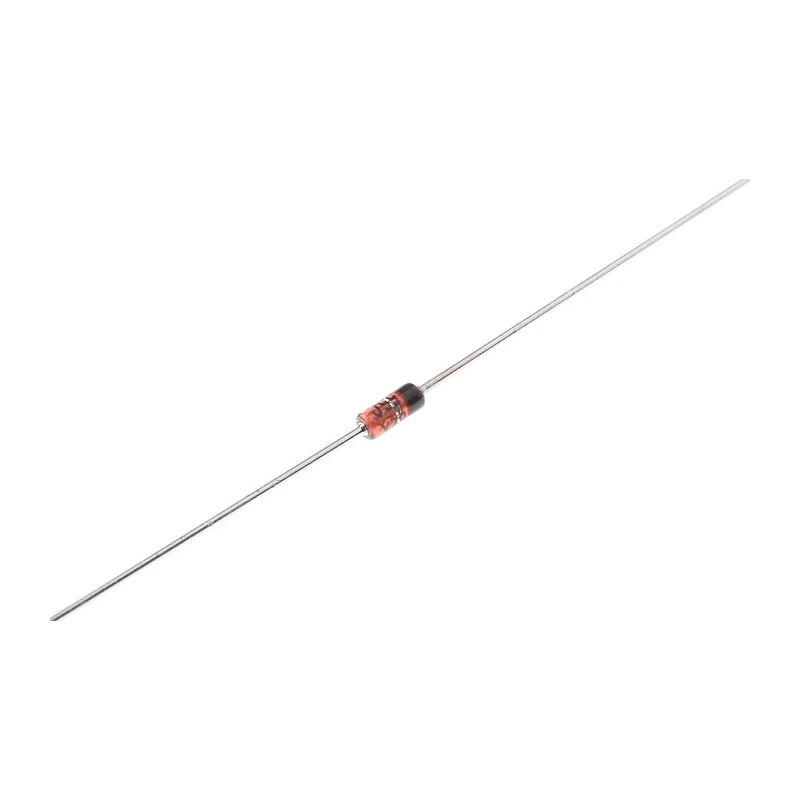

Vishay 15 V 500 mW Single Zener Diode Through Hole 2-Pin SOD-27 BZX55C15-TAP

Name: Vishay 15 V 500 mW Single Zener Diode Through Hole 2-Pin SOD-27 BZX55C15-TAP
Brand: Vishay
SKU: 127053
Price: 0.04 USD
Availability: InStock



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	1.7mm
Length	3.9mm
Model	BZX55C15-TAP
Mount Type	Through Hole
Series	BZX55
Maximum Operating Temperature	175°C
Package Type	SOD-27
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	2μA
Nominal Zener Voltage Vz	15V
Zener Type	Voltage Regulator
Maximum Zener Impedance	110Ω

Key Features

This diode configuration is single element per chip for precise voltage regulation.
It supports a mounting type of through hole suitable for robust circuit integration.
The device features a maximum power dissipation of 500 mW and maximum zener impedance of 110 ohms, ensuring stable voltage regulation.
Operating temperature ranges from -65°C to 175°C, supporting a wide range of industrial applications.
The diode is RoHS compliant and also meets AEC-Q101 automotive standards for reliability.
It features a tight zener voltage tolerance of ±6% at a test current of 5 mA for accurate performance.
The package SOD-27 is compact with dimension length 3.9 mm and height 1.7 mm for space-efficient design.
The diode exhibits low reverse leakage current of 2 µA and a typical voltage temperature coefficient of 0.03%/°C.

Product Description

Vishay BZX55C15-TAP is a high-quality single Zener diode designed for voltage regulation with a nominal zener voltage of 15 V and a maximum power dissipation of 500 mW. Packaged in a 2-pin SOD-27 through hole case, it provides reliable performance for industrial, automotive, and electronic circuit applications.

This diode is configured as a single element per chip, supporting through hole mounting that facilitates durable solder connections and mechanical stability on printed circuit boards. Its robust electrical characteristics include a maximum zener impedance of 110 ohms and tight voltage tolerance of ±6%, ensuring consistent voltage regulation under varied load conditions.

Operating temperature ranges from -65°C to 175°C, allowing use in harsh environments and automotive systems with AEC-Q101 qualification. Low reverse leakage current of 2 µA minimizes power loss and enhances circuit efficiency. The compact dimensions of length 3.9 mm and height 1.7 mm make it an ideal choice for space-constrained designs.

This model offers very sharp reverse characteristic and high stability suitable for precise voltage regulation. The diode exhibits low noise characteristics important for sensitive analog and digital circuits. AEC-Q101 qualification further assures performance and reliability in automotive and industrial use cases.

Standardized 2-pin SOD-27 package supports ease of assembly and replacement in manufacturing processes. Applications include power protection, voltage reference, and voltage clamping in electronic circuits. Discover more Zener Diodes at EnvMart to meet your diverse semiconductor requirements.
