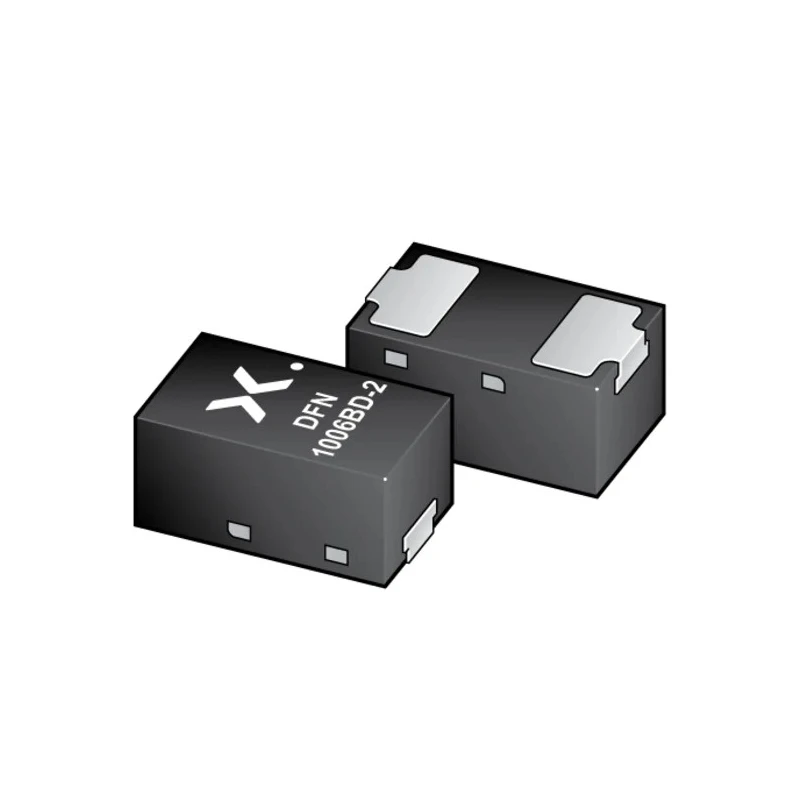

Nexperia General Purpose Surface Mount Zener Diode DFN1006BD-2 30 V 365 mW 2 % Tolerance BZX884S-B30-QYL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-B30-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101, RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 30V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 300Ω |
| Typical Voltage Temperature Coefficient | 24.4mV/K |
Key Features
- Single diode configuration with 2-pin SMD package.
- Nominal Zener voltage of 30 V with ±2% tolerance.
- Maximum power dissipation of 365 mW ensuring reliable operation.
- Suitable for automotive applications meeting AEC-Q101 standard.
- Operating temperature range from -55°C to 150°C for high reliability.
- Package thickness height of 0.47 mm and length of 1 mm for compact PCB footprint.
- Low maximum reverse leakage current of 50 nA enhances efficiency.
- Test current rating of 5 mA with maximum Zener impedance of 300 Ω.
Product Description
Nexperia BZX884S-B30-QYL is a general purpose Zener diode designed for surface mount applications in compact DFN1006BD-2 package. It has a nominal Zener voltage of 30 V and maximum power dissipation of 365 mW, providing regulated voltage and protection in electronic circuits.
This diode features a leadless plastic package with side-wettable flanks to ensure easy soldering and strong mechanical stability on circuit boards. It is qualified according to the AEC-Q101 automotive standard, making it suitable for automotive electronics requiring high reliability.
The device has a voltage tolerance of ±2% and a wide operating temperature range from -55°C to 150°C, which supports robust performance across harsh environments.
Its low leakage current and impedance improve circuit efficiency and stability. The compact size with a height of 0.47 mm and length of 1 mm enables space-saving design in modern electronic assemblies.
Single diode configuration with 2 pins and surface mount package. Nominal Zener voltage 30 V, ±2% tolerance. Maximum power dissipation of 365 mW. Meets AEC-Q101 automotive standards for reliability. Operating temperature range -55°C to 150°C.
Low maximum reverse leakage current of 50 nA. Test current rating at 5 mA and maximum Zener impedance 300 Ω. Compact DFN1006BD-2 package with 0.47 mm height and 1 mm length.
This BZX884S-B30-QYL Zener diode is ideal for industrial, automotive, and consumer electronic circuits requiring voltage regulation, overvoltage protection, and stable operation in compact designs.
Explore more semiconductor components and Zener diode selections to optimize your electronic designs at EnvMart.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this model is 30 V with a tolerance of ±2%.
The maximum power dissipation for this diode is 365 mW, ensuring reliable operation in electronic circuits.
It operates within a temperature range of -55°C to 150°C, making it suitable for various harsh environments.
The maximum reverse leakage current is 50 nA, which enhances circuit efficiency.
This model uses a compact DFN1006BD-2 package, with a height of 0.47 mm and a length of 1 mm.
This diode has a single diode configuration with 2 pins.
It meets the AEC-Q101 automotive standard, ensuring high reliability for automotive applications.
The test current rating for this model is 5 mA.
The maximum Zener impedance is 300 Ω, which contributes to its performance in voltage regulation.
Yes, it is suitable for automotive applications as it complies with AEC-Q101 standards for reliability.
The typical voltage temperature coefficient is 24.4 mV/K, which indicates its performance stability with temperature changes.
The country of origin for this Zener diode is India.
