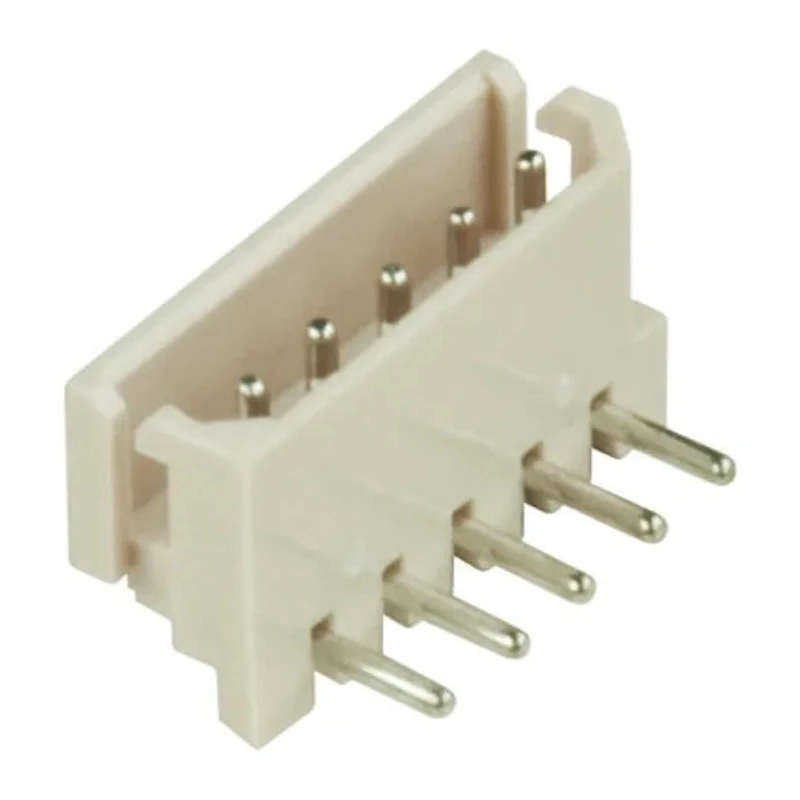

Molex SPOX Series Right Angle Through Hole PCB Header, 6 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 22-05-7065
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | SPOX |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.5mm |
| Mating Pin Length | 2.54mm |
Key Features
- This PCB header features a right angle orientation for compact PCB layouts.
- The connector housing is made of durable nylon for enhanced reliability.
- It uses brass contacts plated with tin to ensure corrosion resistance.
- Supports a current rating of 3A and voltage rating of 250V.
- Includes polarization and friction lock mechanisms to prevent mismating and secure connections.
- Termination is via solder, with a tail pin length of 3.5mm for reliable PCB retention.
- Operates within a temperature range of -40°C to 105°C, suitable for various industrial applications.
- Compatible with Molex SPOX series crimp housings for wire-to-board connectivity.
Product Description
Molex 22-05-7065 SPOX Series Right Angle Through Hole PCB Header features 6 male contacts arranged in a single row with a 2.5 mm pitch, designed to provide reliable wire-to-board interconnections. The shrouded housing ensures protection and alignment, while its right-angle orientation allows for space-efficient PCB design.
This header housing is constructed from nylon, offering robustness and durability in demanding environments. The brass contacts plated with tin provide excellent conductivity and corrosion resistance, supporting current up to 3A and voltage up to 250V.
Engineered for automotive, consumer electronics, data communications, industrial, medical, networking, and telecommunications applications, the connector includes features such as polarization to prevent incorrect mating and a friction lock for secure connections. Its solder termination with a 3.5mm tail pin length guarantees a secure and lasting attachment to the printed circuit board.
The operating temperature range from -40°C to 105°C makes it suitable for diverse working conditions. Designed to mate with Molex SPOX series crimp housings, this PCB header is ideal for high-reliability wire-to-board applications requiring compact and dependable connectors.
This PCB Header features a right angle orientation for compact PCB layouts. The connector housing is made of durable nylon for enhanced reliability. It uses brass contacts plated with tin to ensure corrosion resistance. Supports a current rating of 3A and voltage rating of 250V.
Includes polarization and friction lock mechanisms to prevent mismating and secure connections. Termination is via solder, with a tail pin length of 3.5mm for reliable PCB retention. Operates within a temperature range of -40°C to 105°C, suitable for various industrial applications.
Compatible with Molex SPOX series crimp housings for wire-to-board connectivity.
This product is an excellent choice for industrial, manufacturing, laboratory, data communications, automotive, and commercial electronic applications requiring durable and secure PCB connections. Explore additional Molex connectivity solutions and related products on EnvMart for your electronics design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 3A and a voltage rating of 250V.
It has a pitch of 2.5 mm and features 6 male contacts arranged in a single row.
The housing is made of nylon, and the contacts are constructed from brass with tin plating for corrosion resistance.
This model operates within a temperature range of -40°C to 105°C, making it suitable for various industrial applications.
Termination is done via solder, and it features a tail pin length of 3.5 mm for secure attachment to the printed circuit board.
It supports through hole mounting, allowing for reliable PCB retention.
Yes, it is designed to mate with Molex SPOX series crimp housings for wire-to-board connectivity.
This model includes polarization and a friction lock mechanism to prevent mismating and ensure secure connections.
It features a right angle orientation, which allows for compact PCB layouts.
The contacts are male, designed for reliable connections in wire-to-board applications.
The country of origin for this product is China.
It is suitable for automotive, consumer electronics, data communications, industrial, medical, networking, and telecommunications applications.
