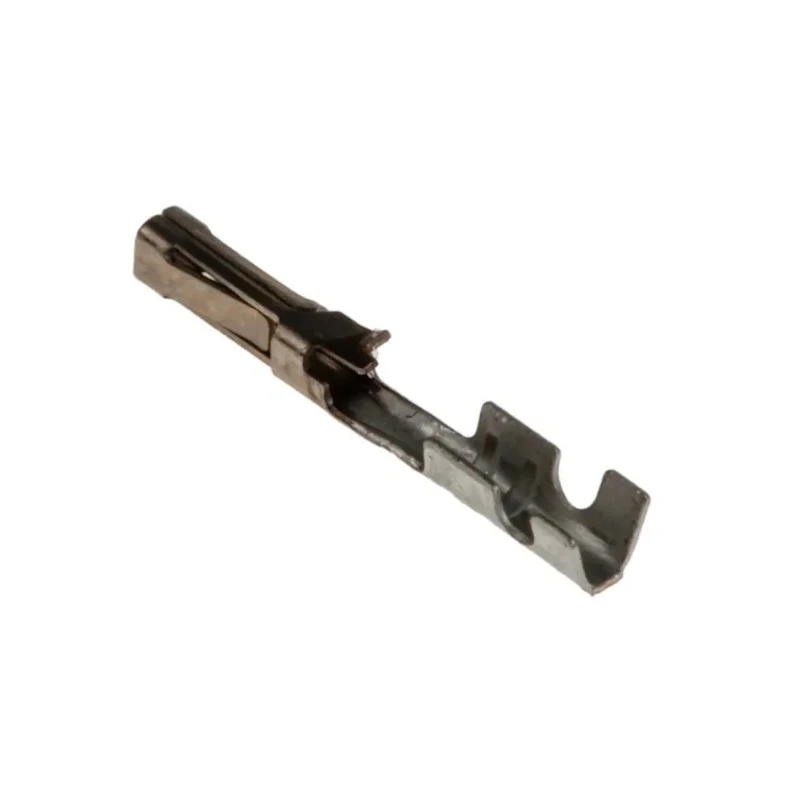

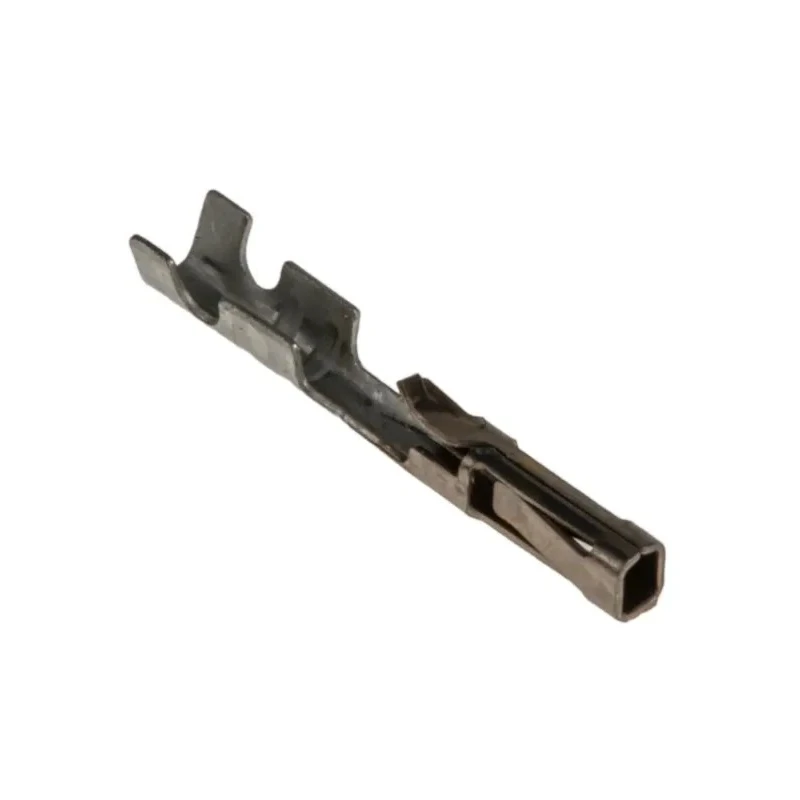

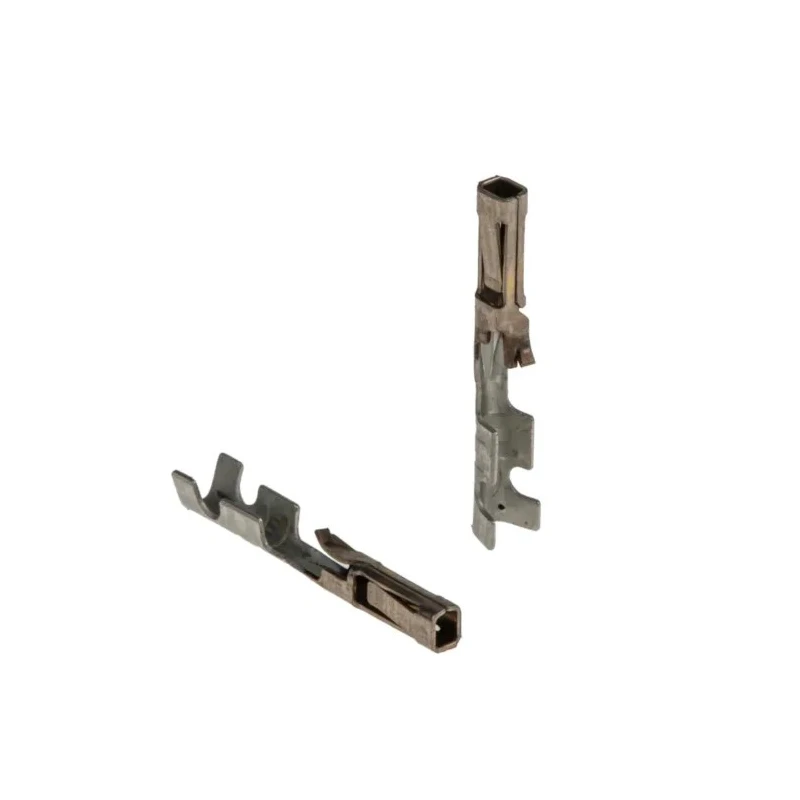

Molex Female Crimp Terminal 3A Current 24 AWG Min, 22 AWG Max Wire Size Gold Plated Contact Phosphor Bronze 16-02-0103
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 70058 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SL Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.3mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 15mΩ |
| For Reference only | 70058 and 71851 Series also used with 70450 Series Housings |
Key Features
- Compatible with SL Connector Housings for secure connections.
- Gold plated contacts provide excellent corrosion resistance.
- Phosphor bronze contact material ensures good conductivity and mechanical strength.
- Rated for continuous current up to 3 amperes.
- Operates within temperature range of -40°C to 120°C for varied environments.
- Low maximum contact resistance of 15 milliohms ensures minimal signal loss.
- Suitable for control systems, automotive electronics, and medical device applications.
- Termination via crimping provides robust mechanical and electrical bonding.
Product Description
Molex 16-02-0103 Female Crimp Terminal is engineered for high-performance and reliability in electrical connections requiring wire sizes from 24 AWG minimum to 22 AWG maximum. It is gold plated to resist corrosion and ensure longevity in demanding applications.
Manufactured from phosphor bronze, this crimp terminal offers excellent electrical conductivity combined with mechanical strength, making it suitable for industrial, automotive, medical, and electronic control systems.
The terminal supports up to 3 amperes of current and operates reliably from -40°C to +120°C, enabling use in harsh temperature environments. Its low contact resistance rating of 15 milliohms ensures efficient electrical performance.
This female crimp terminal fits SL series connector housings and is terminated by crimping, providing a secure and stable mechanical and electrical joint. For optimal crimping, Molex recommends using their hand crimping tool model 809-2394.
Applications include industrial control systems, automotive electronics, medical and pharmaceutical devices, and general electronic equipment where durable and reliable wire termination is necessary.
Compatible with SL Connector Housings for secure connections. Gold plated contacts provide excellent corrosion resistance. Phosphor bronze contact material ensures good conductivity and mechanical strength. Rated for continuous current up to 3 amperes.
Operates within temperature range of -40°C to 120°C for varied environments. Low maximum contact resistance of 15 milliohms ensures minimal signal loss. Suitable for control systems, automotive electronics, and medical device applications.
Termination via crimping provides robust mechanical and electrical bonding.
Enhance project reliability with Molex Crimp Terminals, ideal for a wide range of electronics manufacturing and repair tasks. Explore EnvMart categories to find comprehensive solutions in connectors and electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a continuous current of up to 3 amperes.
It is designed for wire sizes ranging from 24 AWG minimum to 22 AWG maximum.
The contact material of this terminal is phosphor bronze, which ensures good conductivity and mechanical strength.
This model uses crimp termination, providing a secure mechanical and electrical bond.
The maximum operating temperature is 120°C, allowing it to function in various environments.
It operates reliably within a temperature range starting from -40°C.
The maximum contact resistance is rated at 15 milliohms, which helps minimize signal loss.
It is compatible with SL series connector housings for secure connections.
This terminal is suitable for use in control systems, automotive electronics, medical devices, and general electronic equipment.
The contacts are gold plated, providing excellent corrosion resistance.
The country of origin for this crimp terminal is India.
For optimal crimping, it is recommended to use the Molex hand crimping tool model 809-2394.
