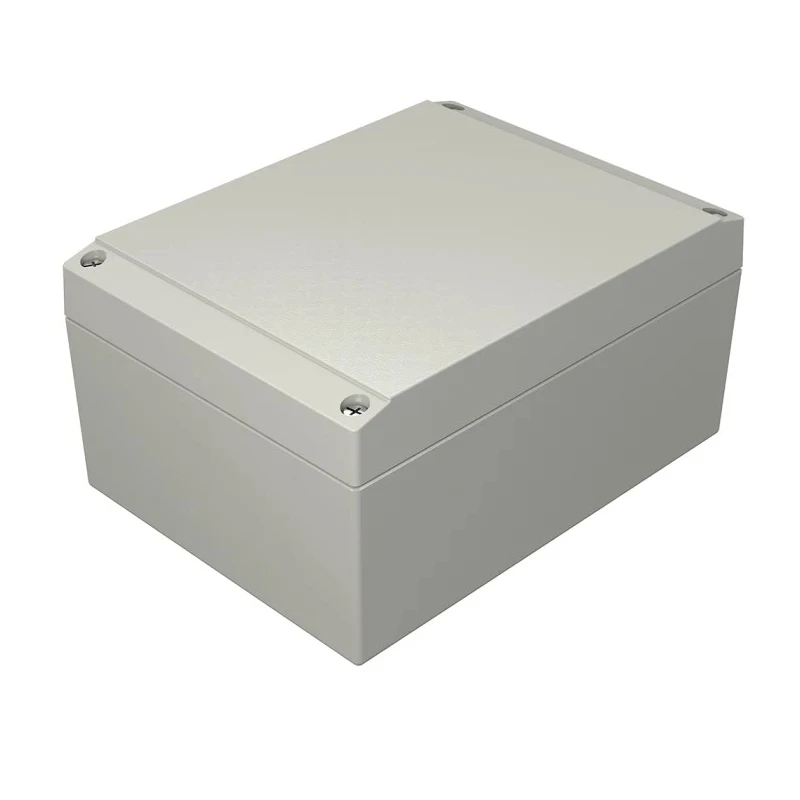

Rose Die Cast Aluminium Enclosure IP66 IK09 Grey Lid 160 mm x 160 mm x 120 mm IP66
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Rose |
| Body Material | Die Cast Aluminium |
| Model | IP66 |
| IP Rating | IP66 |
| Gross Weight | 830g |
| Series | Aluform |
| External Width | 120mm |
| External Height | 160mm |
| Shielding | Unshielded |
| Hazardous Area Certification | Maritime, UL |
| Standards/Approvals | RoHS Compliant |
| External Length | 160mm |
| Lid Colour | Grey |
| IK Rating | IK09 |
| Gasket Material | Polyurethane |
| Number of Knockouts | 0 |
Key Features
- Die cast aluminium body provides excellent conductivity and corrosion resistance.
- IP66 rated for complete protection against dust and high-pressure water jets.
- IK09 impact rating ensures strong mechanical protection against impacts.
- Compact dimensions of 160 x 160 x 120 mm for versatile installation in limited spaces.
- Grey lid with polyurethane gasket for effective sealing and protection.
- Lightweight at 830 grams to reduce strain on mounting surfaces.
- Suitable for mechanical engineering, telecommunications, solar power batteries, and cable management.

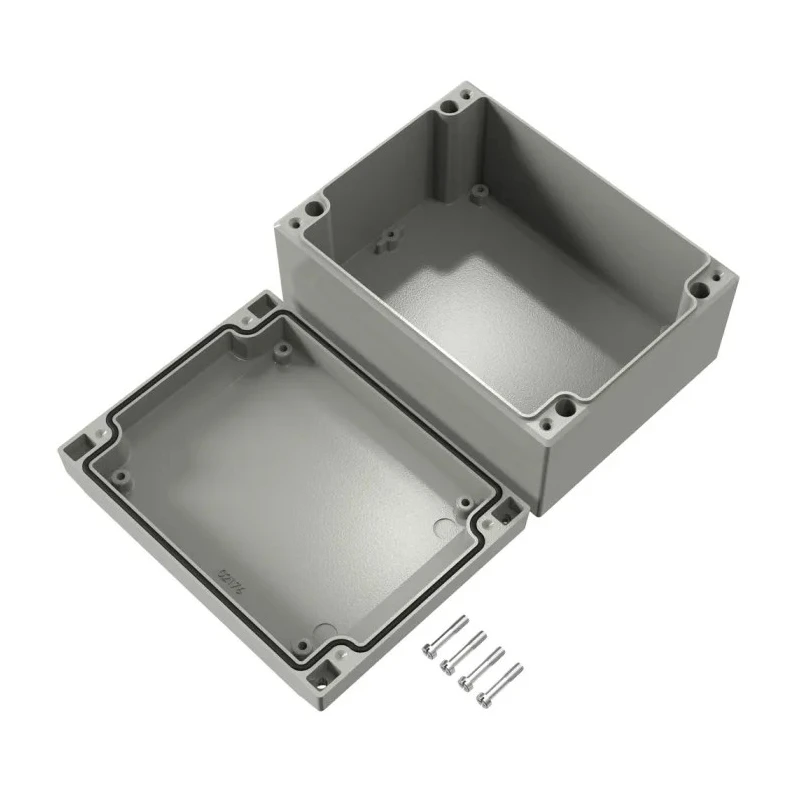

- Includes earthing screws and stainless steel captive screws to secure lid against tampering.
Product Description
Rose IP66 Die Cast Aluminium Enclosure, model IP66, measuring 160 mm x 160 mm x 120 mm, is designed for robust protection of small electrical and electronic components in industrial settings. Its die-cast aluminium construction provides excellent corrosion resistance and conductivity, making it suitable for harsh indoor and outdoor environments.
This enclosure complies with IP66 ingress protection, safeguarding against dust ingress and powerful water jets. The IK09 impact rating ensures resistance to mechanical impacts, enhancing durability. The grey lid features a polyurethane gasket for reliable sealing, preventing dust and moisture penetration.
With its compact size and lightweight design (830 g), it is ideal for installations in space-constrained locations while minimizing mounting strain. It can be mounted on DIN rails or fixing plates, providing flexible installation options.
Applications include mechanical engineering, telecommunications, solar energy storage systems, and cable and wire management. The enclosure comes equipped with earthing screws and stainless steel captive screws that secure the lid, providing tamper resistance and enhanced safety.
Operating temperature ranges from -40°C to +90°C, allowing reliable performance across wide environmental conditions. This enclosure meets RoHS compliance and multiple standards including DIN1725, DIN 40050, and DIN 50014, ensuring quality and safety in industrial and commercial uses.
Die cast aluminium body for durability and conductivity. IP66 and IK09 ratings for environmental and mechanical protection. Compact dimensions for versatile installation. Polyurethane gasket for effective sealing. Lightweight design reduces mounting strain.
Includes earthing and stainless steel captive screws. Suitable for telecommunications and solar power battery enclosures. Wide operating temperature range of -40°C to +90°C. RoHS compliant and meets multiple DIN standards.
Explore Rose brand Electrical Enclosures and other industrial equipment for your applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The enclosure measures 160 mm in height, 160 mm in width, and 120 mm in depth.
This model weighs 830 grams, making it lightweight for easy installation.
It is constructed from die cast aluminium, which provides excellent conductivity and corrosion resistance.
The enclosure has an IP66 rating, offering complete protection against dust and powerful water jets.
This unit has an IK09 impact rating, ensuring strong mechanical protection against impacts.
The operating temperature range is from -40°C to +90°C, allowing reliable performance in various environmental conditions.
Yes, it includes earthing screws and stainless steel captive screws to secure the lid against tampering.
It is suitable for mechanical engineering, telecommunications, solar energy storage systems, and cable management.
The lid features a polyurethane gasket for effective sealing and protection against dust and moisture.
Yes, it is RoHS compliant and meets multiple standards including DIN1725, DIN 40050, and DIN 50014.
The enclosure is unshielded, providing straightforward installation without additional shielding requirements.
The country of origin for this enclosure is Germany.
