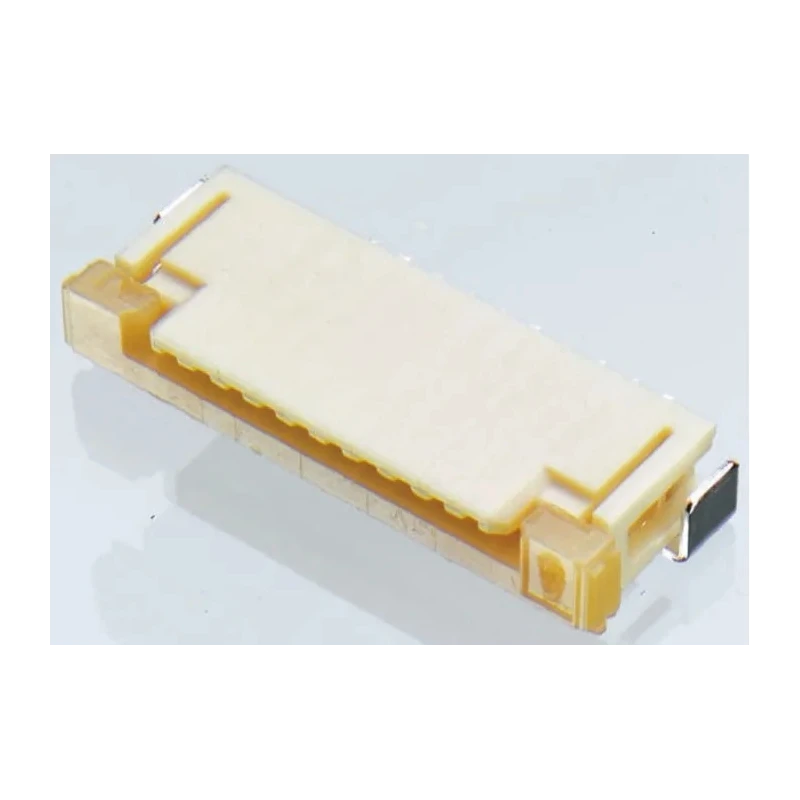

Molex 1 mm Pitch 8 Way Right Angle Female FPC Connector, Solder 52207-0860
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | 52207 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Position | Top |
Key Features
- Features 8 contacts with phosphor bronze material ensuring reliable conductivity.
- Connector operates at a current rating of 1 Amp and voltage up to 125V.
- Solder termination type with right angle orientation for PCB surface mounting.
- Includes a locking mechanism and gold over nickel contact plating for durability and corrosion resistance.
- Made with nylon housing material providing mechanical strength and chemical resistance.
- Easy-On FFC/FPC connector subtype with slide type actuator for secure FPC insertion.
- Temperature range from -20°C minimum to 85°C maximum operating temperature.
- Designed for a single row of contacts positioned at the top.
Product Description
Molex 52207-0860 is a high-quality 1 mm pitch 8 way right angle female FPC connector with solder termination intended for use in compact electronic assemblies. The surface mount connector features 8 phosphor bronze contacts plated with gold over nickel, providing excellent electrical performance and corrosion resistance. Its locking mechanism and slide type actuator ensure secure and reliable connection with flexible printed circuits (FPC) or flexible flat cables (FFC).
Constructed with a robust nylon housing, this connector offers durability in demanding environments. Its right angle orientation supports board space saving designs and allows easy integration into PCB layouts. The connector supports 1 Amp current and withstands voltages up to 125V, with a temperature operating range from -20°C to 85°C, making it suitable for diverse industrial and commercial applications.
This 52207 series Easy-On ZIF (Zero Insertion Force) FPC Connector is ideal for automotive, consumer electronics, datacommunications, medical devices, mobile phones, digital cameras, and tablet PCs. It facilitates repeat cycling with minimal wear, ensuring long-term reliability in sensitive electronic circuits. The solder tabs at the base provide strong PCB retention and strain relief of solder tail joints.
Features 8 contacts made of phosphor bronze with gold over nickel plating. Operates at 1 Amp current, 125V voltage, and with a locking mechanism for secure mating. Housing made of durable nylon material with top contact position.
Solder termination type suitable for surface mount PCB assembly. Right angle connector orientation saves space and supports tight packaging. Suitable for industrial, automotive, medical, and consumer electronics applications.
Operating temperature ranges from -20°C to 85°C to meet various environmental requirements. Includes slide type actuator for easy and secure cable insertion. Explore more connector solutions from Molex and other leading brands on EnvMart to meet your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a current rating of 1 Amp and can withstand voltages up to 125V.
The connector features phosphor bronze contacts with gold over nickel plating, and its housing is made of nylon, providing mechanical strength and chemical resistance.
It has a pitch of 1 mm and includes 8 contacts positioned in a single row at the top.
The operating temperature range for this connector is from -20°C to 85°C.
This connector features a solder termination type, suitable for surface mount PCB assembly.
It has a right angle orientation, which helps in saving board space in compact electronic assemblies.
Yes, it includes a locking mechanism and a slide type actuator for secure and reliable connection with flexible printed circuits (FPC) or flexible flat cables (FFC).
This model is suitable for applications in automotive, consumer electronics, datacommunications, medical devices, mobile phones, digital cameras, and tablet PCs.
The connector is female, designed for use with female contacts.
The gold over nickel contact plating provides excellent electrical performance and corrosion resistance, enhancing the connector's reliability.
The country of origin for this connector is India.
This model supports surface mounting, making it suitable for integration into PCB layouts.
