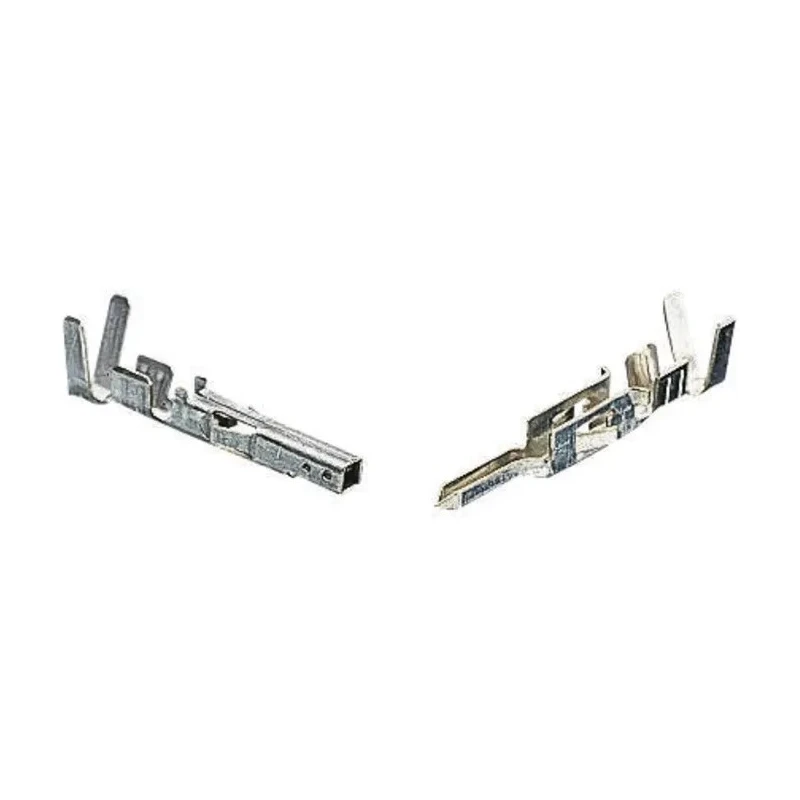

Molex 5556 Series Female Crimp Terminal 16 AWG Min Crimp 16 AWG Max Tin Plating Phosphor Bronze Contact Material 39-00-0218

Molex 39-00-0218 is a female crimp terminal from the 5556 Series, engineered to accommodate 16 AWG minimum and maximum wire sizes with precision tin plating and phosphor bronze contact material. This connector terminal is rated for 9 amperes of current and designed specifically for Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings, facilitating secure and effective PCB wiring connection.

Its crimp termination type allows for a fast and reliable assembly using a standard crimping tool. The terminal features multiple contact points that ensure stable and efficient signal transmission, reducing potential exposure to live parts. Locking tangs enhance the connection integrity by firmly securing the contacts within the housing, making it highly reliable in environments subjected to vibrations.

Operating temperature ranges from -40°C to 105°C, making this terminal suitable for a variety of industrial applications including medical equipment, industrial automation, communication facilities, and consumer electronics where robust and safe electrical contacts are essential.

The maximum contact resistance is limited to 10 milliohms, enhancing conductivity performance. Manufactured in the United States, this component meets typical industry standards though it does not carry additional approval marks. The unit’s lightweight construction at approximately 0.13 grams makes it ideal for compact electronic systems grounding and signal interfacing needs.

This terminal supports up to 30 mating cycles, enabling effective reusability in systems requiring maintenance and adjustments. Its design and materials ensure compliance with RoHS environmental standards. The Molex 39-00-0218 female Crimp Terminal is a dependable choice for assembly in automotive, industrial automation, networking, medical, and communication equipment manufacturing.

Supports a maximum current of 9 amperes ensuring suitability for medium duty applications. Designed for use with Mini-Fit TPA and Mini-Fit BMI connector housings including Mini-Fit Jr. Termination by crimping ensures a secure and efficient installation.

Operates effectively within temperature range of -40°C to 105°C for demanding environments. Multiple contact points provide reliable signal transmission and reduce risk of connection failure. Locking tangs firmly hold contacts in place, ideal for systems with vibration or movement.

Contact resistance is kept low at a maximum of 10 milliohms to ensure good conductivity. RoHS compliant material suitable for industrial, medical, and communication equipment. Durable metallic construction with a weight of approximately 0.13 grams per piece.
