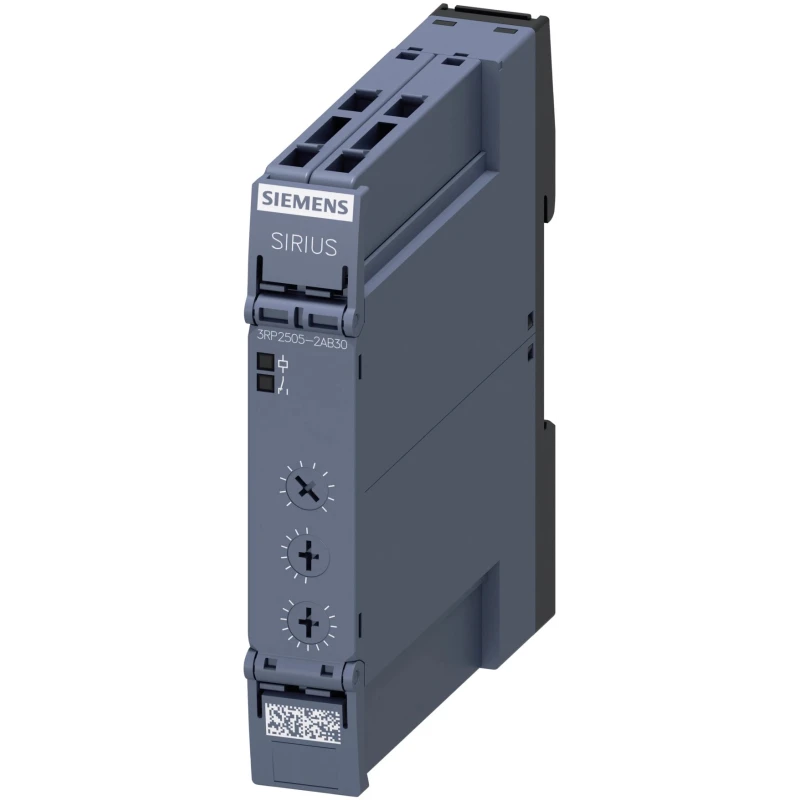

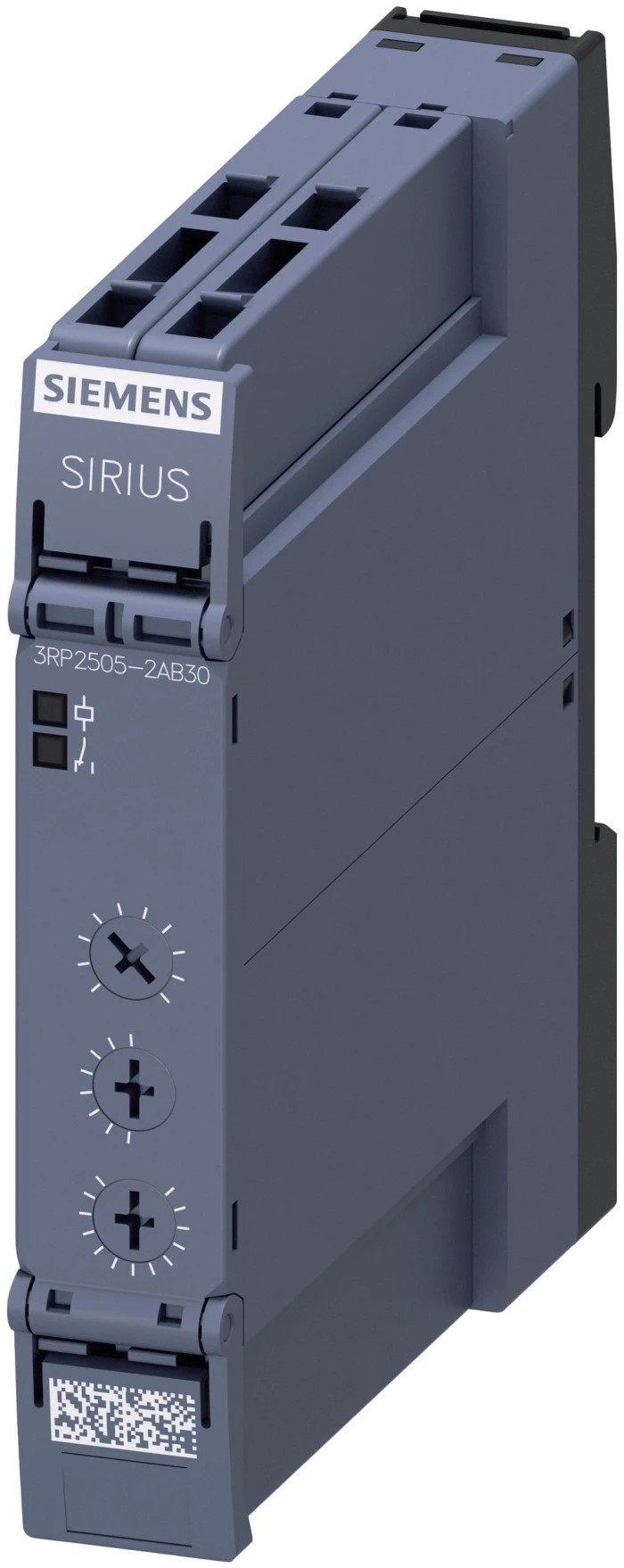

Siemens 3RP25 Series Multifunction DIN Rail Timer Relay, 1-Contact, SPDT, 24 V dc/ac, 0.05 s to 100 h 3RP2505-2AB30

Free Delivery in India | Lowest Global Shipping Charges

Siemens 3RP25 Series Multifunction DIN Rail Timer Relay, 1-Contact, SPDT, 24 V dc/ac, 0.05 s to 100 h 3RP2505-2AB30

Name: Siemens 3RP25 Series Multifunction DIN Rail Timer Relay, 1-Contact, SPDT, 24 V dc/ac, 0.05 s to 100 h 3RP2505-2AB30
Brand: Siemens
SKU: 196898
Price: 168.48 USD
Availability: InStock



Category Timer Relays Brand Siemens Condition New

Specifications

Country of Origin	Germany
Brand	Siemens
Height	100mm
Function	Multifunction
Length	17.5mm
Model	3RP2505-2AB30
IP Rating	IP20
Mode	Multifunction
Width	91.6mm
Mount Type	DIN Rail
Series	3RP25
Maximum Operating Temperature	60°C
Contact Configuration	SPDT
Minimum Operating Temperature	-25°C
Time Range	0.05 s to 100 h
Terminal type	Push-in
Number of Contacts	1
Number of Timer Functions	Multifunction
Switching Voltage	300V
Contact Current	5A
Supply DC Voltage	24 V dc
Supply AC Voltage	24V ac

Key Features

Designed for precise timing functions in control and automation circuits.
Compact DIN rail mounting ensures easy integration into electrical panels.
Wide operating temperature range from -25°C to 60°C for versatile use.
Rated for switching voltage up to 300V and contact current of 5A.
IP20 rated enclosure provides good protection against solid objects.
Push-in terminals enable quick and secure wiring.
Complies with multiple international standards including IEC and UL approvals.
Multifunctional timer supports various timing modes and functions.

Product Description

Siemens 3RP2505-2AB30 is a multifunction timer relay designed for DIN rail mounting. It features one SPDT contact capable of switching up to 300 volts and handling a contact current of 5 amperes. Operating on both 24 V dc and 24 V ac supply voltages, this timer relay offers a broad timing range from 0.05 seconds up to 100 hours, making it highly versatile for diverse industrial timing needs.

The relay is built to operate reliably within a temperature range of -25°C to 60°C and is housed in an IP20 rated enclosure, protecting it against solid ingress. It uses push-in terminal technology for fast and efficient installation in electrical control panels.

Engineered by Siemens, the 3RP25 series timer relays incorporate multifunctional capabilities, enabling multiple timing modes crucial for control, starting, protection, and regulation circuits in automation and electrical applications. It meets rigorous standards such as IEC 61812-1, IEC 60068-2-27, UL R300/B300, and others, ensuring safety and performance compliance worldwide.

Typical applications include industrial automation, manufacturing process controls, HVAC systems, and various electrical timing operations requiring reliable time delay functionality in a compact form factor. The compact size (width 91.6mm, height 100mm, length 17.5mm) allows space-saving panel integration.

Designed for precise timing functions in control and automation circuits. Compact DIN rail mounting ensures easy integration into electrical panels. Wide operating temperature range from -25°C to 60°C for versatile use. Rated for switching voltage up to 300V and contact current of 5A.

IP20 rated enclosure provides good protection against solid objects. Push-in terminals enable quick and secure wiring. Complies with multiple international standards including IEC and UL approvals. Multifunctional timer supports various timing modes and functions.

Durable construction suitable for industrial and automation applications. Explore the wide range of Siemens Timer Relays within the EnvMart catalog to find suitable solutions for your industrial and automation projects.
