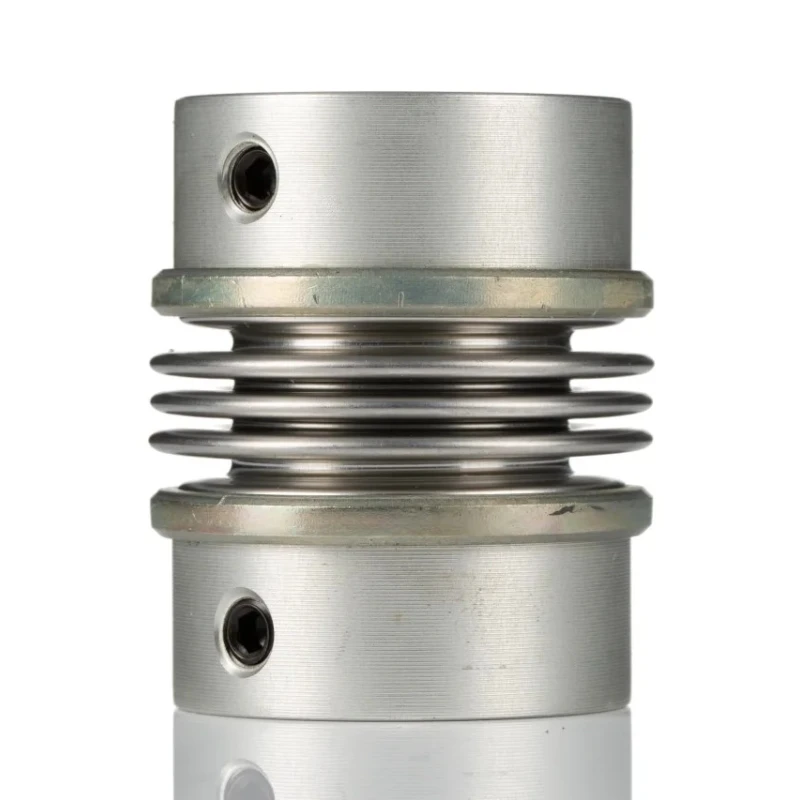

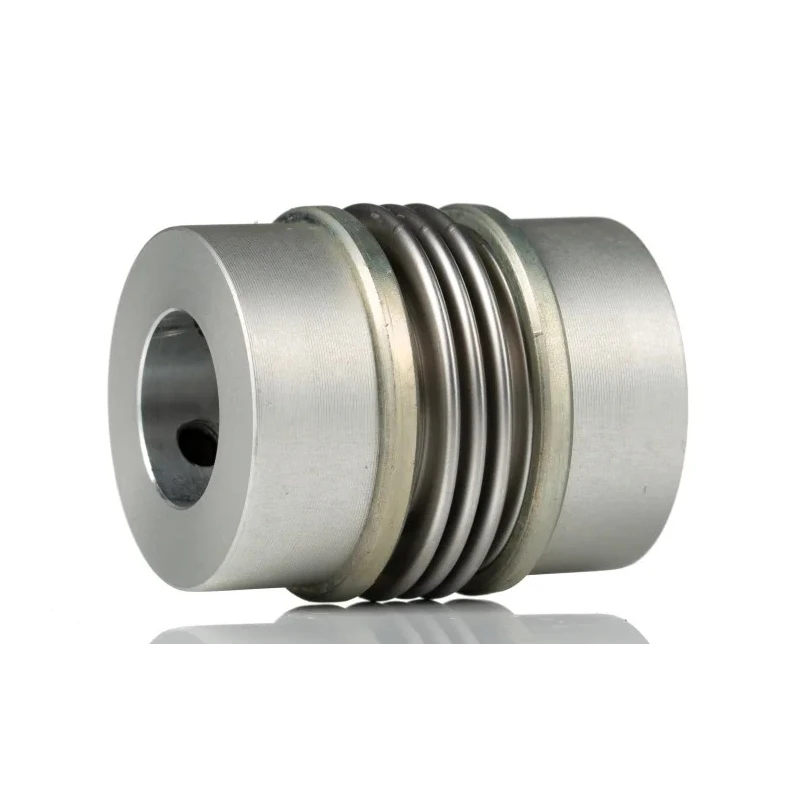

Huco Stainless Steel Bellows Flexible Coupler Aluminium Hub 49.7 mm Length 41 mm OD 48 mm Bore 530.41.4848
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Screw Size | M6 |
| Brand | Huco |
| Length | 49.7mm |
| Maximum Speed | 5000rpm |
| Series | Flex B |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -40°C |
| Torque Rating | 7.61Nm |
| Hub Material | Aluminium |
| Moment of Inertia | 2490 x 10-8 kg/m² |
| Misalignment - Angular | 2.5° |
| Misalignment - Parallel | 0.15mm |
| Misalignment - Axial | 0.8mm |
| Bellows Material | Stainless Steel |
| Bore Size B | 48mm |
| Ruland, 41.3mm Outside Diameter, 20mm Bore, 50.8mm Length Bellows CouplingBrand | Ruland |
Key Features
- Features high torsional stiffness for positional accuracy.
- Constructed with aluminium hub and stainless steel bellows.
- Supports a maximum speed of 5000 rpm for dynamic control.
- Torque rating of 7.61 Nm suitable for servo drives.
- Operates reliably between -40°C and 120°C.
- Set screw style coupling with M6 screw size.
- Precision low inertia design ideal for servo applications.
- Manufactured in the United Kingdom ensuring quality standards.
Product Description
Huco 530.41.4848 is a stainless steel bellows flexible coupler designed for mechanical power transmission with high precision and low inertia suitable for servo drives and dynamic position control applications. The aluminium hub combined with stainless steel bellows provides torsional stiffness required for accurate angular positioning.

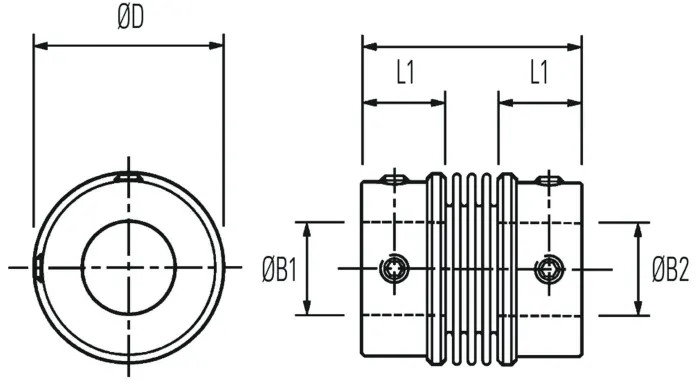

This coupler features a length of 49.7 mm and an outer diameter of 41 mm with matching 48 mm bore sizes on both ends, ensuring compatibility with shafts and systems demanding tight tolerances.
The maximum speed capability of 5000 rpm and torque rating of 7.61 Nm make it ideal for industrial, laboratory, automation, and HVAC servo drive applications where precise motion control is critical.
The coupler accommodates slight misalignments including 2.5° angular, 0.15 mm parallel, and 0.8 mm axial, thus protecting connected components from excessive stress while maintaining performance.
Its operating temperature range from -40°C to 120°C ensures reliability across varying environments in manufacturing and industrial setups. The screw style fixation using M6 screws guarantees secure mechanical connection.
Made in the United Kingdom, this product meets high manufacturing standards without specific certifications but offers dependable mechanical performance for power transmission coupling needs.
Features high torsional stiffness for positional accuracy. Constructed with aluminium hub and stainless steel bellows. Supports a maximum speed of 5000 rpm for dynamic control. Torque rating of 7.61 Nm suitable for servo drives.
Allows misalignment: Angular 2.5°, Parallel 0.15 mm, Axial 0.8 mm. Operates reliably between -40°C and 120°C. Set screw style coupling with M6 screw size. Precision low inertia design ideal for servo applications. Manufactured in the United Kingdom ensuring quality standards.
This coupling is well-suited for industrial power transmission, servo drive systems, laboratory automation, HVAC control mechanisms, and manufacturing processes requiring precise torque transfer with minimal backlash.
Explore more power transmission components and flexible couplings on EnvMart for optimized mechanical assemblies and maintenance solutions.
Explore more products in our Mechanical Power Transmission Couplings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum speed of 5000 rpm, making it suitable for dynamic control applications.
The torque rating is 7.61 Nm, which is suitable for servo drives and other precision applications.
It features an aluminium hub and stainless steel bellows, providing the required torsional stiffness for accurate positioning.
The coupler has a length of 49.7 mm, an outer diameter of 41 mm, and a bore size of 48 mm on both ends.
It operates reliably between -40°C and 120°C, making it suitable for various industrial environments.
It can accommodate angular misalignment of 2.5°, parallel misalignment of 0.15 mm, and axial misalignment of 0.8 mm.
The coupler uses M6 screws for secure mechanical connection.
It is well-suited for industrial power transmission, servo drive systems, laboratory automation, and HVAC control mechanisms.
The moment of inertia is 2490 x 10^-8 kg/m², which contributes to its low inertia design.
It is manufactured in the United Kingdom, ensuring adherence to quality standards.
This coupler belongs to the Flex B series, designed for high precision and low inertia applications.
It utilizes a set screw style coupling for secure attachment to shafts and systems.
