Huco 56 mm Diameter Steel Flexible Coupler, 56 mm Length, 16 mm Bore A and B, Set Screw Style, 10 Nm Torque 047.40.4242.RS

Free Delivery in India | Lowest Global Shipping Charges

Huco 56 mm Diameter Steel Flexible Coupler, 56 mm Length, 16 mm Bore A and B, Set Screw Style, 10 Nm Torque 047.40.4242.RS

Name: Huco 56 mm Diameter Steel Flexible Coupler, 56 mm Length, 16 mm Bore A and B, Set Screw Style, 10 Nm Torque 047.40.4242.RS
Brand: Huco
SKU: 374878
Price: 64.08 USD
Availability: InStock



Category Mechanical Power Transmission Couplings Brand Huco Condition New

Specifications

Country of Origin	United Kingdom
Brand	Huco
Material	Steel
Length	56mm
Model	047.40.4242.RS
Maximum Speed	3000rpm
Series	Flex-P
Maximum Operating Temperature	100°C
Minimum Operating Temperature	-40°C
Torque Rating	10Nm
Standards/Approvals	RoHS
Overall Diameter	56mm
Bore Size A	16mm
Misalignment - Angular	15°
Misalignment - Axial	11mm
RS PRO, 16 x 16mm Bore, 54mm Length K CouplingBrand	RS PRO

Key Features

Flexible coupling designed for correction of radial, angular, and axial misalignment.
Constructed from corrosion-resistant steel with a Hytrel polyester elastomer flex element for strength and heat resistance.
Set screw style fitting offers easy installation and secure mounting.
Suitable for rotary speeds up to 3000 rpm with torque rating of 10 Nm.
Operating temperature range from -40°C to 100°C for versatile industrial applications.
Allows angular misalignment up to 15 degrees and axial misalignment up to 11 mm.
Overall diameter of the coupling is 56 mm ensuring compact design.
Manufactured in the United Kingdom maintaining high quality standards.

Product Description

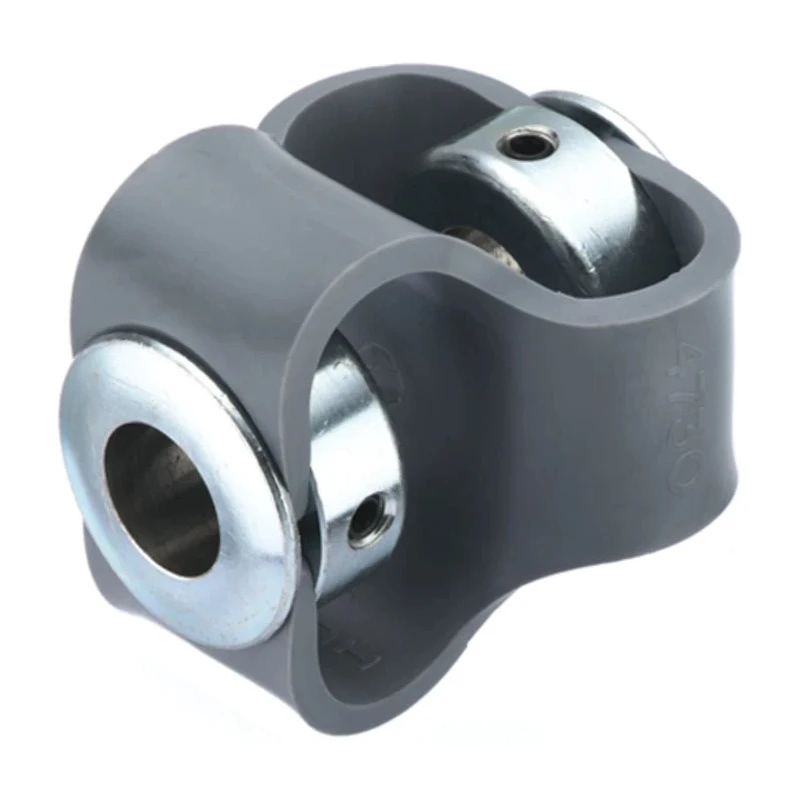

Huco 047.40.4242.RS steel flexible coupler features a nominal diameter of 56 mm, total length of 56 mm, and matching bore sizes of 16 mm on both sides (A and B). This set screw style coupling is designed for mechanical power transmission with a torque rating of 10 Nm and maximum rotational speed of 3000 rpm.

The double loop coupling design enables compensation for radial, angular, and axial misalignment with capabilities of 15 degrees angular and 11 mm axial misalignments, enhancing machine reliability and uptime.

Manufactured from corrosion-resistant steel combined with a Hytrel polyester elastomer flex element, this coupling delivers excellent strength as well as heat and chemical resistance, suitable for demanding industrial environments.

Its operating temperature range from -40°C to 100°C allows use in diverse industrial, manufacturing, and mechanical power transmission applications. The set screw fitting supports easy installation and secure assembly on shafts.

Flexible coupling efficiently corrects multiple shaft misalignments for smooth torque transfer. Steel hubs provide durability and corrosion resistance in harsh environments. The polyester elastomer element offers elasticity and resistance to heat and chemicals.

Set screw style ensures reliable mounting with simple installation procedures. Capable of continuous operation up to 3000 rpm with rated torque capacity of 10 Nm. Typical use cases include industrial machinery, mechanical drives, HVAC systems, and manufacturing equipment.

Produced under RoHS compliance and high manufacturing standards in the United Kingdom.

This coupler is an ideal solution for industrial power transmission systems requiring precise alignment correction and reliable performance. Explore more products in Huco couplings and mechanical power transmission components at EnvMart.
