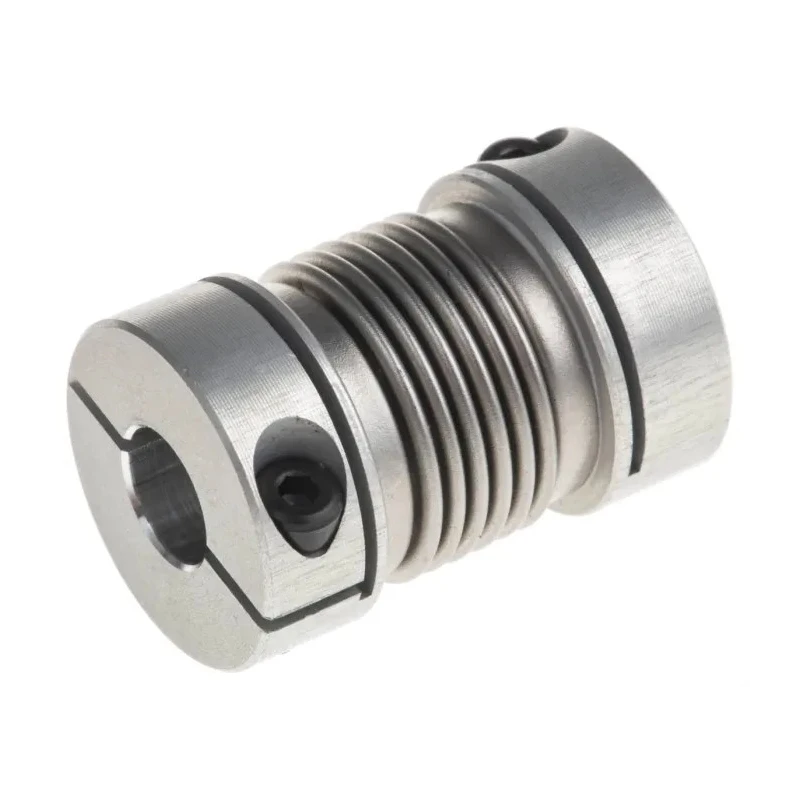

Huco Aluminium Hub Stainless Steel Bellows Clamp Style Flexible Coupler 7 mm Bore 16 mm OD 23 mm Length 554.16.2222

Free Delivery in India | Lowest Global Shipping Charges

Huco Aluminium Hub Stainless Steel Bellows Clamp Style Flexible Coupler 7 mm Bore 16 mm OD 23 mm Length 554.16.2222

Name: Huco Aluminium Hub Stainless Steel Bellows Clamp Style Flexible Coupler 7 mm Bore 16 mm OD 23 mm Length 554.16.2222
Brand: Huco
SKU: 425444
Price: 65.45 USD
Availability: InStock



Category Mechanical Power Transmission Couplings Brand Huco Condition New

Specifications

Country of Origin	Germany
Screw Size	M2
Brand	Huco
Length	23mm
Maximum Speed	15000rpm
Series	Flex K
Maximum Operating Temperature	120°C
Minimum Operating Temperature	-30°C
Torque Rating	0.43Nm
Hub Material	Aluminium
Misalignment - Angular	1°
Misalignment - Parallel	0.1mm
Misalignment - Axial	0.2mm
Bellows Material	Stainless Steel
Bore Size B	7mm
Huco, 12 mm OD, 23 mm Length CouplerBrand	Huco
Ruland, 15mm Outside Diameter, 6mm Bore, 27.2mm Length Bellows CouplingBrand	Ruland

Key Features

Clamp style design ensures easy installation and reliable connection.
Bore sizes of 7 mm at both ends accommodate precise shaft fitting.
Maximum rotational speed rating up to 15000 rpm for dynamic performance.
Rated torque capacity of 0.43 Nm suitable for light mechanical power transmission.
Angular misalignment tolerance of 1 degree and parallel misalignment tolerance of 0.1 mm enable flexibility during operation.
Axial misalignment tolerance up to 0.2 mm preserves system alignment.
Operating temperature range from -30°C to 120°C supports diverse industrial environments.
Constructed with aluminium hubs and stainless steel bellows for durability and corrosion resistance.

Product Description

Huco 554.16.2222 is a flexible coupler designed for mechanical power transmission applications requiring high precision and dynamic response. Featuring an aluminium hub combined with stainless steel bellows and a clamp style design, this coupler provides high torsional stiffness and low inertia, ideal for servo drive systems with exact positional control.

The coupler bore size of 7 mm on both ends fits shafts precisely, limiting vibration and backlash. It can operate at speeds up to 15000 rpm with a torque rating of 0.43 Nm, making it suitable for light mechanical drive assemblies.

Its capability to tolerate angular misalignment up to 1°, parallel misalignment of 0.1 mm, and axial misalignment of 0.2 mm ensures flexible coupling without compromising alignment or performance. Operating temperature ranges from -30°C to 120°C enhance its versatility across industrial, manufacturing, and automation environments.

The clamp style hub provides secure attachment and easy assembly. The materials, aluminium for the hub and stainless steel for the bellows, offer strength and corrosion resistance, delivering durable service life under demanding conditions.

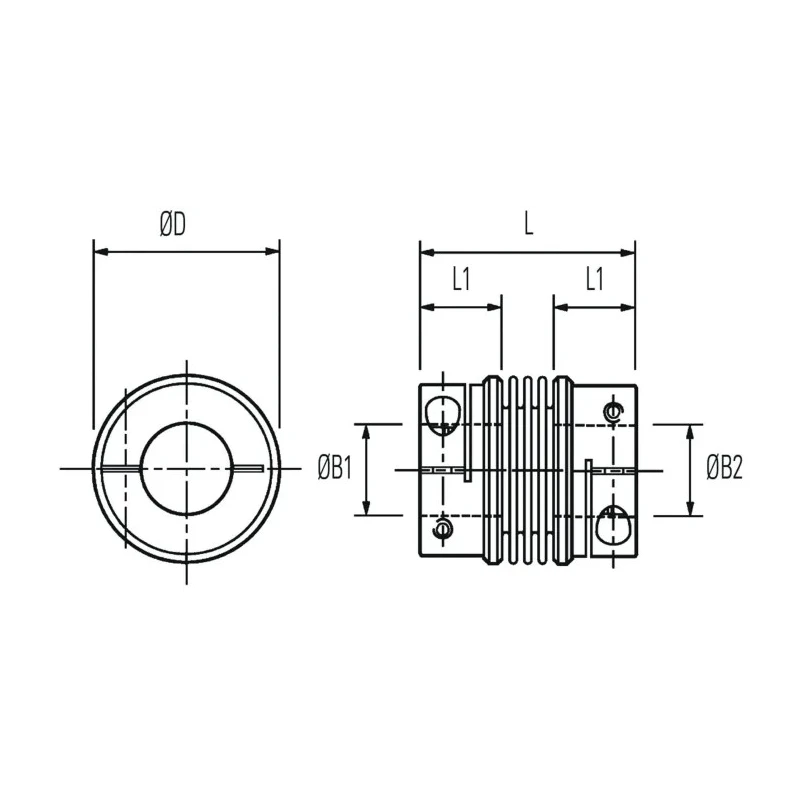

This compact coupler has a length of 23 mm and an outer diameter of 16 mm, making it an efficient solution where space constraints exist. It is manufactured in Germany, ensuring adherence to high-quality standards.

The clamp design supports quick and secure installation. High torsional stiffness aids dynamic positional accuracy. Low inertia supports high-speed servo drive performance. Suitable for precision machinery and automation systems.

Corrosion-resistant materials extend operational reliability. Accommodates minor misalignments to reduce mechanical stress. Compact size enables integration into tight mechanical assemblies. Operating temperature range suits broad industrial applications.

Made in Germany to stringent quality specifications. Explore EnvMart’s Mechanical Power Transmission Couplings for reliable, high-precision flexible coupler solutions suitable for industrial automation and manufacturing needs.
