Rose Aluminium Standard Series Die Cast Aluminium Enclosure IP66 IK09 98 mm x 64 mm x 98 mm 01061003

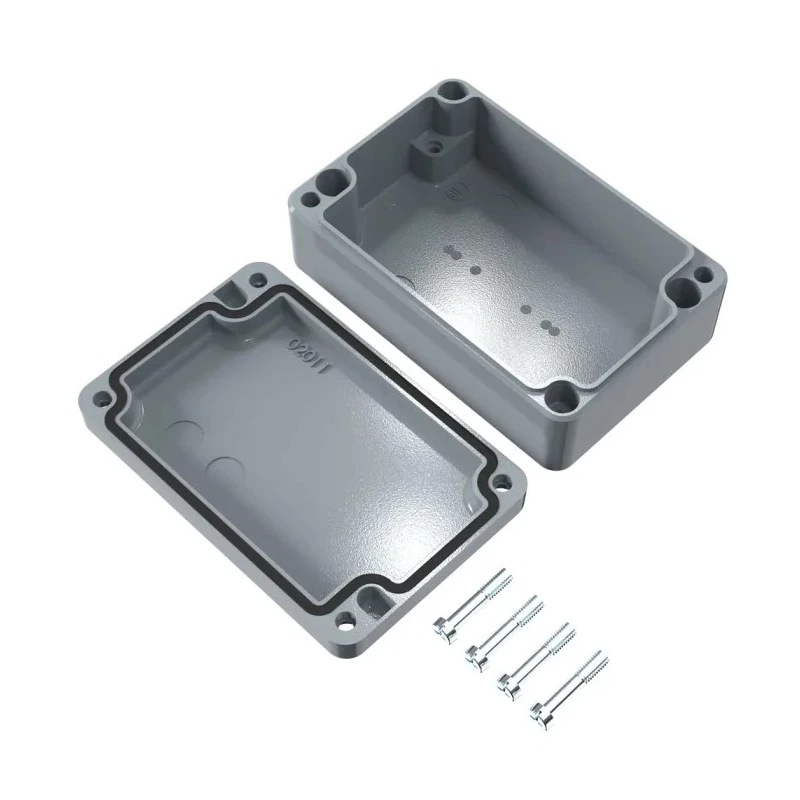

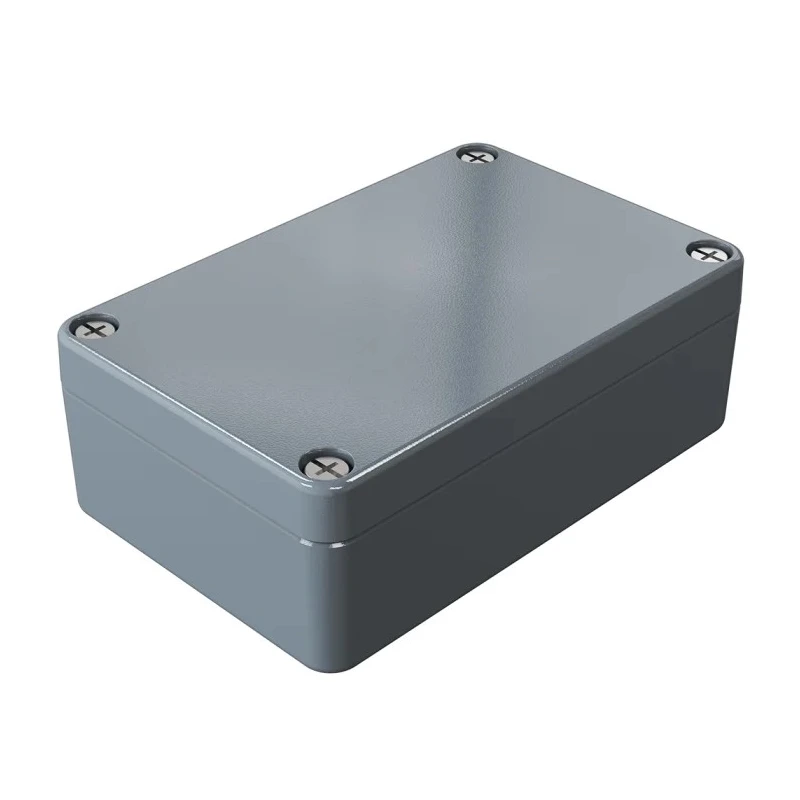

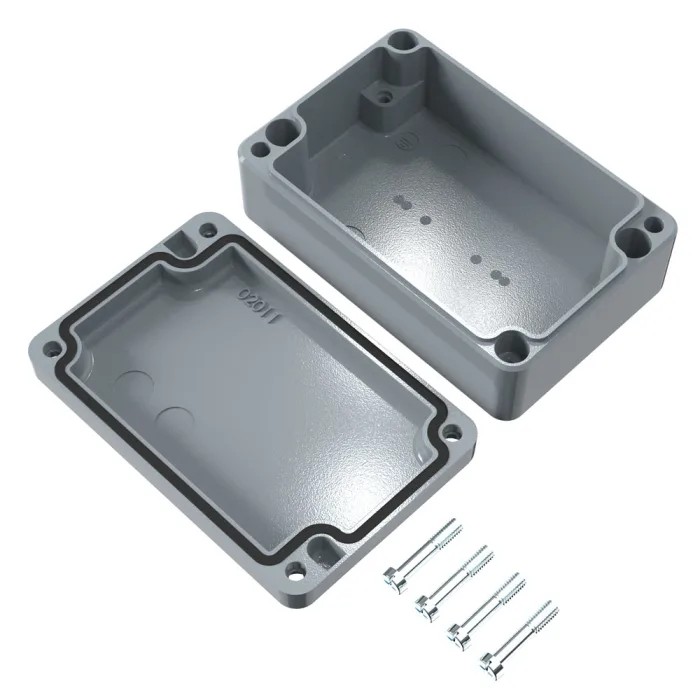

Rose 01061003 Aluminium Standard Series Die Cast Aluminium Enclosure offers a high-quality, corrosion-resistant housing solution for electronics and mechanical parts, featuring a die-cast aluminium body. This enclosure measures 98 mm in height, 64 mm in width, and 98 mm in length, with a compact form factor that fits small devices efficiently.

The unit boasts an IP66 ingress protection rating, making it dust-tight and resistant to powerful water jets, ideal for demanding outdoor and industrial environments. It also carries an IK09 impact protection rating, ensuring resistance to mechanical shocks and impacts.

A polyurethane gasket seals the enclosure tightly against contaminants, enhancing its robustness. The lid is secured by stainless steel captive screws to prevent tampering and unauthorized access, thus protecting critical components inside.

This enclosure is certified to UL508 standards and is approved for use in maritime hazardous areas, expanding its application scope. Its lightweight design, weighing only 200 grams, allows for easy installation and minimal stress on mounting structures.

The enclosure supports flexible mounting options, including DIN rail or mounting plate installations, providing versatility across applications such as cable management, traffic control systems, printed circuit boards, and power plants.

Constructed with die-cast aluminium for durability and corrosion resistance. Polyurethane gasket ensures protection from dust and water ingress. IP66 rating protects against dust and powerful water jets. IK09 rating provides resistance to mechanical impacts.

Includes tamper-proof stainless steel captive screws. Compact size suitable for small electronic components. Wide temperature range from -40°C to +90°C for diverse environments. Lightweight design at 200g facilitates easy mounting.

Certified to UL508 and suitable for maritime hazardous areas.

This Rose aluminium enclosure is ideal for industrial, laboratory, HVAC, manufacturing, and commercial applications requiring protection of sensitive equipment from harsh environmental conditions. Browse EnvMart's Electronics & Electricals category for more Electrical Enclosure solutions and industrial components.
