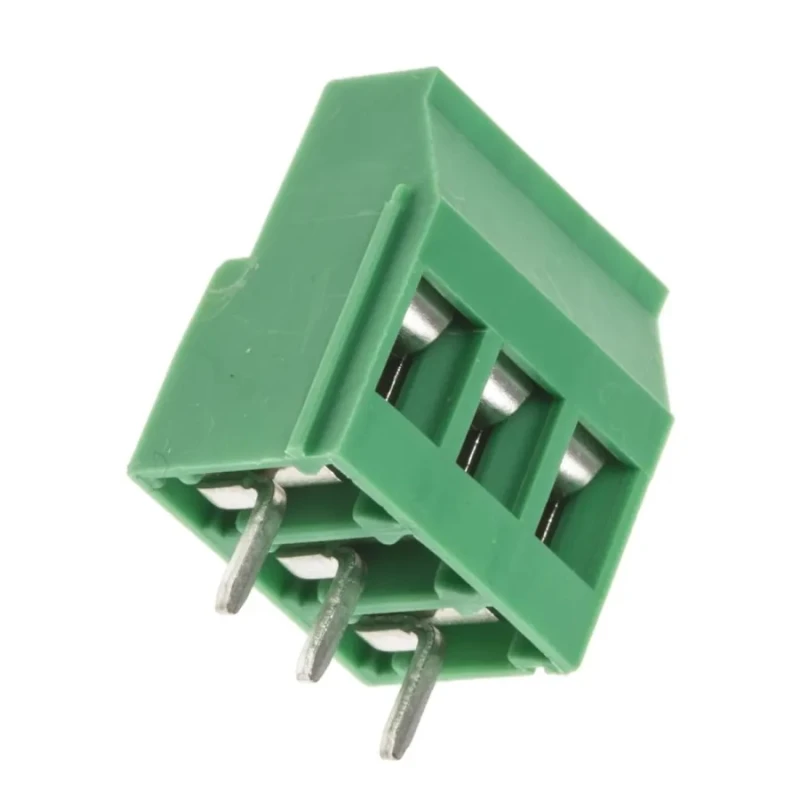

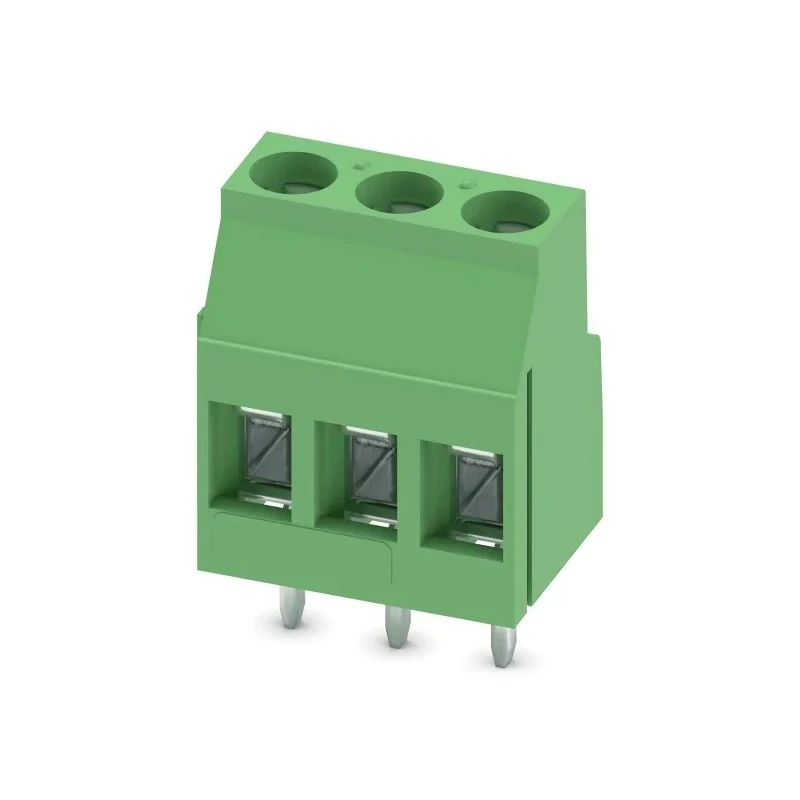

Phoenix Contact MKDS 3/3-5.08 Series Straight PCB Terminal Block, 3 Contacts, 5.08 mm Pitch, 24A, 630V 1711738
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 630V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 24A |
| Model | 1711738 |
| Series | MKDS 3/3-5.08 |
| Number of Rows | 1 |

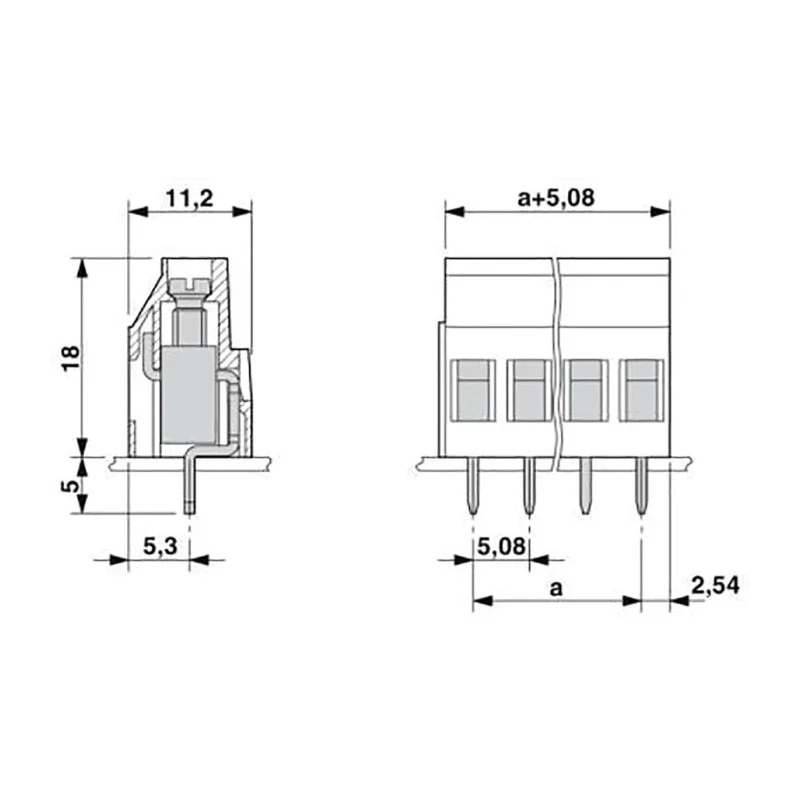

| Pitch | 5.08mm |
| Number of Contacts | 3 |
Key Features
- Supports up to three independent circuits with 3 contacts for versatile PCB integration.
- Features a 5.08 mm pitch for compatible PCB layouts and ease of soldering.
- Rated for a maximum current of 24A and a voltage of up to 630V for robust performance.
- Straight orientation enables straightforward mounting and wire access.
- Screw terminals with tension sleeves secure wires firmly and minimize accidental disconnects during vibration.
- Compatible with wire sizes from 24 AWG to 12 AWG, offering installation flexibility.
- UL 94-V0 rated material provides self-extinguishing safety in the event of fire.
- Operates reliably across temperatures from -40°C to +105°C, ensuring performance in challenging industrial environments.
Product Description
Phoenix Contact MKDS 3/3-5.08 Series Straight PCB Terminal Block, model 1711738, is engineered for demanding electronic and industrial applications. It serves as a high-quality connection solution for printed circuit boards, providing secure electrical contact for up to three circuits.
Featuring a pitch of 5.08 mm, the terminal block is well-suited for a wide range of PCB layouts, facilitating convenient soldering and alignment. With a straight orientation, installers benefit from direct wire routing and easy mounting.
This terminal block boasts a high load capacity, rated to 24A current and 630V voltage. Its screw-style terminals use tension sleeves to press conductors firmly against the busbar, ensuring solid electrical connections that survive vibration and handling. Wire ranges from 24 AWG to 12 AWG are accommodated, making it suitable for numerous wiring scenarios seen in commercial, industrial, and laboratory environments.
Manufactured from UL 94-V0 self-extinguishing material, the block meets stringent safety requirements for fire resistance. Its operational temperature spectrum, -40°C to +105°C, allows installation in diverse industrial contexts, from instrumentation panels to control systems.
Assembly is straightforward: simply insert the wires, tighten the screws, and solder the block to the PCB for robust performance. The terminal block is RoHS compliant, with approvals from UL (E60425) and CSA (LR13631), attesting to its quality and usability in regulated environments.
Industrial use cases include electronics manufacturing, industrial automation, laboratory instrumentation, medical devices, and HVAC controls, where dependable circuit connectivity is crucial.
Browse more PCB Terminal Blocks and Phoenix Contact industrial connectors in the EnvMart catalog for reliable connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MKDS 3/3-5.08 Series terminal block is rated for a maximum current of 24A and a voltage of up to 630V.
This model features a pitch size of 5.08 mm, suitable for various PCB layouts.
It supports up to three independent circuits with three contacts.
The terminal block accommodates wire sizes ranging from 24 AWG to 12 AWG, providing installation flexibility.
It operates reliably across a temperature range of -40°C to +105°C, making it suitable for challenging industrial environments.
This unit is manufactured from UL 94-V0 rated self-extinguishing material, ensuring fire safety.
Wires are secured using screw terminals with tension sleeves that press conductors firmly against the busbar, minimizing accidental disconnects.
The MKDS 3/3-5.08 Series terminal block features a straight orientation for straightforward mounting and wire access.
Yes, this terminal block is RoHS compliant, meeting environmental standards for hazardous substances.
It has approvals from UL (E60425) and CSA (LR13631), attesting to its quality and usability in regulated environments.
It is suitable for various applications including electronics manufacturing, industrial automation, laboratory instrumentation, medical devices, and HVAC controls.
The country of origin for this terminal block is Germany.
