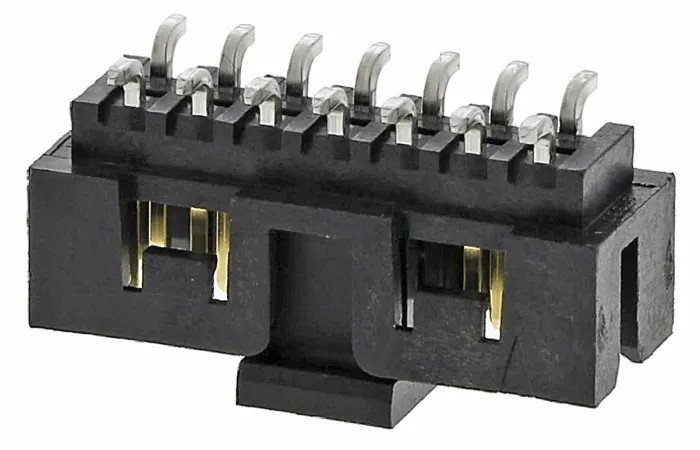

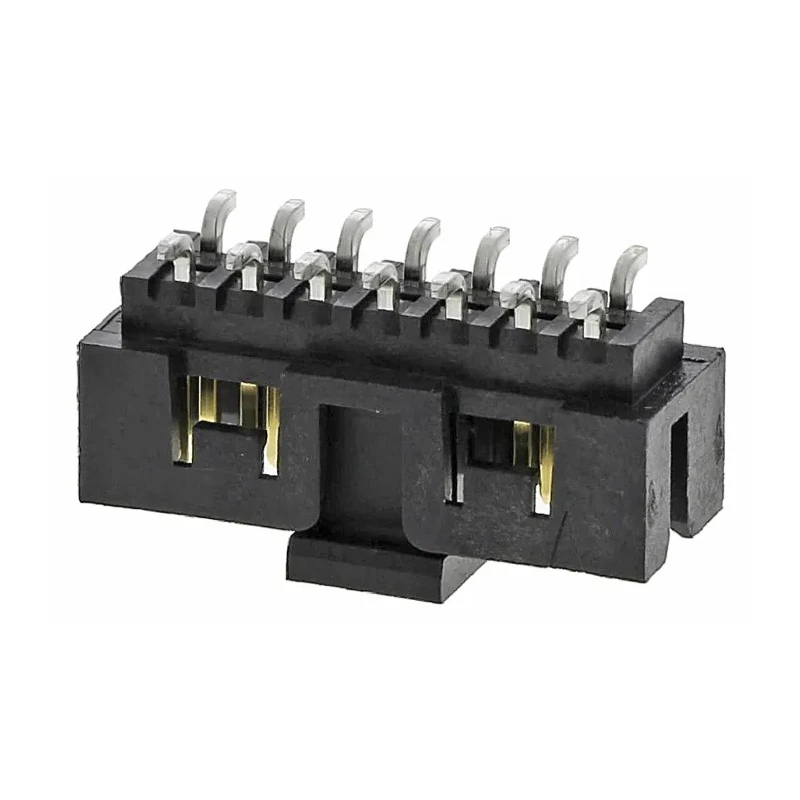

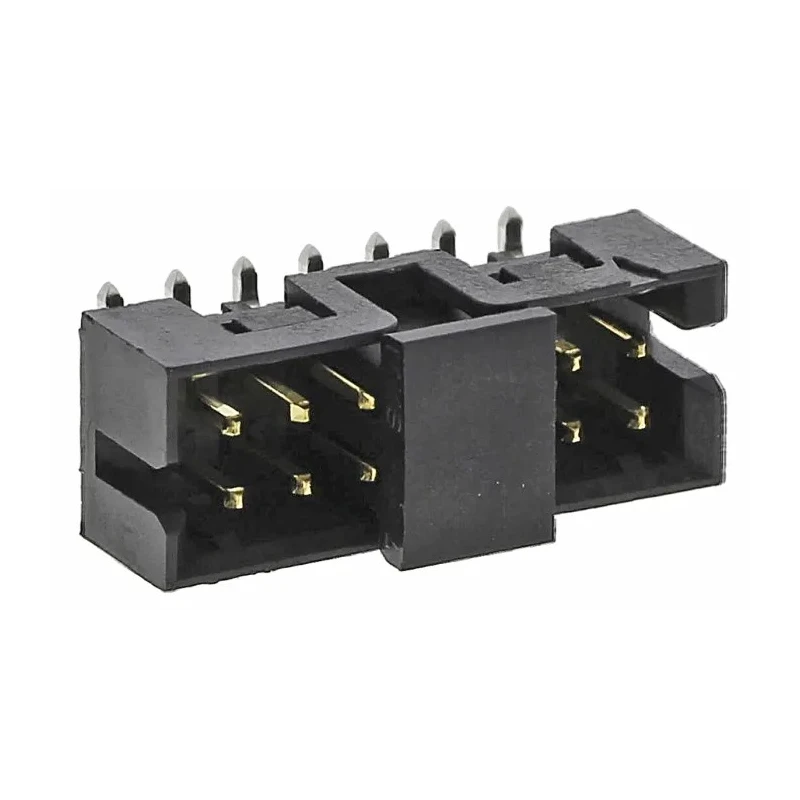

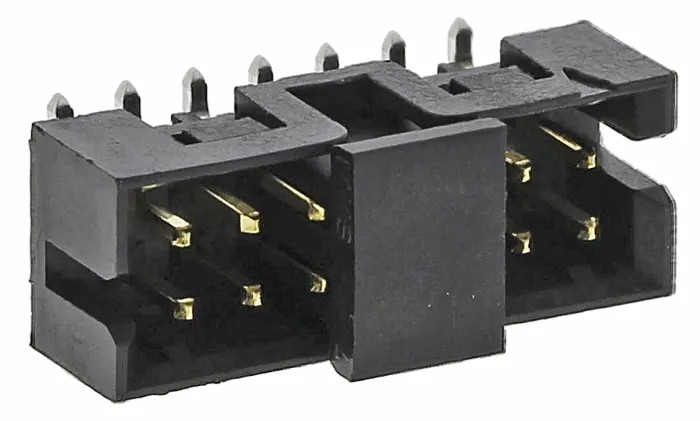

Molex Milli-Grid Series Straight Surface PCB Header, 14 Contacts, 2 mm Pitch, 2 Row, Shrouded 87832-1416
Specifications
| Country of Origin | Singapore |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | Milli-Grid |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 2mm |
Key Features
- The connector is shrouded for protection and enhanced reliability.
- It utilizes a wire-to-board connector system, ideal for PCB applications.
- Contacts are made of phosphor bronze with gold plating for durable conductivity.
- The housing is made from nylon, offering high durability and electrical insulation.
- Operating temperature ranges from -55°C to 105°C, suitable for varied environments.
- Designed for a maximum voltage of 125V and a current rating of 2A.
- Contact gender is male with a mating pin length of 2 mm.
- Termination is by solder, ensuring solid and stable connection.
Product Description
The Molex 87832-1416 Milli-Grid Series Straight Surface PCB Header is a high-density, shrouded connector designed for wire-to-board applications, featuring 14 male contacts arranged in two rows with a 2 mm pitch between contacts. It is engineered for secure surface mounting on printed circuit boards (PCBs) and complies with robust industrial standards.
Constructed with a durable nylon housing and phosphor bronze contacts plated with 0.38 µm gold, this PCB header offers reliable electrical performance and excellent corrosion resistance. The connector supports a continuous current rating of 2 amperes at a voltage up to 125 volts, making it suitable for moderate power electronic applications.
Operating temperature ranges from -55°C to 105°C, ensuring stable function in harsh and variable environmental conditions commonly encountered in industrial, manufacturing, and electronic assembly sectors.
The 2 mm pitch and 2-row configuration allow for compact layouts on PCBs, optimizing space without compromising connectivity integrity. The connector is designed to mate with 51110 series receptacles (typical stock number 670-3588) for versatile system integration.
This Molex header is ideal for use in electronic design, manufacturing, instrumentation, and telecommunications industries, providing dependable connectivity solutions. Precise gold plating and solder termination promote long service life and secure electrical contacts, reducing maintenance requirements and enhancing system uptime.
The connector's shrouded design protects contacts from damage and misalignment during assembly. Phosphor bronze contact material combined with gold plating ensures excellent conductivity and durability. The nylon housing offers mechanical strength and electrical insulation.
Surface mount technology facilitates efficient automated PCB assembly. Designed for reliable performance in diverse industrial and electronic applications.
Manufactured in Singapore under stringent quality controls, the Molex 87832-1416 meets demanding reliability and performance standards. It is a dependable component suited for integration in commercial and industrial electronic systems.
Explore our extensive range of PCB Headers and connectors at EnvMart to find compatible components and enhance your electronic designs with trusted industrial-grade parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB header is 125V.
This model has a continuous current rating of 2A.
The contacts are made of phosphor bronze with gold plating, while the housing is constructed from nylon.
It operates within a temperature range of -55°C to 105°C.
This connector features 14 male contacts arranged in two rows.
The pitch size of this header is 2 mm.
This unit uses solder termination for secure connections.
Yes, it is designed for surface mounting on printed circuit boards (PCBs).
It utilizes a wire-to-board connector system.
This model is designed to mate with 51110 series receptacles.
It is manufactured in Singapore under stringent quality controls.
The contact gender is male.
